Matrix: Mallya/lhr14c

Description: Light hydrocarbon recovery, corrected version of LHR14

Mallya/lhr14c graph Mallya/lhr14c graph
(bipartite graph drawing) (graph drawing of A+A')


Mallya/lhr14c dmperm of Mallya/lhr14c

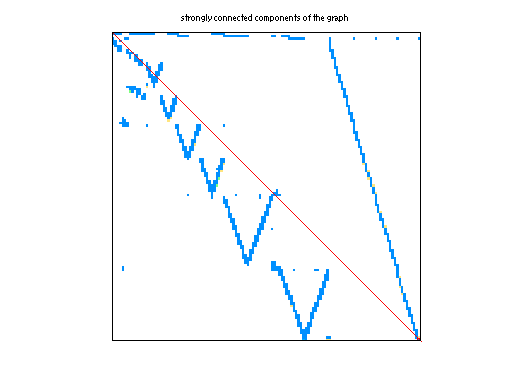

scc of Mallya/lhr14c

  • Home page of the UF Sparse Matrix Collection
  • Matrix group: Mallya
  • Click here for a description of the Mallya group.
  • Click here for a list of all matrices
  • Click here for a list of all matrix groups
  • download as a MATLAB mat-file, file size: 2 MB. Use UFget(745) or UFget('Mallya/lhr14c') in MATLAB.
  • download in Matrix Market format, file size: 3 MB.
  • download in Rutherford/Boeing format, file size: 2 MB.

    Matrix properties
    number of rows14,270
    number of columns14,270
    nonzeros307,858
    structural full rank?yes
    structural rank14,270
    # of blocks from dmperm1,556
    # strongly connected comp.31
    explicit zero entries0
    nonzero pattern symmetry 1%
    numeric value symmetry 0%
    typereal
    structureunsymmetric
    Cholesky candidate?no
    positive definite?no

    authorJ. Mallya
    editorT. Davis
    date1997
    kindchemical process simulation problem
    2D/3D problem?no

    Ordering statistics:result
    nnz(chol(P*(A+A'+s*I)*P')) with AMD20,564,513
    Cholesky flop count8.0e+10
    nnz(L+U), no partial pivoting, with AMD41,114,756
    nnz(V) for QR, upper bound nnz(L) for LU, with COLAMD633,737
    nnz(R) for QR, upper bound nnz(U) for LU, with COLAMD1,310,622

    SVD-based statistics:
    norm(A)19.9134
    min(svd(A))4.94008e-14
    cond(A)4.03098e+14
    rank(A)14,267
    sprank(A)-rank(A)3
    null space dimension3
    full numerical rank?no
    singular value gap4.56844

    singular values (MAT file):click here
    SVD method used:s = svd (full (A)) ;
    status:ok

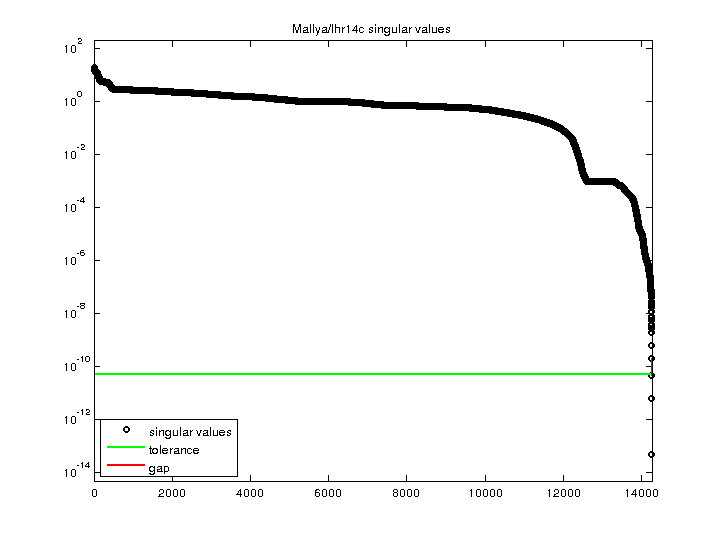

    Mallya/lhr14c svd

    For a description of the statistics displayed above, click here.

    Maintained by Tim Davis, last updated 12-Mar-2014.
    Matrix pictures by cspy, a MATLAB function in the CSparse package.
    Matrix graphs by Yifan Hu, AT&T Labs Visualization Group.
