Matrix: Mallya/lhr11

Description: Light hydrocarbon recovery. OK if illconditioned,from a nonlinear solvr

Mallya/lhr11 graph Mallya/lhr11 graph
(bipartite graph drawing) (graph drawing of A+A')

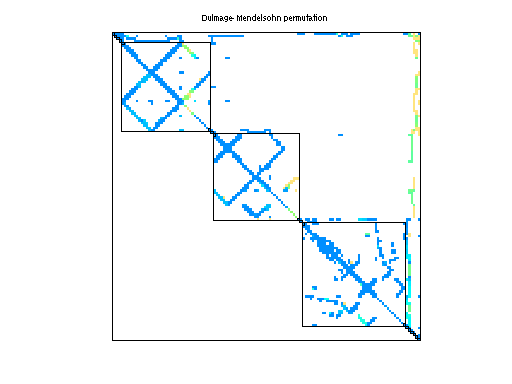

Mallya/lhr11 dmperm of Mallya/lhr11

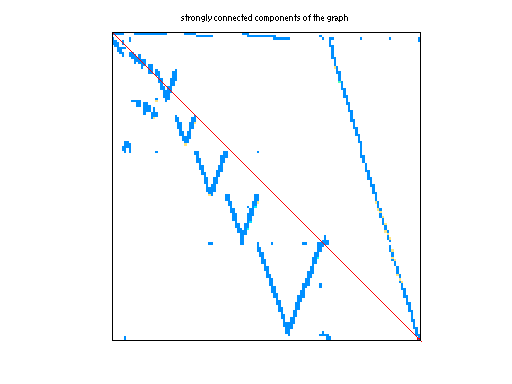

scc of Mallya/lhr11

  • Home page of the UF Sparse Matrix Collection
  • Matrix group: Mallya
  • Click here for a description of the Mallya group.
  • Click here for a list of all matrices
  • Click here for a list of all matrix groups
  • download as a MATLAB mat-file, file size: 2 MB. Use UFget(742) or UFget('Mallya/lhr11') in MATLAB.
  • download in Matrix Market format, file size: 2 MB.
  • download in Rutherford/Boeing format, file size: 2 MB.

    Matrix properties
    number of rows10,964
    number of columns10,964
    nonzeros231,806
    structural full rank?yes
    structural rank10,964
    # of blocks from dmperm1,200
    # strongly connected comp.31
    explicit zero entries1,935
    nonzero pattern symmetry 1%
    numeric value symmetry 0%
    typereal
    structureunsymmetric
    Cholesky candidate?no
    positive definite?no

    authorJ. Mallya
    editorT. Davis
    date1994
    kindchemical process simulation problem
    2D/3D problem?no

    Additional fieldssize and type
    bfull 10964-by-1

    Ordering statistics:result
    nnz(chol(P*(A+A'+s*I)*P')) with AMD12,384,800
    Cholesky flop count3.6e+10
    nnz(L+U), no partial pivoting, with AMD24,758,636
    nnz(V) for QR, upper bound nnz(L) for LU, with COLAMD411,929
    nnz(R) for QR, upper bound nnz(U) for LU, with COLAMD964,310

    Note that all matrix statistics (except nonzero pattern symmetry) exclude the 1935 explicit zero entries.

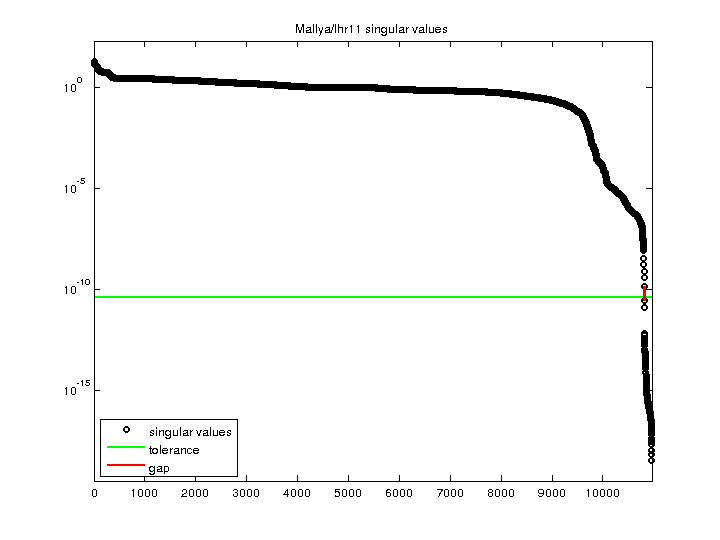

    SVD-based statistics:
    norm(A)19.9128
    min(svd(A))3.10405e-19
    cond(A)6.41509e+19
    rank(A)10,810
    sprank(A)-rank(A)154
    null space dimension154
    full numerical rank?no
    singular value gap5.06444

    singular values (MAT file):click here
    SVD method used:s = svd (full (A)) ;
    status:ok

    Mallya/lhr11 svd

    For a description of the statistics displayed above, click here.
