Description: Netlib LP problem vol1: minimize c'*x, where Ax=b, lo<=x<=hi
|(bipartite graph drawing)|
|number of rows||323|
|number of columns||464|
|structural full rank?||yes|
|# of blocks from dmperm||13|
|# strongly connected comp.||1|
|explicit zero entries||0|
|nonzero pattern symmetry||0%|
|numeric value symmetry||0%|
|kind||linear programming problem|
|Additional fields||size and type|
An infeasible Netlib LP problem, in lp/infeas. For more information send email to email@example.com with the message: send index from lp send readme from lp/infeas The lp/infeas directory contains infeasible linear programming test problems collected by John W. Chinneck, Carleton Univ, Ontario Canada. The following are relevant excerpts from lp/infeas/readme (by John W. Chinneck): In the following, IIS stands for Irreducible Infeasible Subsystem, a set of constraints which is itself infeasible, but becomes feasible when any one member is removed. Isolating an IIS from within the larger set of constraints defining the model is one analysis approach. PROBLEM DESCRIPTION ------------------- CHEMCOM, QUAL, REFINERY, REACTOR, VOL1: medium size problems derived from a petrochemical plant model. Doctored to generate infeasibility due to inability to meet volume or quality restrictions. With the exception of REACTOR, these are highly volatile problems, yielding IISs of varying sizes when different IIS isolation algorithms are applied. See Chinneck  for further discussion. Contributor: Tom Baker, Chesapeake Decision Sciences. Name Rows Cols Nonzeros Bounds Notes vol1 324 464 1714 B FX REFERENCES ---------- J.W. Chinneck (1993). "Finding the Most Useful Subset of Constraints for Analysis in an Infeasible Linear Program", technical report SCE-93-07, Systems and Computer Engineering, Carleton University, Ottawa, Canada.
|nnz(V) for QR, upper bound nnz(L) for LU, with COLAMD||14,310|
|nnz(R) for QR, upper bound nnz(U) for LU, with COLAMD||5,067|
|null space dimension||0|
|full numerical rank?||yes|

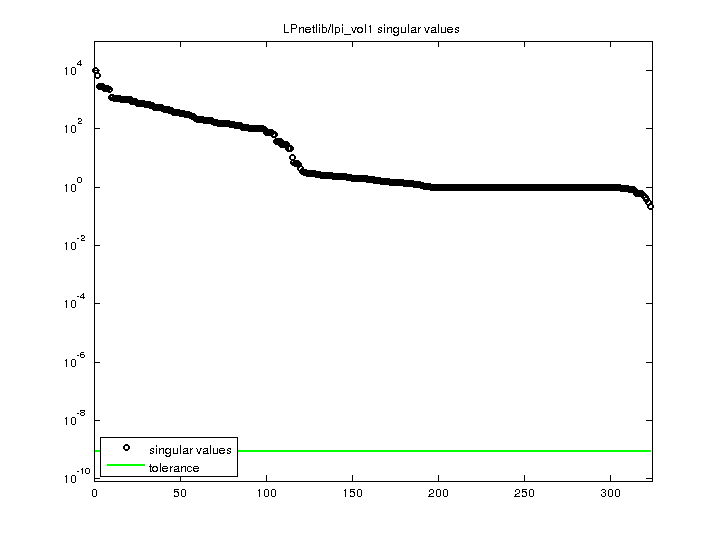

|singular values (MAT file):||click here|
|SVD method used:||s = svd (full (A)) ;|
