Matrix: LPnetlib/lpi_klein3

Description: Netlib LP problem klein3: minimize c'*x, where Ax=b, lo<=x<=hi

LPnetlib/lpi_klein3 graph
(bipartite graph drawing)

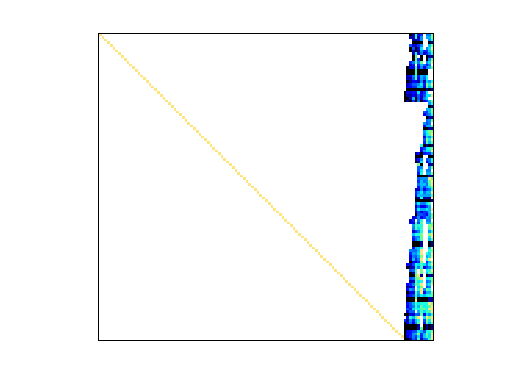

LPnetlib/lpi_klein3

  • Home page of the UF Sparse Matrix Collection
  • Matrix group: LPnetlib
  • Click here for a description of the LPnetlib group.
  • Click here for a list of all matrices
  • Click here for a list of all matrix groups
  • download as a MATLAB mat-file, file size: 27 KB. Use UFget(723) or UFget('LPnetlib/lpi_klein3') in MATLAB.
  • download in Matrix Market format, file size: 46 KB.
  • download in Rutherford/Boeing format, file size: 26 KB.

    Matrix properties
    number of rows994
    number of columns1,082
    nonzeros13,101
    structural full rank?yes
    structural rank994
    # of blocks from dmperm1
    # strongly connected comp.1
    explicit zero entries0
    nonzero pattern symmetry 0%
    numeric value symmetry 0%
    typeinteger
    structurerectangular
    Cholesky candidate?no
    positive definite?no

    authorE. Klotz
    editorJ. Chinneck
    date
    kindlinear programming problem
    2D/3D problem?no

    Additional fieldssize and type
    bfull 994-by-1
    cfull 1082-by-1
    lofull 1082-by-1
    hifull 1082-by-1
    z0full 1-by-1

    Notes:

    An infeasible Netlib LP problem, in lp/infeas.  For more information
    send email to netlib@ornl.gov with the message:

    	send index from lp
    	send readme from lp/infeas

    The lp/infeas directory contains infeasible linear programming test problems
    collected by John W. Chinneck, Carleton Univ, Ontario Canada.  The following
    are relevant excerpts from lp/infeas/readme (by John W. Chinneck):

    PROBLEM DESCRIPTION
    -------------------

    KLEIN1, KLEIN2, KLEIN3:  related small and medium size problems.
    Contributor:  Ed Klotz, CPLEX Optimization Inc.

    Name       Rows   Cols   Nonzeros Bounds      Notes
    klein3      995     88    12107



    Ordering statistics:result
    nnz(V) for QR, upper bound nnz(L) for LU, with COLAMD61,201
    nnz(R) for QR, upper bound nnz(U) for LU, with COLAMD339,304

    SVD-based statistics:
    norm(A)11421.3
    min(svd(A))1
    cond(A)11421.3
    rank(A)994
    sprank(A)-rank(A)0
    null space dimension0
    full numerical rank?yes

    singular values (MAT file):click here
    SVD method used:s = svd (full (A)) ;
    status:ok

    LPnetlib/lpi_klein3 svd
