Description: Netlib LP problem sc50b: minimize c'*x, where Ax=b, lo<=x<=hi
|(bipartite graph drawing)|
|number of rows||50|
|number of columns||78|
|structural full rank?||yes|
|# of blocks from dmperm||3|
|# strongly connected comp.||3|
|explicit zero entries||0|
|nonzero pattern symmetry||0%|
|numeric value symmetry||0%|
|kind||linear programming problem|
|Additional fields||size and type|
A Netlib LP problem, in lp/data. For more information send email to firstname.lastname@example.org with the message: send index from lp send readme from lp/data The following are relevant excerpts from lp/data/readme (by David M. Gay): The column and nonzero counts in the PROBLEM SUMMARY TABLE below exclude slack and surplus columns and the right-hand side vector, but include the cost row. We have omitted other free rows and all but the first right-hand side vector, as noted below. The byte count is for the MPS compressed file; it includes a newline character at the end of each line. These files start with a blank initial line intended to prevent mail programs from discarding any of the data. The BR column indicates whether a problem has bounds or ranges: B stands for "has bounds", R for "has ranges". The optimal value is from MINOS version 5.3 (of Sept. 1988) running on a VAX with default options. PROBLEM SUMMARY TABLE Name Rows Cols Nonzeros Bytes BR Optimal Value SC50B 51 48 119 1567 -7.0000000000E+01 Nick Gould supplied SC50A from the Harwell collection of LP test problems. When included in Netlib: Cost coefficients negated. Added to Netlib on 6 April 1989
|nnz(V) for QR, upper bound nnz(L) for LU, with COLAMD||506|
|nnz(R) for QR, upper bound nnz(U) for LU, with COLAMD||242|
|null space dimension||0|
|full numerical rank?||yes|

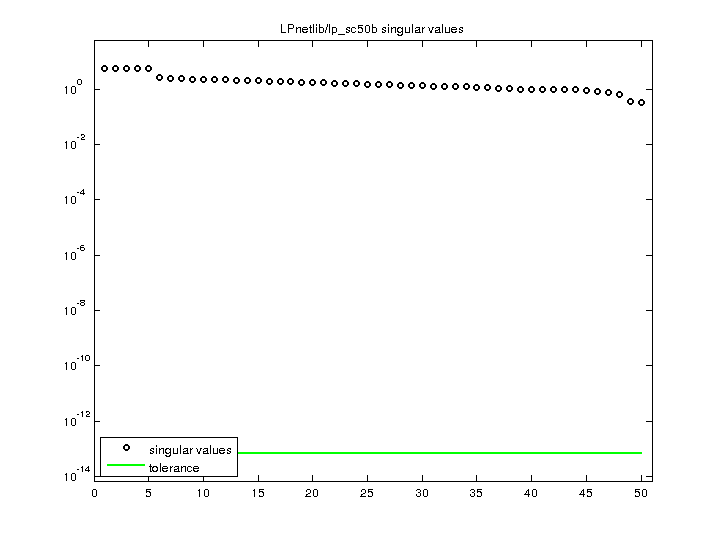

|singular values (MAT file):||click here|
|SVD method used:||s = svd (full (A)) ;|
For a description of the statistics displayed above, click here.
Maintained by Tim Davis, last updated 12-Mar-2014.
Matrix pictures by cspy, a MATLAB function in the CSparse package.
Matrix graphs by Yifan Hu, AT&T Labs Visualization Group.
