Matrix: LPnetlib/lp_pilot_we

Description: Netlib LP problem pilot_we: minimize c'*x, where Ax=b, lo<=x<=hi

LPnetlib/lp_pilot_we graph
(bipartite graph drawing)


LPnetlib/lp_pilot_we

  • Home page of the UF Sparse Matrix Collection
  • Matrix group: LPnetlib
  • Click here for a description of the LPnetlib group.
  • Click here for a list of all matrices
  • Click here for a list of all matrix groups
  • download as a MATLAB mat-file, file size: 52 KB. Use UFget(658) or UFget('LPnetlib/lp_pilot_we') in MATLAB.
  • download in Matrix Market format, file size: 48 KB.
  • download in Rutherford/Boeing format, file size: 40 KB.

    Matrix properties
    number of rows722
    number of columns2,928
    nonzeros9,265
    structural full rank?yes
    structural rank722
    # of blocks from dmperm1
    # strongly connected comp.1
    explicit zero entries0
    nonzero pattern symmetry 0%
    numeric value symmetry 0%
    typereal
    structurerectangular
    Cholesky candidate?no
    positive definite?no

    authorStanford
    editorR. Fourer
    date
    kindlinear programming problem
    2D/3D problem?no

    Additional fieldssize and type
    bfull 722-by-1
    cfull 2928-by-1
    lofull 2928-by-1
    hifull 2928-by-1
    z0full 1-by-1

    Notes:

    A Netlib LP problem, in lp/data.  For more information
    send email to netlib@ornl.gov with the message:

    	 send index from lp
    	 send readme from lp/data

    The following are relevant excerpts from lp/data/readme (by David M. Gay):

    The column and nonzero counts in the PROBLEM SUMMARY TABLE below exclude
    slack and surplus columns and the right-hand side vector, but include
    the cost row.  We have omitted other free rows and all but the first
    right-hand side vector, as noted below.  The byte count is for the
    MPS compressed file; it includes a newline character at the end of each
    line.  These files start with a blank initial line intended to prevent
    mail programs from discarding any of the data.  The BR column indicates
    whether a problem has bounds or ranges:  B stands for "has bounds", R
    for "has ranges".  The BOUND-TYPE TABLE below shows the bound types
    present in those problems that have bounds.

    The optimal value is from MINOS version 5.3 (of Sept. 1988)
    running on a VAX with default options.

                           PROBLEM SUMMARY TABLE

    Name       Rows   Cols   Nonzeros    Bytes  BR      Optimal Value
    PILOT.WE    723   2789     9218      79972  B    -2.7201027439E+06

            BOUND-TYPE TABLE
    PILOT.WE   UP LO FX FR

    Supplied by Bob Fourer.
    When included in Netlib: Cost coefficients negated.

    Bob Bixby reports that the CPLEX solver (running on a Sparc station)
    finds slightly different optimal values for some of the problems.
    On a MIPS processor, MINOS version 5.3 (with crash and scaling of
    December 1989) also finds different optimal values for some of the
    problems.  The following table shows the values that differ from those
    shown above.  (Whether CPLEX finds different values on the recently
    added problems remains to be seen.)

    Problem        CPLEX(Sparc)          MINOS(MIPS)
    PILOT.WE    -2.7201075328E+06    -2.7201042967E+06

    Source for PILOT.JA, PILOT.WE, PILOT4, PILOTNOV: Systems Optimization
    Laboratory, Stanford University.


    Ordering statistics:result
    nnz(V) for QR, upper bound nnz(L) for LU, with COLAMD284,871
    nnz(R) for QR, upper bound nnz(U) for LU, with COLAMD20,168

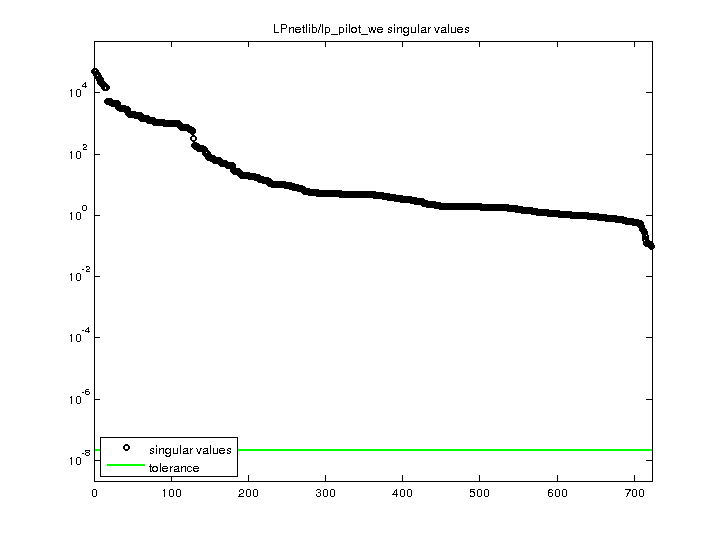

    SVD-based statistics:
    norm(A)48757.5
    min(svd(A))0.0924044
    cond(A)527654
    rank(A)722
    sprank(A)-rank(A)0
    null space dimension0
    full numerical rank?yes

    singular values (MAT file):click here
    SVD method used:s = svd (full (A)) ;
    status:ok

    LPnetlib/lp_pilot_we svd

    For a description of the statistics displayed above, click here.
