Matrix: LPnetlib/lp_ken_18

Description: Netlib LP problem ken_18: minimize c'*x, where Ax=b, lo<=x<=hi

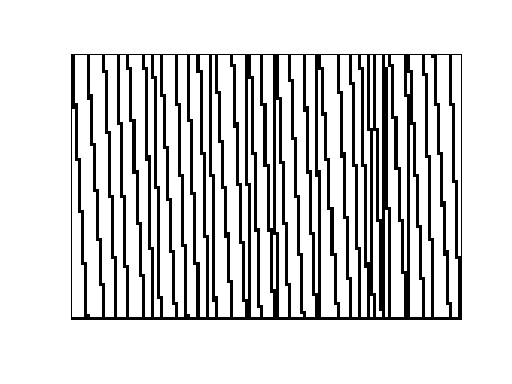

LPnetlib/lp_ken_18 graph
(bipartite graph drawing)

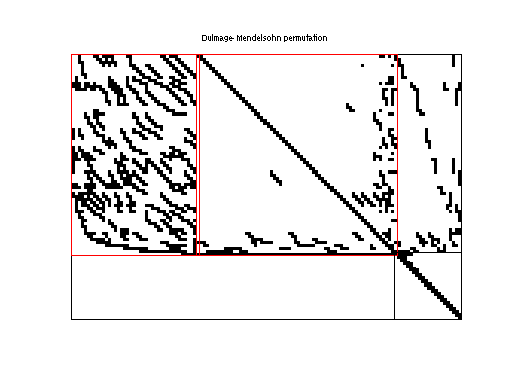

LPnetlib/lp_ken_18 dmperm of LPnetlib/lp_ken_18

  • Home page of the UF Sparse Matrix Collection
  • Matrix group: LPnetlib
  • Click here for a description of the LPnetlib group.
  • Click here for a list of all matrices
  • Click here for a list of all matrix groups
  • download as a MATLAB mat-file, file size: 1 MB. Use UFget(640) or UFget('LPnetlib/lp_ken_18') in MATLAB.
  • download in Matrix Market format, file size: 2 MB.
  • download in Rutherford/Boeing format, file size: 2 MB.

    Matrix properties
    number of rows105,127
    number of columns154,699
    nonzeros358,171
    structural full rank?yes
    structural rank105,127
    # of blocks from dmperm26,266
    # strongly connected comp.1
    explicit zero entries0
    nonzero pattern symmetry 0%
    numeric value symmetry 0%
    typeinteger
    structurerectangular
    Cholesky candidate?no
    positive definite?no

    authorJ. Kennington
    editorD. Gay
    date1991
    kindlinear programming problem
    2D/3D problem?no

    Additional fieldssize and type
    bfull 105127-by-1
    cfull 154699-by-1
    lofull 154699-by-1
    hifull 154699-by-1
    z0full 1-by-1

    Notes:

    A Netlib LP problem, in lp/data/kennington.  For more information
    send email to netlib@ornl.gov with the message:

    	 send index from lp
    	 send readme from lp/data
    	 send readme from lp/data/kennington

    The following are relevant excerpts from lp/data/kennington/readme:

    The "Kennington" problems: sixteen problems described in "An Empirical
    Evaluation of the KORBX Algorithms for Military Airlift Applications"
    by W. J. Carolan, J. E. Hill, J. L. Kennington, S. Niemi, S. J.
    Wichmann (Operations Research vol. 38, no. 2 (1990), pp. 240-248).

    The following table gives some statistics for the "Kennington"
    problems.  The number of columns excludes slacks and surpluses.
    The bounds column tells how many entries appear in the BOUNDS
    section of the MPS file.  The mpc column shows the bytes in
    the problem after "uncompress" and before "emps"; MPS shows
    the bytes after "emps".  The optimal values were computed by
    Vanderbei's ALPO, running on an SGI computer (with binary IEEE
    arithmetic).

    Name       rows  columns  nonzeros  bounds      mpc      MPS     optimal value
    KEN-18   105128  154699    512719   309398   7138893  29855000  -5.2217025e+10

    Submitted to Netlib by Irv Lustig.



    Ordering statistics:result
    nnz(V) for QR, upper bound nnz(L) for LU, with COLAMD13,119,543
    nnz(R) for QR, upper bound nnz(U) for LU, with COLAMD2,229,341

    For a description of the statistics displayed above, click here.
