Matrix: LPnetlib/lp_kb2

Description: Netlib LP problem kb2: minimize c'*x, where Ax=b, lo<=x<=hi

LPnetlib/lp_kb2 graph
(bipartite graph drawing)


LPnetlib/lp_kb2

  • Home page of the UF Sparse Matrix Collection
  • Matrix group: LPnetlib
  • Click here for a description of the LPnetlib group.
  • Click here for a list of all matrices
  • Click here for a list of all matrix groups
  • download as a MATLAB mat-file, file size: 3 KB. Use UFget(636) or UFget('LPnetlib/lp_kb2') in MATLAB.
  • download in Matrix Market format, file size: 3 KB.
  • download in Rutherford/Boeing format, file size: 3 KB.

    Matrix properties
    number of rows43
    number of columns68
    nonzeros313
    structural full rank?yes
    structural rank43
    # of blocks from dmperm1
    # strongly connected comp.1
    explicit zero entries0
    nonzero pattern symmetry 0%
    numeric value symmetry 0%
    typereal
    structurerectangular
    Cholesky candidate?no
    positive definite?no

    authorJ. Tomlin
    editorD. Gay
    date1989
    kindlinear programming problem
    2D/3D problem?no

    Additional fieldssize and type
    bfull 43-by-1
    cfull 68-by-1
    lofull 68-by-1
    hifull 68-by-1
    z0full 1-by-1

    Notes:

    A Netlib LP problem, in lp/data.  For more information
    send email to netlib@ornl.gov with the message:

    	 send index from lp
    	 send readme from lp/data

    The following are relevant excerpts from lp/data/readme (by David M. Gay):

    The column and nonzero counts in the PROBLEM SUMMARY TABLE below exclude
    slack and surplus columns and the right-hand side vector, but include
    the cost row.  We have omitted other free rows and all but the first
    right-hand side vector, as noted below.  The byte count is for the
    MPS compressed file; it includes a newline character at the end of each
    line.  These files start with a blank initial line intended to prevent
    mail programs from discarding any of the data.  The BR column indicates
    whether a problem has bounds or ranges:  B stands for "has bounds", R
    for "has ranges".  The BOUND-TYPE TABLE below shows the bound types
    present in those problems that have bounds.

    The optimal value is from MINOS version 5.3 (of Sept. 1988)
    running on a VAX with default options.

                           PROBLEM SUMMARY TABLE

    Name       Rows   Cols   Nonzeros    Bytes  BR      Optimal Value
    KB2          44     41      291       2526  B    -1.7499001299E+03

            BOUND-TYPE TABLE
    KB2        UP

    Empty RHS section.

    From John Tomlin.
    On the problems supplied by John Tomlin, MINOS 5.3 reports that about
    10% to 57% of its steps are degenerate:
         Name     Steps  Degen  Percent
         KB2         82     29   35.37

    Added to Netlib on  27 June 1989


    Ordering statistics:result
    nnz(V) for QR, upper bound nnz(L) for LU, with COLAMD692
    nnz(R) for QR, upper bound nnz(U) for LU, with COLAMD503

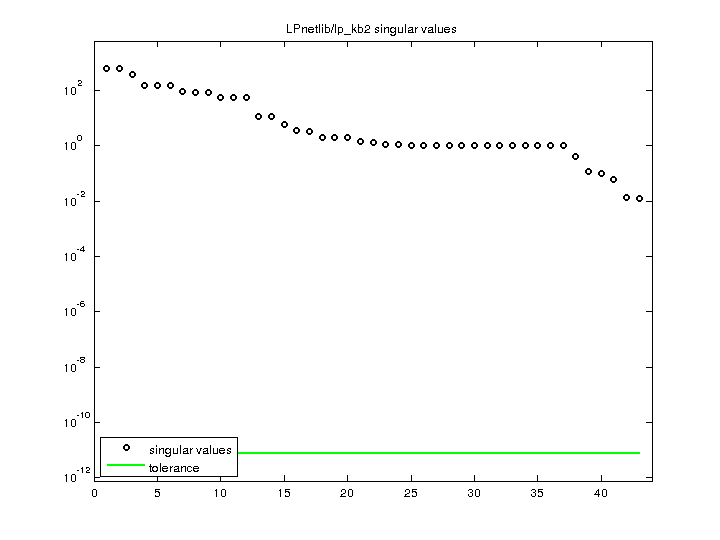

    SVD-based statistics:
    norm(A)624.292
    min(svd(A))0.0123397
    cond(A)50592
    rank(A)43
    sprank(A)-rank(A)0
    null space dimension0
    full numerical rank?yes

    singular values (MAT file):click here
    SVD method used:s = svd (full (R)) ; where [~,R,E] = spqr (A') with droptol of zero
    status:ok

    LPnetlib/lp_kb2 svd

    For a description of the statistics displayed above, click here.

    Maintained by Tim Davis, last updated 12-Mar-2014.
    Matrix pictures by cspy, a MATLAB function in the CSparse package.
    Matrix graphs by Yifan Hu, AT&T Labs Visualization Group.
