Matrix: Kamvar/Stanford_Berkeley

Description: Sep Kamvar. Stanford-Berkeley web. aij=1 is link from page j to page i

Kamvar/Stanford_Berkeley graph Kamvar/Stanford_Berkeley graph
(bipartite graph drawing) (graph drawing of A+A')

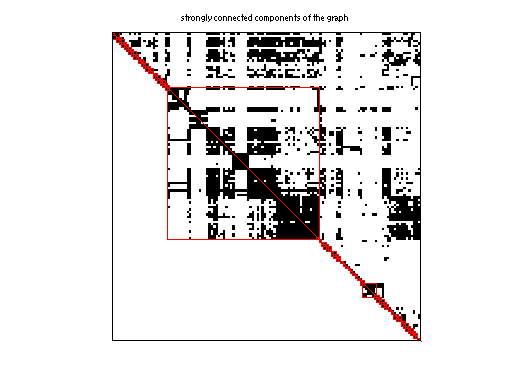

scc of Kamvar/Stanford_Berkeley

  • Home page of the UF Sparse Matrix Collection
  • Matrix group: Kamvar
  • Click here for a description of the Kamvar group.
  • Click here for a list of all matrices
  • Click here for a list of all matrix groups
  • download as a MATLAB mat-file, file size: 5 MB. Use UFget(980) or UFget('Kamvar/Stanford_Berkeley') in MATLAB.
  • download in Matrix Market format, file size: 18 MB.
  • download in Rutherford/Boeing format, file size: 7 MB.

    Matrix properties
    number of rows683,446
    number of columns683,446
    # strongly connected comp.109,238
    explicit zero entries0
    nonzero pattern symmetry 25%
    numeric value symmetry 25%
    Cholesky candidate?no
    positive definite?no

    authorS. Kamvar
    editorT. Davis
    kinddirected graph
    2D/3D problem?no

    Additional fieldssize and type
    rootsfull 466-by-1
    rootnamefull 466-by-39

    For a description of the statistics displayed above, click here.

    Maintained by Tim Davis, last updated 12-Mar-2014.
    Matrix pictures by cspy, a MATLAB function in the CSparse package.
    Matrix graphs by Yifan Hu, AT&T Labs Visualization Group.
