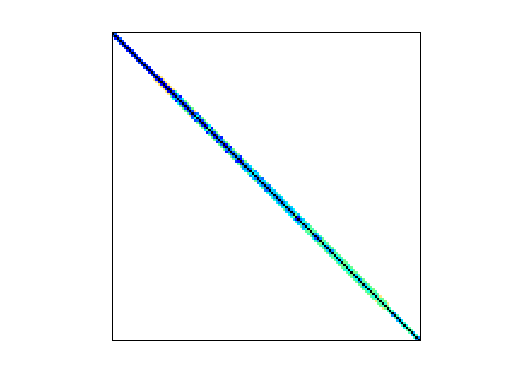

Matrix: Janna/Cube_Coup_dt0

Description: 3D coupled consolidation problem (3D cube)

Janna/Cube_Coup_dt0 graph
(undirected graph drawing)

Janna/Cube_Coup_dt0 dmperm of Janna/Cube_Coup_dt0

  • Home page of the UF Sparse Matrix Collection
  • Matrix group: Janna
  • Click here for a description of the Janna group.
  • Click here for a list of all matrices
  • Click here for a list of all matrix groups
  • download as a MATLAB mat-file, file size: 542 MB. Use UFget(2548) or UFget('Janna/Cube_Coup_dt0') in MATLAB.
  • download in Matrix Market format, file size: 420 MB.
  • download in Rutherford/Boeing format, file size: 298 MB.

    Matrix properties
    number of rows2,164,760
    number of columns2,164,760
    structural full rank?yes
    structural rank2,164,760
    # of blocks from dmperm47,061
    # strongly connected comp.47,061
    explicit zero entries2,800,074
    nonzero pattern symmetrysymmetric
    numeric value symmetrysymmetric
    Cholesky candidate?no
    positive definite?no

    authorC. Janna, M. Ferronato
    editorT. Davis
    kindstructural problem
    2D/3D problem?yes


    Authors: Carlo Janna and Massimiliano Ferronato
    Symmetric Indefinite Matrix
    # equations:    2,164,760
    # non-zeroes: 127,206,144
    Problem description: Coupled consolidation problem
    The matrix Cube_Coup is obtained from a 3D coupled consolidation
    problem of a cube discretized with tetrahedral Finite Elements. The
    computational grid is characterized by regularly shaped elements.  The
    copuled consolidation problem gives rise to a matrix having 4 unknowns
    associated to each node: the first three are displacement unknowns, the
    fourth is a pressure. Coupled consolidation is a transient problem with
    the matrix ill-conditioning strongly depending on the time step size.
    We provide a relatively simple problem, "dt0" with  a time step size of
    10^0 seconds, and a more difficult one, "dt6" with a time step of 10^6
    seconds.  The two Cube_Coup_* matrices are symmetric indefinite.
    Further information may be found in the following papers:
    1) C. Janna, M. Ferronato, G. Gambolati. "Parallel inexact constraint
    preconditioning for ill-conditioned consolidation problems".
    Computational Geosciences, submitted.
    2) M. Ferronato, L. Bergamaschi, G. Gambolati. "Performance and
    robustness of block constraint preconditioners in FE coupled
    consolidation problems".  International Journal for Numerical Methods
    in Engineering, 81, pp. 381-402, 2010.
    3) L. Bergamaschi, M. Ferronato, G. Gambolati. "Mixed constraint
    preconditioners for the iterative solution to FE coupled consolidation
    equations". Journal of Computational Physics, 227, pp. 9885-9897, 2008.
    4) L. Bergamaschi, M. Ferronato, G. Gambolati. "Novel preconditioners
    for the iterative solution to FE-discretized coupled consolidation
    equations". Computer Methods in Applied Mechanics and Engineering, 196,
    pp. 2647-2656, 2007.

    Ordering statistics:result
    nnz(chol(P*(A+A'+s*I)*P')) with AMD23,050,250,222
    Cholesky flop count1.1e+15
    nnz(L+U), no partial pivoting, with AMD46,098,335,684
    nnz(V) for QR, upper bound nnz(L) for LU, with COLAMD26,187,685,977
    nnz(R) for QR, upper bound nnz(U) for LU, with COLAMD46,514,870,558

    Note that all matrix statistics (except nonzero pattern symmetry) exclude the 2800074 explicit zero entries.

    For a description of the statistics displayed above, click here.
