Matrix: JGD_Margulies/flower_4_4

Description: Combinatorial optimization as polynomial eqns, Susan Margulies, UC Davis

JGD_Margulies/flower_4_4 graph
(bipartite graph drawing)

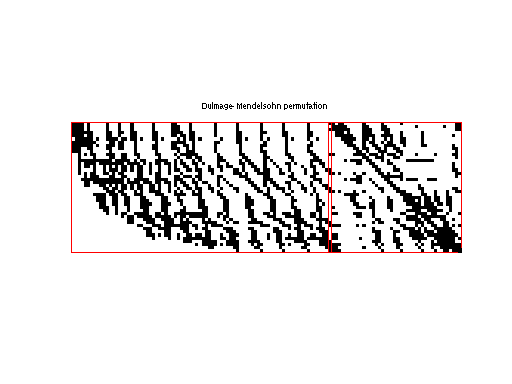

JGD_Margulies/flower_4_4 dmperm of JGD_Margulies/flower_4_4

  • Home page of the UF Sparse Matrix Collection
  • Matrix group: JGD_Margulies
  • Click here for a description of the JGD_Margulies group.
  • Click here for a list of all matrices
  • Click here for a list of all matrix groups
  • download as a MATLAB mat-file, file size: 38 KB. Use UFget(2156) or UFget('JGD_Margulies/flower_4_4') in MATLAB.
  • download in Matrix Market format, file size: 53 KB.
  • download in Rutherford/Boeing format, file size: 43 KB.

    Matrix properties
    number of rows1,837
    number of columns5,529
    nonzeros16,466
    structural full rank?yes
    structural rank1,837
    # of blocks from dmperm2
    # strongly connected comp.1
    explicit zero entries0
    nonzero pattern symmetry 0%
    numeric value symmetry 0%
    typebinary
    structurerectangular
    Cholesky candidate?no
    positive definite?no

    authorS. Margulies
    editorJ.-G. Dumas
    date2008
    kindcombinatorial problem
    2D/3D problem?no

    Notes:

    Combinatorial optimization as polynomial eqns, Susan Margulies, UC Davis
    From Jean-Guillaume Dumas' Sparse Integer Matrix Collection,
    http://ljk.imag.fr/membres/Jean-Guillaume.Dumas/simc.html

    http://arxiv.org/abs/0706.0578

    Expressing Combinatorial Optimization Problems by Systems of Polynomial
    Equations and the Nullstellensatz

    Authors: J.A. De Loera, J. Lee, Susan Margulies, S. Onn

    (Submitted on 5 Jun 2007)

    Abstract: Systems of polynomial equations over the complex or real
    numbers can be used to model combinatorial problems. In this way, a
    combinatorial problem is feasible (e.g. a graph is 3-colorable,
    hamiltonian, etc.) if and only if a related system of polynomial
    equations has a solution. In the first part of this paper, we construct
    new polynomial encodings for the problems of finding in a graph its
    longest cycle, the largest planar subgraph, the edge-chromatic number,
    or the largest k-colorable subgraph.  For an infeasible polynomial
    system, the (complex) Hilbert Nullstellensatz gives a certificate that
    the associated combinatorial problem is infeasible. Thus, unless P =
    NP, there must exist an infinite sequence of infeasible instances of
    each hard combinatorial problem for which the minimum degree of a
    Hilbert Nullstellensatz certificate of the associated polynomial system
    grows.  We show that the minimum-degree of a Nullstellensatz
    certificate for the non-existence of a stable set of size greater than
    the stability number of the graph is the stability number of the graph.
    Moreover, such a certificate contains at least one term per stable set
    of G. In contrast, for non-3- colorability, we found only graphs with
    Nullstellensatz certificates of degree four.

    Filename in JGD collection: Margulies/flower_4_4.sms


    Ordering statistics:result
    nnz(V) for QR, upper bound nnz(L) for LU, with COLAMD3,721,559
    nnz(R) for QR, upper bound nnz(U) for LU, with COLAMD627,849

    SVD-based statistics:
    norm(A)5.58877
    min(svd(A))0.638429
    cond(A)8.75395
    rank(A)1,837
    sprank(A)-rank(A)0
    null space dimension0
    full numerical rank?yes

    singular values (MAT file):click here
    SVD method used:s = svd (full (A)) ;
    status:ok

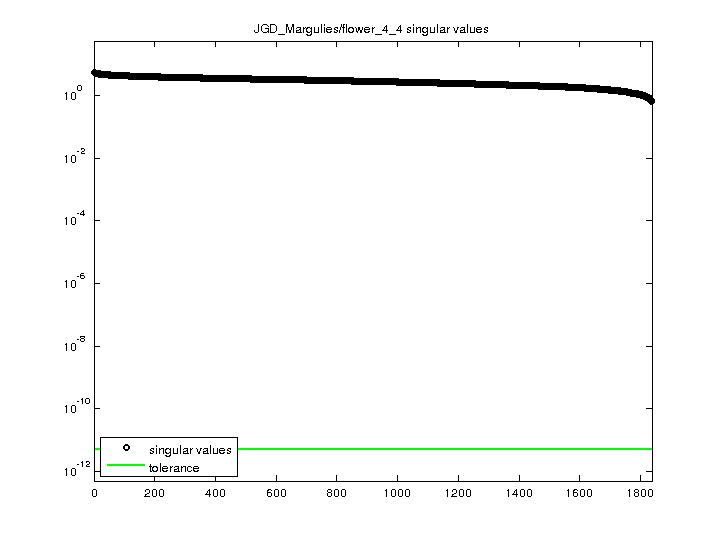

    JGD_Margulies/flower_4_4 svd
