Matrix: JGD_Kocay/Trec6

Description: Brute force disjoint product matrices in tree algebra on n nodes, Nicolas Thiery

JGD_Kocay/Trec6 graph
(bipartite graph drawing)


JGD_Kocay/Trec6
scc of JGD_Kocay/Trec6

  • Home page of the UF Sparse Matrix Collection
  • Matrix group: JGD_Kocay
  • Click here for a description of the JGD_Kocay group.
  • Click here for a list of all matrices
  • Click here for a list of all matrix groups
  • download as a MATLAB mat-file, file size: 1 KB. Use UFget(2140) or UFget('JGD_Kocay/Trec6') in MATLAB.
  • download in Matrix Market format, file size: 1012 bytes.
  • download in Rutherford/Boeing format, file size: 1 KB.

    Matrix properties
    number of rows6
    number of columns15
    nonzeros40
    structural full rank?yes
    structural rank6
    # of blocks from dmperm1
    # strongly connected comp.2
    explicit zero entries0
    nonzero pattern symmetry 0%
    numeric value symmetry 0%
    typeinteger
    structurerectangular
    Cholesky candidate?no
    positive definite?no

    authorN. Thiery
    editorJ.-G. Dumas
    date2008
    kindcombinatorial problem
    2D/3D problem?no

    Notes:

    Brute force disjoint product matrices in tree algebra on n nodes, Nicolas Thiery
    From Jean-Guillaume Dumas' Sparse Integer Matrix Collection,
    http://ljk.imag.fr/membres/Jean-Guillaume.Dumas/simc.html

    http://www.lapcs.univ-lyon1.fr/~nthiery/LinearAlgebra

    Linear algebra for combinatorics

    Abstract: Computations in algebraic combinatorics often boils down to
    sparse linear algebra over some exact field. Such computations are
    usually done in high level computer algebra systems like MuPAD or
    Maple, which are reasonnably efficient when the ground field requires
    symbolic computations.  However, when the ground field is, say Q or
    Z/pZ, the use of external specialized libraries becomes necessary. This
    document, geared toward developpers of such libraries, present a brief
    overview of my needs, which seems to be fairly typical in the
    community.

    Filename in JGD collection: Kocay/Trec6.txt2


    Ordering statistics:result
    nnz(V) for QR, upper bound nnz(L) for LU, with COLAMD40
    nnz(R) for QR, upper bound nnz(U) for LU, with COLAMD19

    SVD-based statistics:
    norm(A)12.125
    min(svd(A))1.10751
    cond(A)10.948
    rank(A)6
    sprank(A)-rank(A)0
    null space dimension0
    full numerical rank?yes

    singular values (MAT file):click here
    SVD method used:s = svd (full (R)) ; where [~,R,E] = spqr (A') with droptol of zero
    status:ok

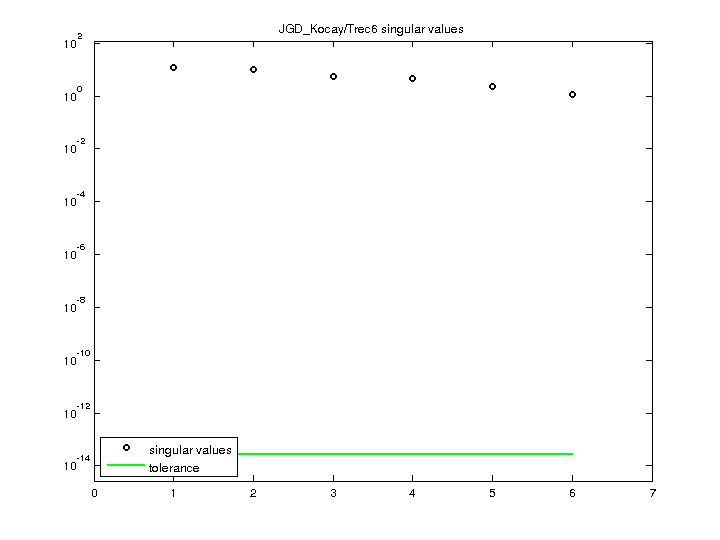

    JGD_Kocay/Trec6 svd

    For a description of the statistics displayed above, click here.
