Matrix: JGD_Homology/n4c6-b12

Description: Simplicial complexes from Homology from Volkmar Welker.

JGD_Homology/n4c6-b12 graph
(bipartite graph drawing)


JGD_Homology/n4c6-b12

  • Home page of the UF Sparse Matrix Collection
  • Matrix group: JGD_Homology
  • Click here for a description of the JGD_Homology group.
  • Click here for a list of all matrices
  • Click here for a list of all matrix groups
  • download as a MATLAB mat-file, file size: 761 KB. Use UFget(2121) or UFget('JGD_Homology/n4c6-b12') in MATLAB.
  • download in Matrix Market format, file size: 1 MB.
  • download in Rutherford/Boeing format, file size: 869 KB.

    Matrix properties
    number of rows25,605
    number of columns69,235
    nonzeros332,865
    structural full rank?yes
    structural rank25,605
    # of blocks from dmperm1
    # strongly connected comp.1
    explicit zero entries0
    nonzero pattern symmetry 0%
    numeric value symmetry 0%
    typeinteger
    structurerectangular
    Cholesky candidate?no
    positive definite?no

    authorV. Welker
    editorJ.-G. Dumas
    date2008
    kindcombinatorial problem
    2D/3D problem?no

    Notes:

    Simplicial complexes from Homology from Volkmar Welker.
    From Jean-Guillaume Dumas' Sparse Integer Matrix Collection,
    http://ljk.imag.fr/membres/Jean-Guillaume.Dumas/simc.html

    http://www.mathematik.uni-marburg.de/~welker/

    Filename in JGD collection: Homology/n4c6.b12.25605x69235.sms


    Ordering statistics:result
    nnz(V) for QR, upper bound nnz(L) for LU, with COLAMD785,829,228
    nnz(R) for QR, upper bound nnz(U) for LU, with COLAMD183,821,487

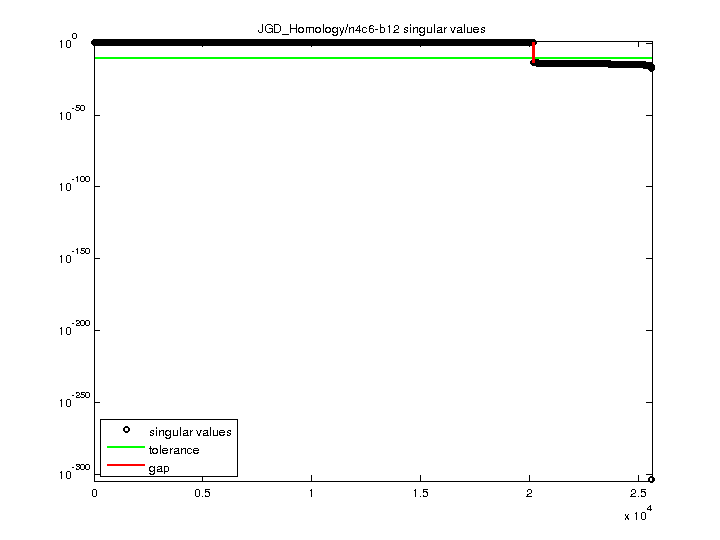

    SVD-based statistics:
    norm(A)4.58258
    min(svd(A))1.4878e-304
    cond(A)3.08011e+304
    rank(A)20,165
    sprank(A)-rank(A)5,440
    null space dimension5,440
    full numerical rank?no
    singular value gap8.64806e+13

    singular values (MAT file):click here
    SVD method used:s = svd (full (R)) ; where [~,R,E] = spqr (A') with droptol of zero
    status:ok

    JGD_Homology/n4c6-b12 svd

    For a description of the statistics displayed above, click here.

    Maintained by Tim Davis, last updated 12-Mar-2014.

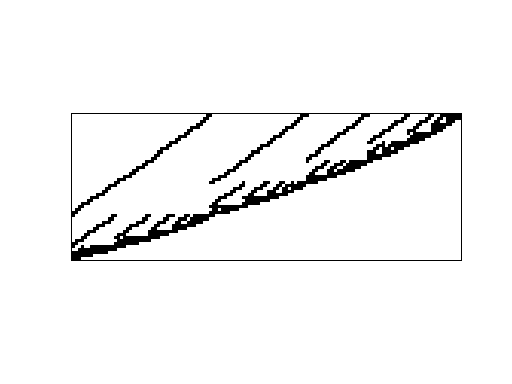

    Matrix pictures by cspy, a MATLAB function in the CSparse package.
