Matrix: JGD_Homology/n4c5-b5

Description: Simplicial complexes from Homology from Volkmar Welker.

JGD_Homology/n4c5-b5 graph
(bipartite graph drawing)


JGD_Homology/n4c5-b5

  • Home page of the UF Sparse Matrix Collection
  • Matrix group: JGD_Homology
  • Click here for a description of the JGD_Homology group.
  • Click here for a list of all matrices
  • Click here for a list of all matrix groups
  • download as a MATLAB mat-file, file size: 57 KB. Use UFget(2113) or UFget('JGD_Homology/n4c5-b5') in MATLAB.
  • download in Matrix Market format, file size: 83 KB.
  • download in Rutherford/Boeing format, file size: 64 KB.

    Matrix properties
    number of rows4,340
    number of columns2,852
    nonzeros26,040
    structural full rank?yes
    structural rank2,852
    # of blocks from dmperm1
    # strongly connected comp.1
    explicit zero entries0
    nonzero pattern symmetry 0%
    numeric value symmetry 0%
    typeinteger
    structurerectangular
    Cholesky candidate?no
    positive definite?no

    authorV. Welker
    editorJ.-G. Dumas
    date2008
    kindcombinatorial problem
    2D/3D problem?no

    Notes:

    Simplicial complexes from Homology from Volkmar Welker.
    From Jean-Guillaume Dumas' Sparse Integer Matrix Collection,
    http://ljk.imag.fr/membres/Jean-Guillaume.Dumas/simc.html

    http://www.mathematik.uni-marburg.de/~welker/

    Filename in JGD collection: Homology/n4c5.b5.4340x2852.sms


    Ordering statistics:result
    nnz(V) for QR, upper bound nnz(L) for LU, with COLAMD5,518,930
    nnz(R) for QR, upper bound nnz(U) for LU, with COLAMD2,918,080

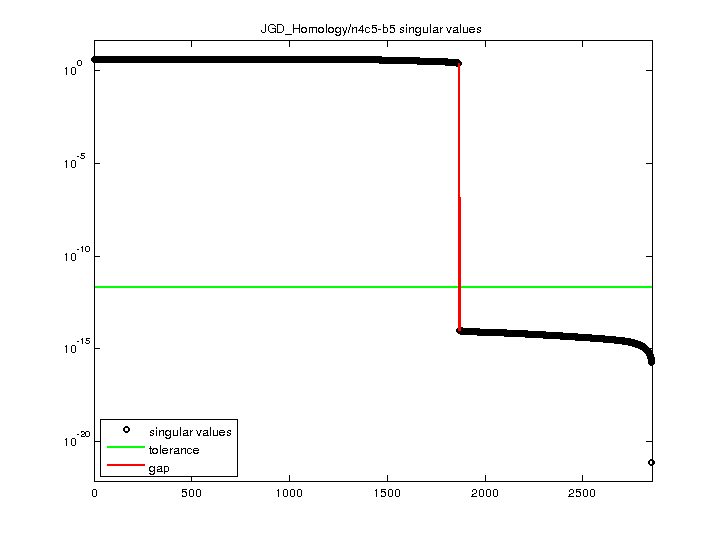

    SVD-based statistics:
    norm(A)3.87298
    min(svd(A))7.74503e-22
    cond(A)5.00061e+21
    rank(A)1,866
    sprank(A)-rank(A)986
    null space dimension986
    full numerical rank?no
    singular value gap2.41164e+14

    singular values (MAT file):click here
    SVD method used:s = svd (full (A)) ;
    status:ok

    JGD_Homology/n4c5-b5 svd

    For a description of the statistics displayed above, click here.

    Maintained by Tim Davis, last updated 12-Mar-2014.

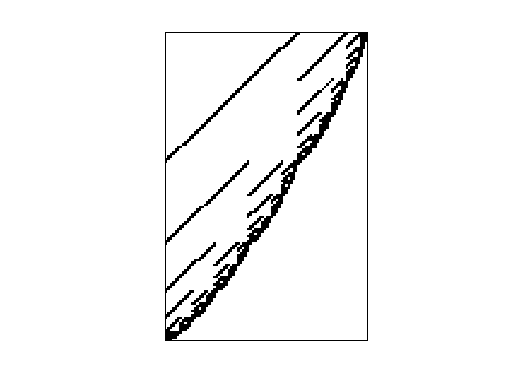

    Matrix pictures by cspy, a MATLAB function in the CSparse package.
    Matrix graphs by Yifan Hu, AT&T Labs Visualization Group.
