Matrix: JGD_Homology/mk12-b5

Description: Simplicial complexes from Homology from Volkmar Welker.

JGD_Homology/mk12-b5 graph
(bipartite graph drawing)


JGD_Homology/mk12-b5

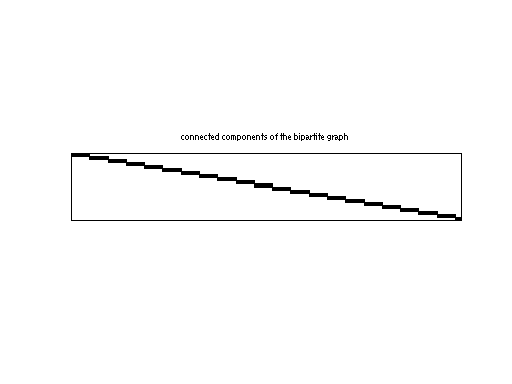

scc of JGD_Homology/mk12-b5

  • Home page of the UF Sparse Matrix Collection
  • Matrix group: JGD_Homology
  • Click here for a description of the JGD_Homology group.
  • Click here for a list of all matrices
  • Click here for a list of all matrix groups
  • download as a MATLAB mat-file, file size: 203 KB. Use UFget(2070) or UFget('JGD_Homology/mk12-b5') in MATLAB.
  • download in Matrix Market format, file size: 249 KB.
  • download in Rutherford/Boeing format, file size: 259 KB.

    Matrix properties
    number of rows10,395
    number of columns62,370
    nonzeros62,370
    structural full rank?yes
    structural rank10,395
    # of blocks from dmperm1
    # strongly connected comp.10,395
    explicit zero entries0
    nonzero pattern symmetry 0%
    numeric value symmetry 0%
    typeinteger
    structurerectangular
    Cholesky candidate?no
    positive definite?no

    authorV. Welker
    editorJ.-G. Dumas
    date2008
    kindcombinatorial problem
    2D/3D problem?no

    Notes:

    Simplicial complexes from Homology from Volkmar Welker.
    From Jean-Guillaume Dumas' Sparse Integer Matrix Collection,
    http://ljk.imag.fr/membres/Jean-Guillaume.Dumas/simc.html

    http://www.mathematik.uni-marburg.de/~welker/

    Filename in JGD collection: Homology/mk12.b5.10395x62370.sms


    Ordering statistics:result
    nnz(V) for QR, upper bound nnz(L) for LU, with COLAMD62,370
    nnz(R) for QR, upper bound nnz(U) for LU, with COLAMD10,395

    SVD-based statistics:
    norm(A)2.44949
    min(svd(A))2.44949
    cond(A)1
    rank(A)10,395
    sprank(A)-rank(A)0
    null space dimension0
    full numerical rank?yes

    singular values (MAT file):click here
    SVD method used:s = svd (full (R)) ; where [~,R,E] = spqr (A') with droptol of zero
    status:ok

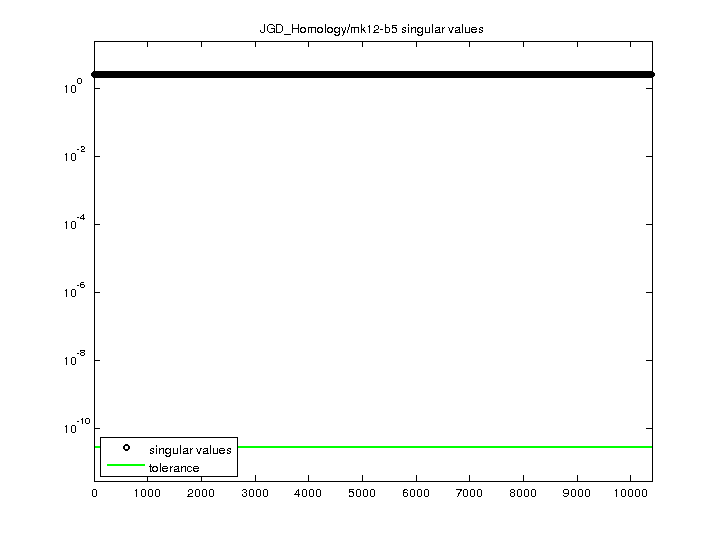

    JGD_Homology/mk12-b5 svd

    For a description of the statistics displayed above, click here.
