Matrix: JGD_Homology/ch8-8-b5

Description: Simplicial complexes from Homology from Volkmar Welker.

JGD_Homology/ch8-8-b5 graph

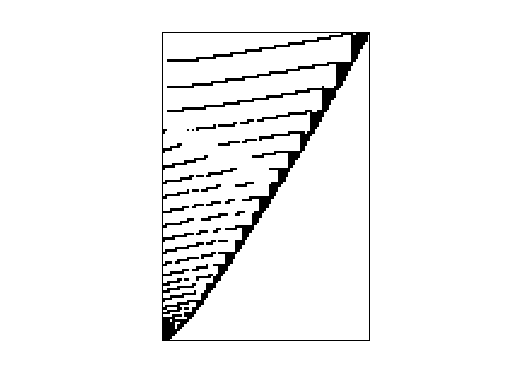

(bipartite graph drawing)


JGD_Homology/ch8-8-b5

  • Home page of the UF Sparse Matrix Collection
  • Matrix group: JGD_Homology
  • Click here for a description of the JGD_Homology group.
  • Click here for a list of all matrices
  • Click here for a list of all matrix groups
  • download as a MATLAB mat-file, file size: 8 MB. Use UFget(2044) or UFget('JGD_Homology/ch8-8-b5') in MATLAB.
  • download in Matrix Market format, file size: 11 MB.
  • download in Rutherford/Boeing format, file size: 9 MB.

    Matrix properties
    number of rows564,480
    number of columns376,320
    nonzeros3,386,880
    structural full rank?yes
    structural rank376,320
    # of blocks from dmperm1
    # strongly connected comp.1
    explicit zero entries0
    nonzero pattern symmetry 0%
    numeric value symmetry 0%
    typeinteger
    structurerectangular
    Cholesky candidate?no
    positive definite?no

    authorV. Welker
    editorJ.-G. Dumas
    date2008
    kindcombinatorial problem
    2D/3D problem?no

    Notes:

    Simplicial complexes from Homology from Volkmar Welker.
    From Jean-Guillaume Dumas' Sparse Integer Matrix Collection,
    http://ljk.imag.fr/membres/Jean-Guillaume.Dumas/simc.html

    http://www.mathematik.uni-marburg.de/~welker/

    Filename in JGD collection: Homology/ch8-8.b5.564480x376320.sms


    Ordering statistics:result
    nnz(V) for QR, upper bound nnz(L) for LU, with COLAMD101,355,493,423
    nnz(R) for QR, upper bound nnz(U) for LU, with COLAMD50,612,327,307

    For a description of the statistics displayed above, click here.
