Matrix: JGD_Homology/ch7-9-b4

Description: Simplicial complexes from Homology from Volkmar Welker.

JGD_Homology/ch7-9-b4 graph
(bipartite graph drawing)


JGD_Homology/ch7-9-b4

  • Home page of the UF Sparse Matrix Collection
  • Matrix group: JGD_Homology
  • Click here for a description of the JGD_Homology group.
  • Click here for a list of all matrices
  • Click here for a list of all matrix groups
  • download as a MATLAB mat-file, file size: 3 MB. Use UFget(2038) or UFget('JGD_Homology/ch7-9-b4') in MATLAB.
  • download in Matrix Market format, file size: 5 MB.
  • download in Rutherford/Boeing format, file size: 4 MB.

    Matrix properties
    number of rows317,520
    number of columns105,840
    nonzeros1,587,600
    structural full rank?yes
    structural rank105,840
    # of blocks from dmperm1
    # strongly connected comp.1
    explicit zero entries0
    nonzero pattern symmetry 0%
    numeric value symmetry 0%
    typeinteger
    structurerectangular
    Cholesky candidate?no
    positive definite?no

    authorV. Welker
    editorJ.-G. Dumas
    date2008
    kindcombinatorial problem
    2D/3D problem?no

    Notes:

    Simplicial complexes from Homology from Volkmar Welker.
    From Jean-Guillaume Dumas' Sparse Integer Matrix Collection,
    http://ljk.imag.fr/membres/Jean-Guillaume.Dumas/simc.html

    http://www.mathematik.uni-marburg.de/~welker/

    Filename in JGD collection: Homology/ch7-9.b4.317520x105840.sms


    Ordering statistics:result
    nnz(V) for QR, upper bound nnz(L) for LU, with COLAMD20,744,263,106
    nnz(R) for QR, upper bound nnz(U) for LU, with COLAMD4,046,473,056

    For a description of the statistics displayed above, click here.

    Maintained by Tim Davis, last updated 12-Mar-2014.

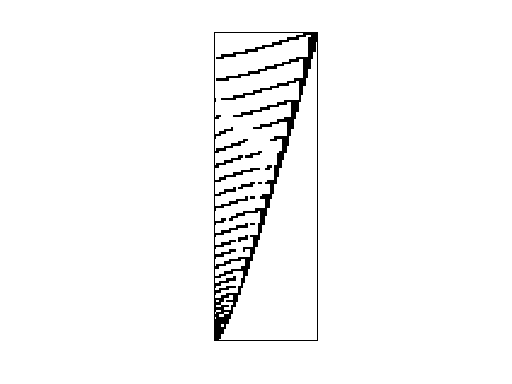

    Matrix pictures by cspy, a MATLAB function in the CSparse package.
    Matrix graphs by Yifan Hu, AT&T Labs Visualization Group.
