Matrix: JGD_Homology/ch6-6-b1

Description: Simplicial complexes from Homology from Volkmar Welker.

JGD_Homology/ch6-6-b1 graph
(bipartite graph drawing)

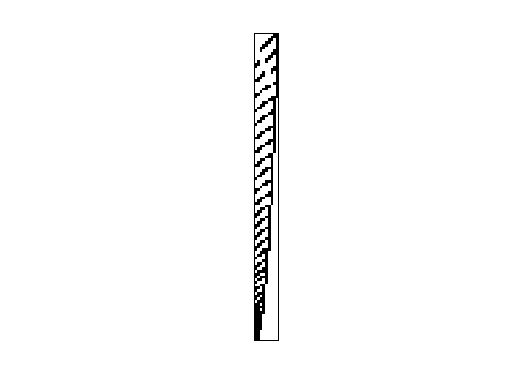

JGD_Homology/ch6-6-b1

  • Home page of the UF Sparse Matrix Collection
  • Matrix group: JGD_Homology
  • Click here for a description of the JGD_Homology group.
  • Click here for a list of all matrices
  • Click here for a list of all matrix groups
  • download as a MATLAB mat-file, file size: 3 KB. Use UFget(2017) or UFget('JGD_Homology/ch6-6-b1') in MATLAB.
  • download in Matrix Market format, file size: 3 KB.
  • download in Rutherford/Boeing format, file size: 3 KB.

    Matrix properties
    number of rows450
    number of columns36
    nonzeros900
    structural full rank?yes
    structural rank36
    # of blocks from dmperm1
    # strongly connected comp.1
    explicit zero entries0
    nonzero pattern symmetry 0%
    numeric value symmetry 0%
    typeinteger
    structurerectangular
    Cholesky candidate?no
    positive definite?no

    authorV. Welker
    editorJ.-G. Dumas
    date2008
    kindcombinatorial problem
    2D/3D problem?no

    Notes:

    Simplicial complexes from Homology from Volkmar Welker.
    From Jean-Guillaume Dumas' Sparse Integer Matrix Collection,
    http://ljk.imag.fr/membres/Jean-Guillaume.Dumas/simc.html

    http://www.mathematik.uni-marburg.de/~welker/

    Filename in JGD collection: Homology/ch6-6.b1.450x36.sms


    Ordering statistics:result
    nnz(V) for QR, upper bound nnz(L) for LU, with COLAMD10,315
    nnz(R) for QR, upper bound nnz(U) for LU, with COLAMD621

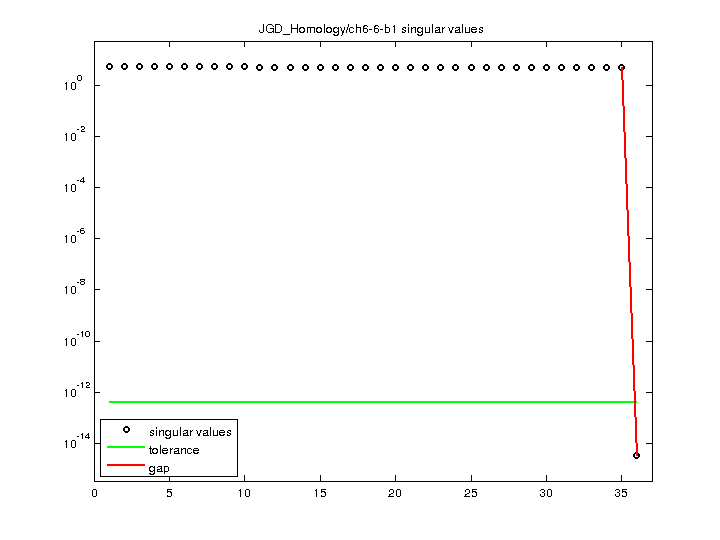

    SVD-based statistics:
    norm(A)5.47723
    min(svd(A))3.38562e-15
    cond(A)1.61779e+15
    rank(A)35
    sprank(A)-rank(A)1
    null space dimension1
    full numerical rank?no
    singular value gap1.447e+15

    singular values (MAT file):click here
    SVD method used:s = svd (full (R)) ; where [~,R,E] = spqr (A) with droptol of zero
    status:ok

    JGD_Homology/ch6-6-b1 svd
