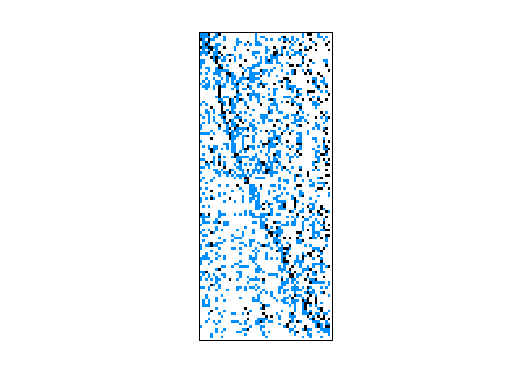

Matrix: JGD_GL6/GL6_D_6

Description: Differentials of the Voronoi complex of perfect forms of rank 6 mod GL_6(Z),

JGD_GL6/GL6_D_6 graph
(bipartite graph drawing)


JGD_GL6/GL6_D_6 dmperm of JGD_GL6/GL6_D_6
scc of JGD_GL6/GL6_D_6

  • Home page of the UF Sparse Matrix Collection
  • Matrix group: JGD_GL6
  • Click here for a description of the JGD_GL6 group.
  • Click here for a list of all matrices
  • Click here for a list of all matrix groups
  • download as a MATLAB mat-file, file size: 7 KB. Use UFget(1978) or UFget('JGD_GL6/GL6_D_6') in MATLAB.
  • download in Matrix Market format, file size: 8 KB.
  • download in Rutherford/Boeing format, file size: 7 KB.

    Matrix properties
    number of rows469
    number of columns201
    nonzeros2,526
    structural full rank?no
    structural rank199
    # of blocks from dmperm2
    # strongly connected comp.7
    explicit zero entries0
    nonzero pattern symmetry 0%
    numeric value symmetry 0%
    typeinteger
    structurerectangular
    Cholesky candidate?no
    positive definite?no

    authorP. Elbaz-Vincent
    editorJ.-G. Dumas
    date2008
    kindcombinatorial problem
    2D/3D problem?no

    Notes:

    Differentials of the Voronoi complex of perfect forms of rank 6 mod GL_6(Z),
    from Philippe Elbaz-Vincent, Institut Fourier, Grenoble, France.

    From Jean-Guillaume Dumas' Sparse Integer Matrix Collection,
    http://ljk.imag.fr/membres/Jean-Guillaume.Dumas/simc.html

    http://www-fourier.ujf-grenoble.fr/-Informations-personnelles-.html?P=pev

    D_6  Smith Invariants = [ 1:156 ]
    D_7  Smith Invariants = [ 1:307 2:3 60:2 ]
    D_8  Smith Invariants = [ 1:320 2:1 6:2 12:1 ]
    D_9  Smith Invariants = [ 1:217 2:3 ]
    D_10 Smith Invariants = [ 1:120 ]

    Filename in JGD collection: GL6/D_6.sms


    Ordering statistics:result
    nnz(V) for QR, upper bound nnz(L) for LU, with COLAMD47,044
    nnz(R) for QR, upper bound nnz(U) for LU, with COLAMD13,773

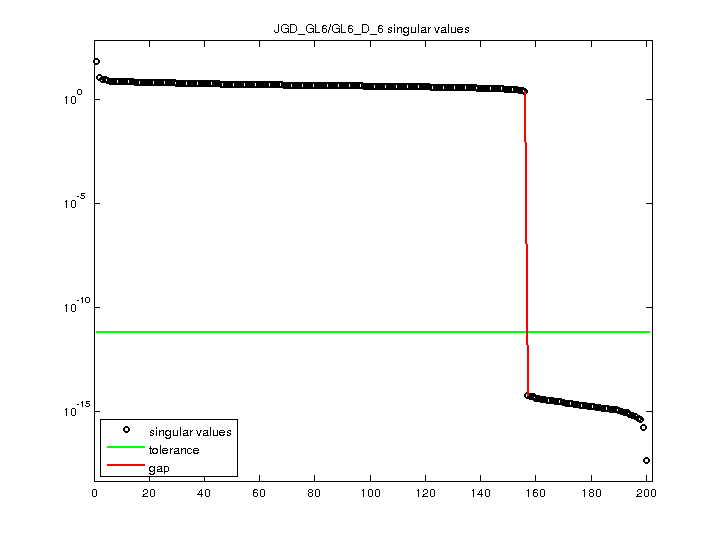

    SVD-based statistics:
    norm(A)65.9917
    min(svd(A))0
    cond(A)Inf
    rank(A)156
    sprank(A)-rank(A)43
    null space dimension45
    full numerical rank?no
    singular value gap3.78705e+14

    singular values (MAT file):click here
    SVD method used:s = svd (full (A)) ;
    status:ok

    JGD_GL6/GL6_D_6 svd

    For a description of the statistics displayed above, click here.
