Matrix: JGD_BIBD/bibd_17_4b

Description: Balanced Incomplete Block Design from Mark Giesbrecht, Univ. of Waterloo

JGD_BIBD/bibd_17_4b graph
(bipartite graph drawing)

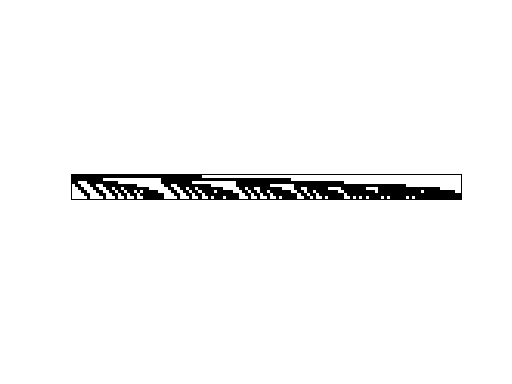

JGD_BIBD/bibd_17_4b

  • Home page of the UF Sparse Matrix Collection
  • Matrix group: JGD_BIBD
  • Click here for a description of the JGD_BIBD group.
  • Click here for a list of all matrices
  • Click here for a list of all matrix groups
  • download as a MATLAB mat-file, file size: 18 KB. Use UFget(1931) or UFget('JGD_BIBD/bibd_17_4b') in MATLAB.
  • download in Matrix Market format, file size: 34 KB.
  • download in Rutherford/Boeing format, file size: 21 KB.

    Matrix properties
    number of rows136
    number of columns2,380
    nonzeros14,280
    structural full rank?yes
    structural rank136
    # of blocks from dmperm1
    # strongly connected comp.1
    explicit zero entries0
    nonzero pattern symmetry 0%
    numeric value symmetry 0%
    typebinary
    structurerectangular
    Cholesky candidate?no
    positive definite?no

    authorM. Giesbrecht
    editorJ.-G. Dumas
    date2008
    kindcombinatorial problem
    2D/3D problem?no

    Notes:

    Balanced Incomplete Block Design from Mark Giesbrecht, Univ. of Waterloo
    From Jean-Guillaume Dumas' Sparse Integer Matrix Collection,
    http://ljk.imag.fr/membres/Jean-Guillaume.Dumas/simc.html

    Filename in JGD collection: BIBD/bibd_17_4_136x2380.sms


    Ordering statistics:result
    nnz(V) for QR, upper bound nnz(L) for LU, with COLAMD230,767
    nnz(R) for QR, upper bound nnz(U) for LU, with COLAMD9,316

    SVD-based statistics:
    norm(A)25.0998
    min(svd(A))8.83176
    cond(A)2.84199
    rank(A)136
    sprank(A)-rank(A)0
    null space dimension0
    full numerical rank?yes

    singular values (MAT file):click here
    SVD method used:s = svd (full (A)) ;
    status:ok

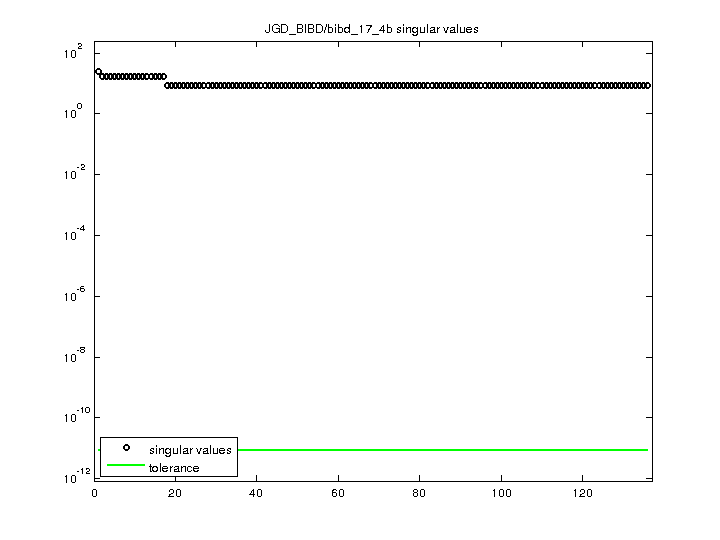

    JGD_BIBD/bibd_17_4b svd
