Matrix: JGD_BIBD/bibd_13_6

Description: Balanced Incomplete Block Design from Mark Giesbrecht, Univ. of Waterloo

JGD_BIBD/bibd_13_6 graph
(bipartite graph drawing)

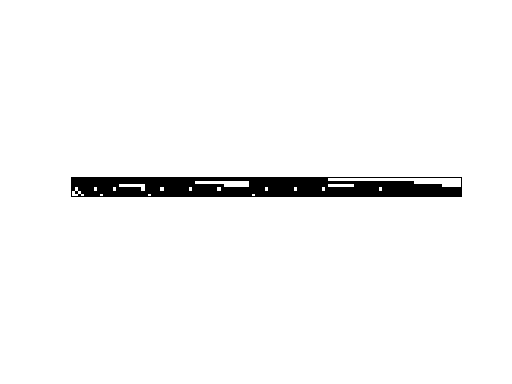

JGD_BIBD/bibd_13_6

  • Home page of the UF Sparse Matrix Collection
  • Matrix group: JGD_BIBD
  • Click here for a description of the JGD_BIBD group.
  • Click here for a list of all matrices
  • Click here for a list of all matrix groups
  • download as a MATLAB mat-file, file size: 23 KB. Use UFget(1925) or UFget('JGD_BIBD/bibd_13_6') in MATLAB.
  • download in Matrix Market format, file size: 56 KB.
  • download in Rutherford/Boeing format, file size: 20 KB.

    Matrix properties
    number of rows78
    number of columns1,716
    nonzeros25,740
    structural full rank?yes
    structural rank78
    # of blocks from dmperm1
    # strongly connected comp.1
    explicit zero entries0
    nonzero pattern symmetry 0%
    numeric value symmetry 0%
    typebinary
    structurerectangular
    Cholesky candidate?no
    positive definite?no

    authorM. Giesbrecht
    editorJ.-G. Dumas
    date2008
    kindcombinatorial problem
    2D/3D problem?no

    Notes:

    Balanced Incomplete Block Design from Mark Giesbrecht, Univ. of Waterloo
    From Jean-Guillaume Dumas' Sparse Integer Matrix Collection,
    http://ljk.imag.fr/membres/Jean-Guillaume.Dumas/simc.html

    Filename in JGD collection: BIBD/bibd_13_6_78x1716


    Ordering statistics:result
    nnz(V) for QR, upper bound nnz(L) for LU, with COLAMD109,824
    nnz(R) for QR, upper bound nnz(U) for LU, with COLAMD3,081

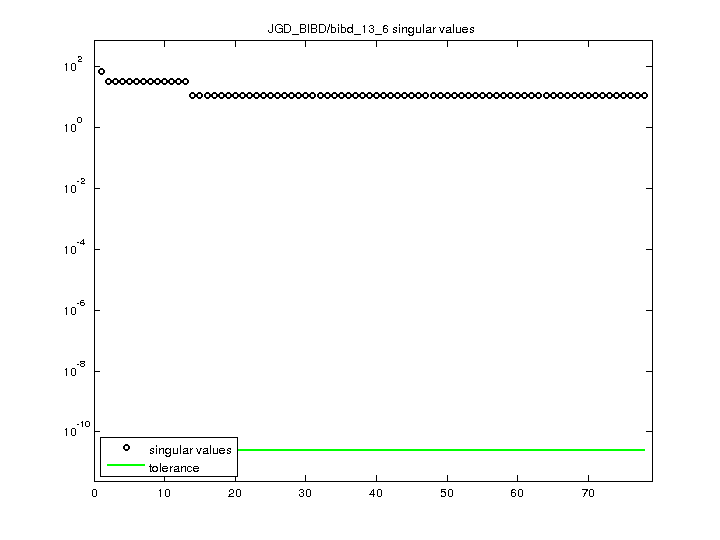

    SVD-based statistics:
    norm(A)70.3562
    min(svd(A))11.225
    cond(A)6.26783
    rank(A)78
    sprank(A)-rank(A)0
    null space dimension0
    full numerical rank?yes

    singular values (MAT file):click here
    SVD method used:s = svd (full (A)) ;
    status:ok

    JGD_BIBD/bibd_13_6 svd

    For a description of the statistics displayed above, click here.
