Matrix: Hollinger/jan99jac100sc

Description: Jacobian from Bank of Canada 'jan99' model, oldstack 100, with scaling

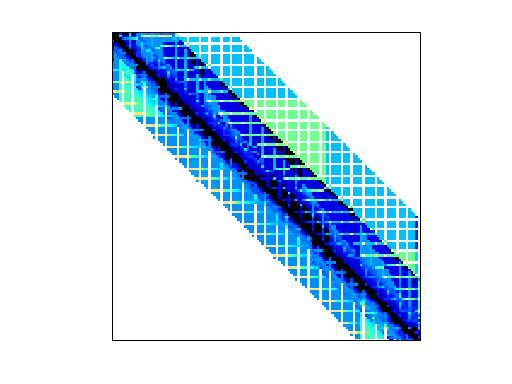

Hollinger/jan99jac100sc graph Hollinger/jan99jac100sc graph
(bipartite graph drawing) (graph drawing of A+A')

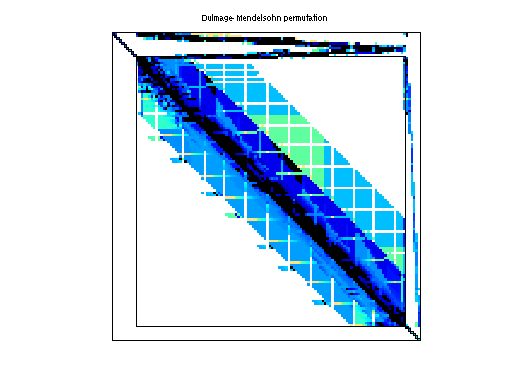

Hollinger/jan99jac100sc dmperm of Hollinger/jan99jac100sc
scc of Hollinger/jan99jac100sc

  • Home page of the UF Sparse Matrix Collection
  • Matrix group: Hollinger
  • Click here for a description of the Hollinger group.
  • Click here for a list of all matrices
  • Click here for a list of all matrix groups
  • download as a MATLAB mat-file, file size: 1 MB. Use UFget(577) or UFget('Hollinger/jan99jac100sc') in MATLAB.
  • download in Matrix Market format, file size: 2 MB.
  • download in Rutherford/Boeing format, file size: 1 MB.

    Matrix properties
    number of rows34,454
    number of columns34,454
    nonzeros190,224
    structural full rank?yes
    structural rank34,454
    # of blocks from dmperm4,450
    # strongly connected comp.4,430
    explicit zero entries25,638
    nonzero pattern symmetry 0%
    numeric value symmetry 0%
    typereal
    structureunsymmetric
    Cholesky candidate?no
    positive definite?no

    authorP. Hollinger
    editorT. Davis
    date2001
    kindeconomic problem
    2D/3D problem?no

    Additional fieldssize and type
    bfull 34454-by-1
    xfull 34454-by-1

    Ordering statistics:result
    nnz(chol(P*(A+A'+s*I)*P')) with AMD1,781,413
    Cholesky flop count6.3e+08
    nnz(L+U), no partial pivoting, with AMD3,528,372
    nnz(V) for QR, upper bound nnz(L) for LU, with COLAMD1,999,877
    nnz(R) for QR, upper bound nnz(U) for LU, with COLAMD5,520,413

    Note that all matrix statistics (except nonzero pattern symmetry) exclude the 25638 explicit zero entries.

    SVD-based statistics:
    norm(A)512.565
    min(svd(A))5.22061e-05
    cond(A)9.81809e+06
    rank(A)34,454
    sprank(A)-rank(A)0
    null space dimension0
    full numerical rank?yes

    singular values (MAT file):click here
    SVD method used:s = svd (full (A))
    status:ok

    Hollinger/jan99jac100sc svd

    For a description of the statistics displayed above, click here.

    Maintained by Tim Davis, last updated 12-Mar-2014.
    Matrix pictures by cspy, a MATLAB function in the CSparse package.
    Matrix graphs by Yifan Hu, AT&T Labs Visualization Group.
