Matrix: Hollinger/jan99jac060sc

Description: Jacobian from Bank of Canada 'jan99' model, oldstack 060, with scaling

Hollinger/jan99jac060sc graph Hollinger/jan99jac060sc graph
(bipartite graph drawing) (graph drawing of A+A')

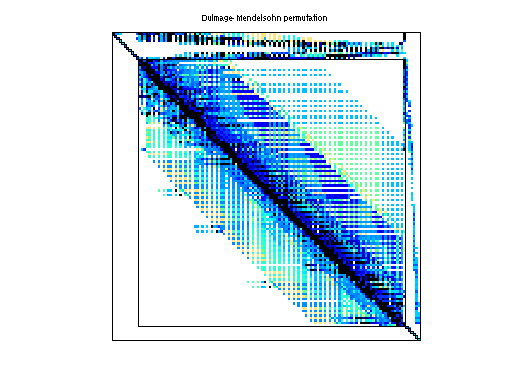

Hollinger/jan99jac060sc dmperm of Hollinger/jan99jac060sc

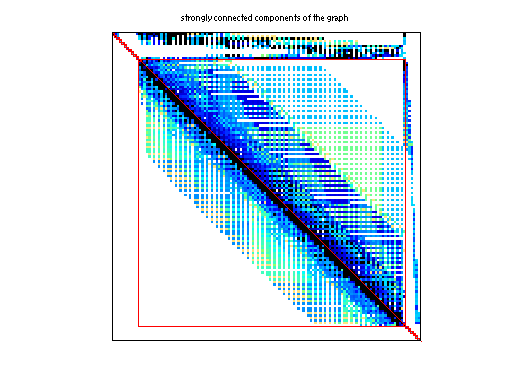

scc of Hollinger/jan99jac060sc

  • Home page of the UF Sparse Matrix Collection
  • Matrix group: Hollinger
  • Click here for a description of the Hollinger group.
  • Click here for a list of all matrices
  • Click here for a list of all matrix groups
  • download as a MATLAB mat-file, file size: 771 KB. Use UFget(573) or UFget('Hollinger/jan99jac060sc') in MATLAB.
  • download in Matrix Market format, file size: 965 KB.
  • download in Rutherford/Boeing format, file size: 882 KB.

    Matrix properties
    number of rows20,614
    number of columns20,614
    nonzeros111,903
    structural full rank?yes
    structural rank20,614
    # of blocks from dmperm2,774
    # strongly connected comp.2,754
    explicit zero entries15,279
    nonzero pattern symmetry 0%
    numeric value symmetry 0%
    typereal
    structureunsymmetric
    Cholesky candidate?no
    positive definite?no

    authorP. Hollinger
    editorT. Davis
    date2001
    kindeconomic problem
    2D/3D problem?no

    Additional fieldssize and type
    bfull 20614-by-1
    xfull 20614-by-1

    Ordering statistics:result
    nnz(chol(P*(A+A'+s*I)*P')) with AMD978,309
    Cholesky flop count3.2e+08
    nnz(L+U), no partial pivoting, with AMD1,936,004
    nnz(V) for QR, upper bound nnz(L) for LU, with COLAMD1,103,778
    nnz(R) for QR, upper bound nnz(U) for LU, with COLAMD2,920,225

    Note that all matrix statistics (except nonzero pattern symmetry) exclude the 15279 explicit zero entries.

    SVD-based statistics:
    norm(A)261.147
    min(svd(A))3.86019e-05
    cond(A)6.76514e+06
    rank(A)20,614
    sprank(A)-rank(A)0
    null space dimension0
    full numerical rank?yes

    singular values (MAT file):click here
    SVD method used:s = svd (full (R)) ; where [~,R,E] = spqr (A) with droptol of zero
    status:ok

    Hollinger/jan99jac060sc svd

    For a description of the statistics displayed above, click here.

    Maintained by Tim Davis, last updated 12-Mar-2014.
    Matrix pictures by cspy, a MATLAB function in the CSparse package.
    Matrix graphs by Yifan Hu, AT&T Labs Visualization Group.
