Matrix: Hollinger/jan99jac040sc

Description: Jacobian from Bank of Canada 'jan99' model, oldstack 040, with scaling

Hollinger/jan99jac040sc graph Hollinger/jan99jac040sc graph
(bipartite graph drawing) (graph drawing of A+A')

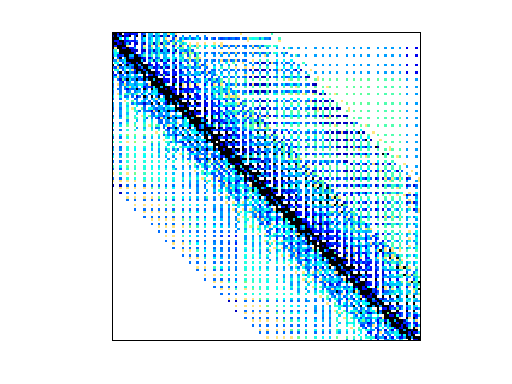

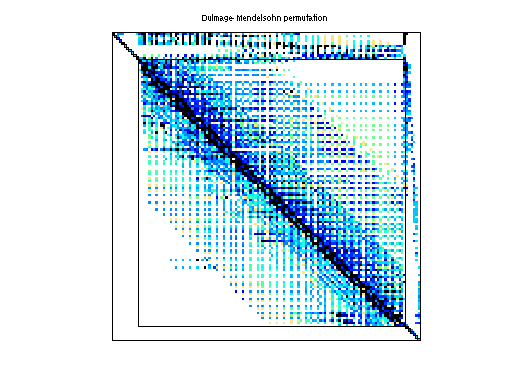

Hollinger/jan99jac040sc dmperm of Hollinger/jan99jac040sc
scc of Hollinger/jan99jac040sc

  • Home page of the UF Sparse Matrix Collection
  • Matrix group: Hollinger
  • Click here for a description of the Hollinger group.
  • Click here for a list of all matrices
  • Click here for a list of all matrix groups
  • download as a MATLAB mat-file, file size: 503 KB. Use UFget(571) or UFget('Hollinger/jan99jac040sc') in MATLAB.
  • download in Matrix Market format, file size: 626 KB.
  • download in Rutherford/Boeing format, file size: 576 KB.

    Matrix properties
    number of rows13,694
    number of columns13,694
    structural full rank?yes
    structural rank13,694
    # of blocks from dmperm1,934
    # strongly connected comp.1,914
    explicit zero entries10,108
    nonzero pattern symmetry 0%
    numeric value symmetry 0%
    Cholesky candidate?no
    positive definite?no

    authorP. Hollinger
    editorT. Davis
    kindeconomic problem
    2D/3D problem?no

    Additional fieldssize and type
    bfull 13694-by-1
    xfull 13694-by-1

    Ordering statistics:result
    nnz(chol(P*(A+A'+s*I)*P')) with AMD574,758
    Cholesky flop count1.7e+08
    nnz(L+U), no partial pivoting, with AMD1,135,822
    nnz(V) for QR, upper bound nnz(L) for LU, with COLAMD681,089
    nnz(R) for QR, upper bound nnz(U) for LU, with COLAMD1,712,691

    Note that all matrix statistics (except nonzero pattern symmetry) exclude the 10108 explicit zero entries.

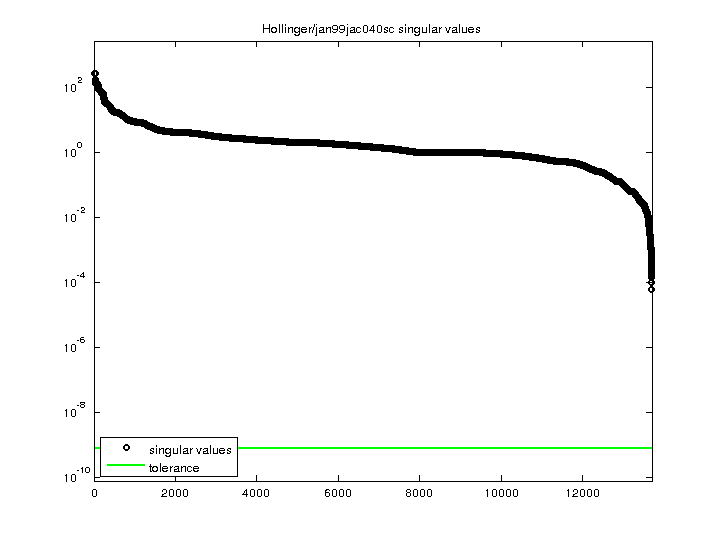

    SVD-based statistics:
    null space dimension0
    full numerical rank?yes

    singular values (MAT file):click here
    SVD method used:s = svd (full (A)) ;

    Hollinger/jan99jac040sc svd

    For a description of the statistics displayed above, click here.

    Maintained by Tim Davis, last updated 12-Mar-2014.
    Matrix pictures by cspy, a MATLAB function in the CSparse package.
    Matrix graphs by Yifan Hu, AT&T Labs Visualization Group.
