Matrix: HB/pores_2

Description: UNSYMMETRIC MATRIX FROM PORES

HB/pores_2 graph HB/pores_2 graph
(bipartite graph drawing) (graph drawing of A+A')


HB/pores_2

  • Home page of the UF Sparse Matrix Collection
  • Matrix group: HB
  • Click here for a description of the HB group.
  • Click here for a list of all matrices
  • Click here for a list of all matrix groups
  • download as a MATLAB mat-file, file size: 62 KB. Use UFget(233) or UFget('HB/pores_2') in MATLAB.
  • download in Matrix Market format, file size: 68 KB.
  • download in Rutherford/Boeing format, file size: 60 KB.

    Matrix properties
    number of rows1,224
    number of columns1,224
    nonzeros9,613
    structural full rank?yes
    structural rank1,224
    # of blocks from dmperm1
    # strongly connected comp.1
    explicit zero entries0
    nonzero pattern symmetry 61%
    numeric value symmetry 39%
    typereal
    structureunsymmetric
    Cholesky candidate?no
    positive definite?no

    authorJ. Appleyard
    editorI. Duff, R. Grimes, J. Lewis
    date1980
    kindcomputational fluid dynamics problem
    2D/3D problem?yes

    Ordering statistics:result
    nnz(chol(P*(A+A'+s*I)*P')) with AMD40,035
    Cholesky flop count2.6e+06
    nnz(L+U), no partial pivoting, with AMD78,846
    nnz(V) for QR, upper bound nnz(L) for LU, with COLAMD26,919
    nnz(R) for QR, upper bound nnz(U) for LU, with COLAMD48,778

    SVD-based statistics:
    norm(A)6.08895e+07
    min(svd(A))0.556428
    cond(A)1.09429e+08
    rank(A)1,224
    sprank(A)-rank(A)0
    null space dimension0
    full numerical rank?yes

    singular values (MAT file):click here
    SVD method used:s = svd (full (A)) ;
    status:ok

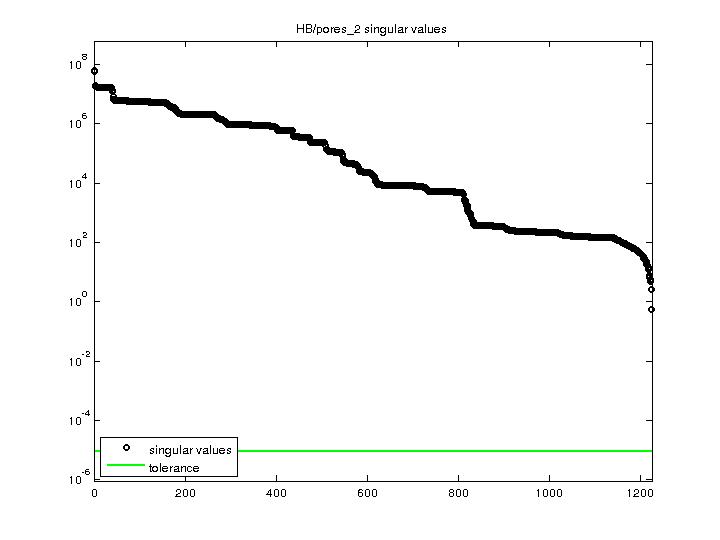

    HB/pores_2 svd

    For a description of the statistics displayed above, click here.

    Maintained by Tim Davis, last updated 12-Mar-2014.

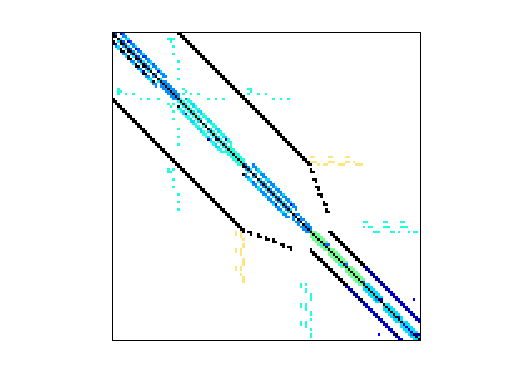

    Matrix pictures by cspy, a MATLAB function in the CSparse package.
    Matrix graphs by Yifan Hu, AT&T Labs Visualization Group.
