Matrix: HB/lshp_265

Description: SYMMETRIC MATRIX FROM ALAN GEORGE'S L-SHAPE PROBLEMS, 1978.

HB/lshp_265 graph
(undirected graph drawing)

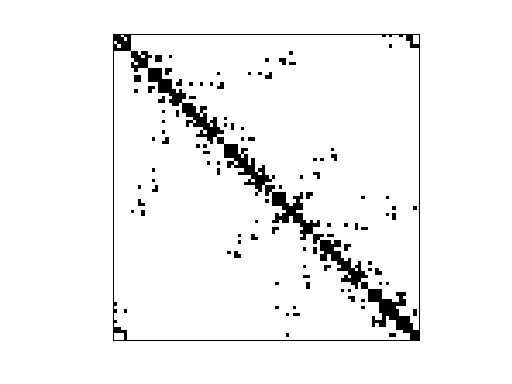

HB/lshp_265

  • Home page of the UF Sparse Matrix Collection
  • Matrix group: HB
  • Click here for a description of the HB group.
  • Click here for a list of all matrices
  • Click here for a list of all matrix groups
  • download as a MATLAB mat-file, file size: 3 KB. Use UFget(202) or UFget('HB/lshp_265') in MATLAB.
  • download in Matrix Market format, file size: 2 KB.
  • download in Rutherford/Boeing format, file size: 2 KB.

    Matrix properties
    number of rows265
    number of columns265
    nonzeros1,753
    structural full rank?yes
    structural rank265
    # of blocks from dmperm1
    # strongly connected comp.1
    explicit zero entries0
    nonzero pattern symmetrysymmetric
    numeric value symmetrysymmetric
    typebinary
    structuresymmetric
    Cholesky candidate?yes
    positive definite?no

    authorA. George
    editorI. Duff, R. Grimes, J. Lewis
    date1978
    kindthermal problem
    2D/3D problem?yes

    Ordering statistics:result
    nnz(chol(P*(A+A'+s*I)*P')) with AMD3,083
    Cholesky flop count4.5e+04
    nnz(L+U), no partial pivoting, with AMD5,901
    nnz(V) for QR, upper bound nnz(L) for LU, with COLAMD3,545
    nnz(R) for QR, upper bound nnz(U) for LU, with COLAMD6,507

    SVD-based statistics:
    norm(A)6.89065
    min(svd(A))0.00496448
    cond(A)1387.99
    rank(A)265
    sprank(A)-rank(A)0
    null space dimension0
    full numerical rank?yes

    singular values (MAT file):click here
    SVD method used:s = svd (full (A)) ;
    status:ok

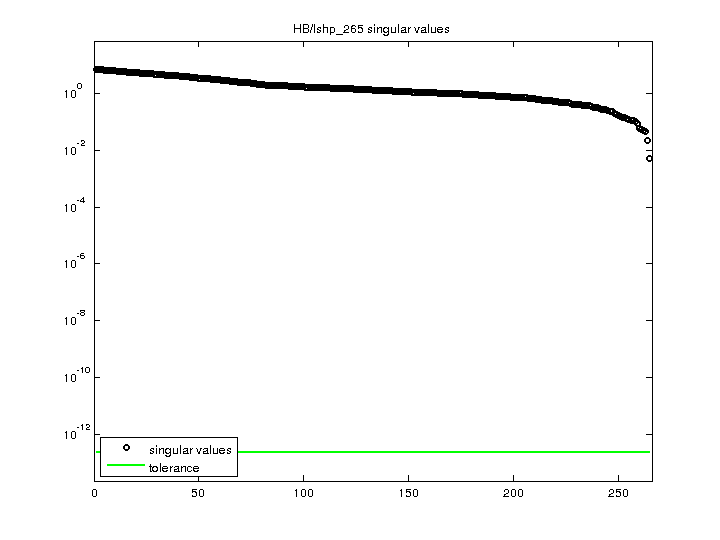

    HB/lshp_265 svd

    For a description of the statistics displayed above, click here.
