Matrix: HB/fs_541_3

Description: UNSYMMETRIC FACSIMILE CONVERGENCE MATRIX

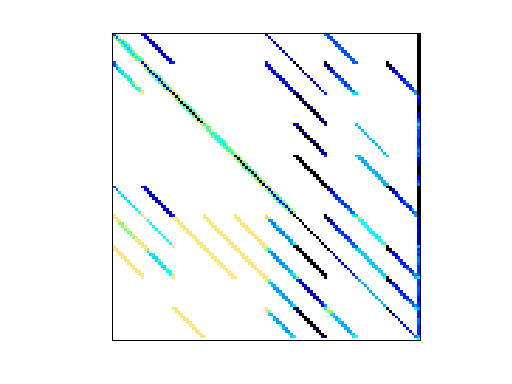

HB/fs_541_3 graph HB/fs_541_3 graph
(bipartite graph drawing) (graph drawing of A+A')

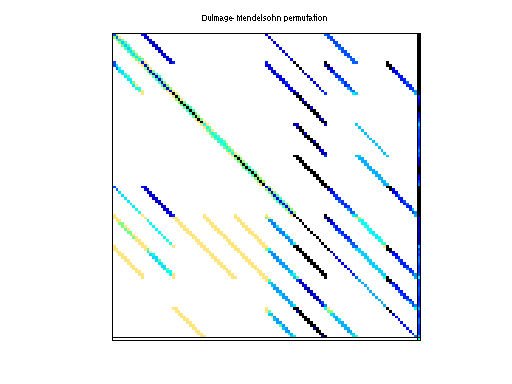

HB/fs_541_3 dmperm of HB/fs_541_3

  • Home page of the UF Sparse Matrix Collection
  • Matrix group: HB
  • Click here for a description of the HB group.
  • Click here for a list of all matrices
  • Click here for a list of all matrix groups
  • download as a MATLAB mat-file, file size: 36 KB. Use UFget(147) or UFget('HB/fs_541_3') in MATLAB.
  • download in Matrix Market format, file size: 43 KB.
  • download in Rutherford/Boeing format, file size: 38 KB.

    Matrix properties
    number of rows541
    number of columns541
    nonzeros4,282
    structural full rank?yes
    structural rank541
    # of blocks from dmperm2
    # strongly connected comp.2
    explicit zero entries3
    nonzero pattern symmetry 68%
    numeric value symmetry 0%
    typereal
    structureunsymmetric
    Cholesky candidate?no
    positive definite?no

    authorA. Curtis
    editorA. Curtis, I. Duff, J. Reid
    date1978
    kindsubsequent 2D/3D problem
    2D/3D problem?yes

    Notes:

    next: HB/fs_541_4 first: HB/fs_541_1


    Ordering statistics:result
    nnz(chol(P*(A+A'+s*I)*P')) with AMD7,140
    Cholesky flop count1.1e+05
    nnz(L+U), no partial pivoting, with AMD13,739
    nnz(V) for QR, upper bound nnz(L) for LU, with COLAMD8,860
    nnz(R) for QR, upper bound nnz(U) for LU, with COLAMD18,338

    Note that all matrix statistics (except nonzero pattern symmetry) exclude the 3 explicit zero entries.

    SVD-based statistics:
    norm(A)1.26711e+07
    min(svd(A))4.48359e-05
    cond(A)2.82611e+11
    rank(A)541
    sprank(A)-rank(A)0
    null space dimension0
    full numerical rank?yes

    singular values (MAT file):click here
    SVD method used:s = svd (full (A)) ;
    status:ok

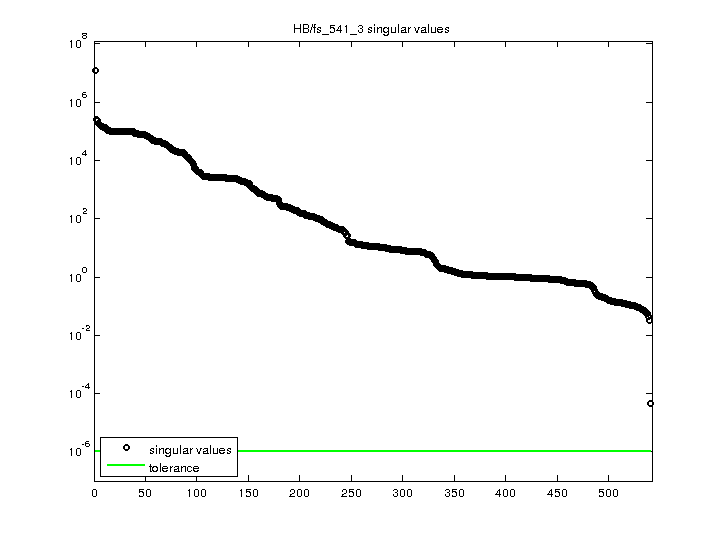

    HB/fs_541_3 svd

    For a description of the statistics displayed above, click here.
