Matrix: Gleich/minnesota

Description: Minnesota road network (with xy coordinates)

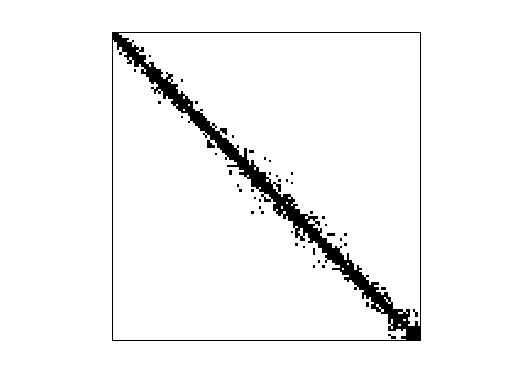

Gleich/minnesota graph
(undirected graph drawing)

Gleich/minnesota
scc of Gleich/minnesota Gleich/minnesota graph

  • Home page of the UF Sparse Matrix Collection
  • Matrix group: Gleich
  • Click here for a description of the Gleich group.
  • Click here for a list of all matrices
  • Click here for a list of all matrix groups
  • download as a MATLAB mat-file, file size: 29 KB. Use UFget(2331) or UFget('Gleich/minnesota') in MATLAB.
  • download in Matrix Market format, file size: 22 KB.
  • download in Rutherford/Boeing format, file size: 22 KB.

    Matrix properties
    number of rows2,642
    number of columns2,642
    nonzeros6,606
    # strongly connected comp.2
    explicit zero entries0
    nonzero pattern symmetrysymmetric
    numeric value symmetrysymmetric
    typebinary
    structuresymmetric
    Cholesky candidate?no
    positive definite?no

    authorD. Gleich
    editorT. Davis
    date2010
    kindundirected graph
    2D/3D problem?no

    Additional fieldssize and type
    coordfull 2642-by-2

    SVD-based statistics:
    norm(A)3.2324
    min(svd(A))6.26097e-34
    cond(A)5.16277e+33
    rank(A)2,598
    null space dimension44
    full numerical rank?no
    singular value gap1.07035e+11

    singular values (MAT file):click here
    SVD method used:s = svd (full (A)) ;
    status:ok

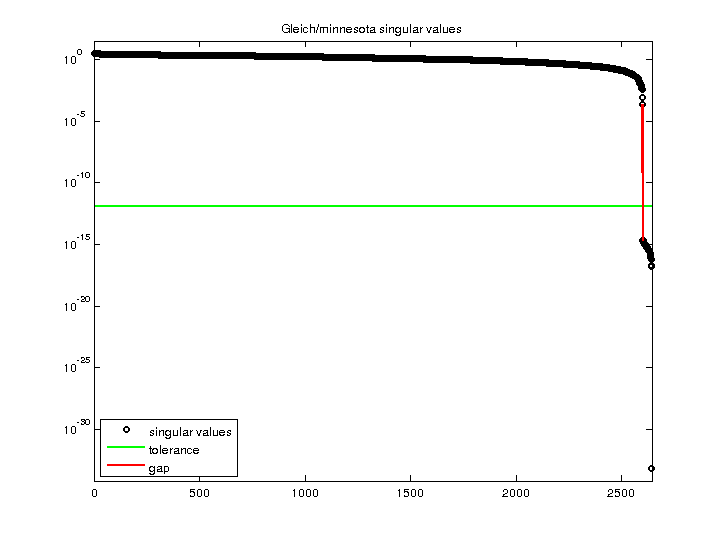

    Gleich/minnesota svd

    For a description of the statistics displayed above, click here.

    Maintained by Tim Davis, last updated 12-Mar-2014.
    Matrix pictures by cspy, a MATLAB function in the CSparse package.
    Matrix graphs by Yifan Hu, AT&T Labs Visualization Group.
