Matrix: GHS_indef/ncvxqp1

Description: Gould, Hu, & Scott: KKT matrix - nonconvex QP (CUTEr)

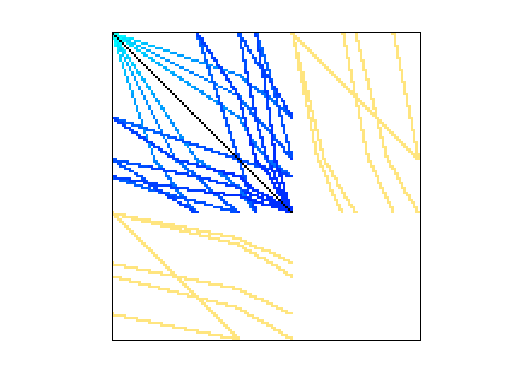

GHS_indef/ncvxqp1 graph
(undirected graph drawing)


  • Home page of the UF Sparse Matrix Collection
  • Matrix group: GHS_indef
  • Click here for a description of the GHS_indef group.
  • Click here for a list of all matrices
  • Click here for a list of all matrix groups
  • download as a MATLAB mat-file, file size: 322 KB. Use UFget(1242) or UFget('GHS_indef/ncvxqp1') in MATLAB.
  • download in Matrix Market format, file size: 251 KB.
  • download in Rutherford/Boeing format, file size: 258 KB.

    Matrix properties
    number of rows12,111
    number of columns12,111
    structural full rank?yes
    structural rank12,111
    # of blocks from dmperm1
    # strongly connected comp.1
    explicit zero entries0
    nonzero pattern symmetrysymmetric
    numeric value symmetrysymmetric
    Cholesky candidate?no
    positive definite?no

    authorN. Gould
    editorN. Gould
    kindoptimization problem
    2D/3D problem?no

    Ordering statistics:result
    nnz(chol(P*(A+A'+s*I)*P')) with AMD2,222,105
    Cholesky flop count2.2e+09
    nnz(L+U), no partial pivoting, with AMD4,432,099
    nnz(V) for QR, upper bound nnz(L) for LU, with COLAMD6,506,571
    nnz(R) for QR, upper bound nnz(U) for LU, with COLAMD14,173,093

    SVD-based statistics:
    null space dimension5,024
    full numerical rank?no
    singular value gap1.74456

    singular values (MAT file):click here
    SVD method used:s = svd (full (A)) ;

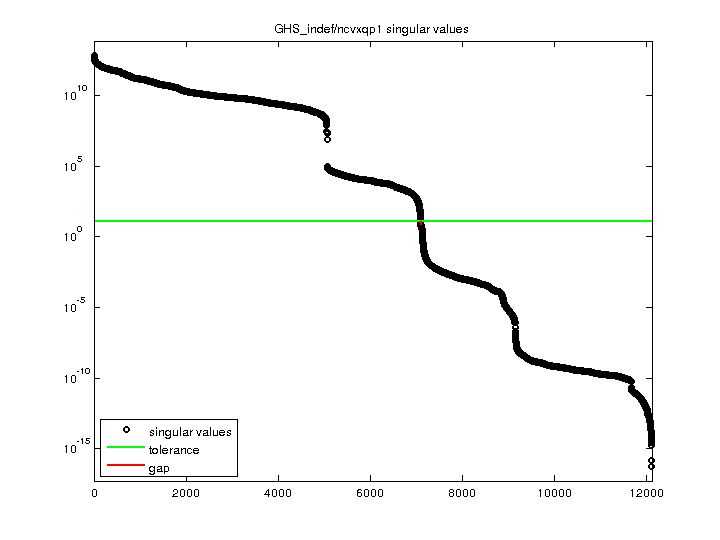

    GHS_indef/ncvxqp1 svd

    For a description of the statistics displayed above, click here.

    Maintained by Tim Davis, last updated 12-Mar-2014.
    Matrix pictures by cspy, a MATLAB function in the CSparse package.
    Matrix graphs by Yifan Hu, AT&T Labs Visualization Group.
