Matrix: GHS_indef/blockqp1
Description: Gould, Hu, & Scott: QP with block structure (CUTEr)
|
| (undirected graph drawing) |
 |
| Matrix properties | |
| number of rows | 60,012 |
| number of columns | 60,012 |
| nonzeros | 640,033 |
| structural full rank? | yes |
| structural rank | 60,012 |
| # of blocks from dmperm | 1 |
| # strongly connected comp. | 1 |
| explicit zero entries | 0 |
| nonzero pattern symmetry | symmetric |
| numeric value symmetry | symmetric |
| type | real |
| structure | symmetric |
| Cholesky candidate? | no |
| positive definite? | no |
| author | N. Gould |
| editor | N. Gould |
| date | 1994 |
| kind | optimization problem |
| 2D/3D problem? | no |
| Ordering statistics: | result |
| nnz(chol(P*(A+A'+s*I)*P')) with AMD | 580,068 |
| Cholesky flop count | 6.6e+06 |
| nnz(L+U), no partial pivoting, with AMD | 1,100,124 |
| nnz(V) for QR, upper bound nnz(L) for LU, with COLAMD | 760,067 |
| nnz(R) for QR, upper bound nnz(U) for LU, with COLAMD | 1,800,690,080 |
For a description of the statistics displayed above, click here.
Maintained by Tim Davis, last updated 12-Mar-2014.

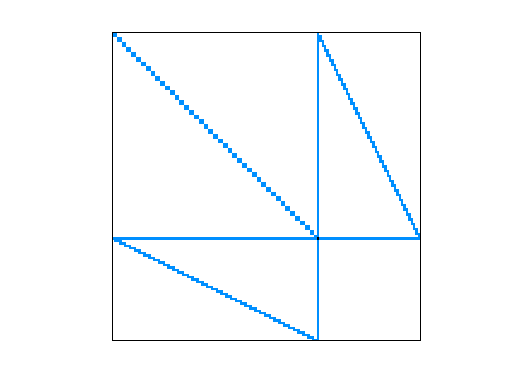

Matrix pictures by cspy, a MATLAB function in the CSparse package.
