Matrix properties
number of rows	2,410
number of columns	2,410
nonzeros	54,840
structural full rank?	yes
structural rank	2,410
# of blocks from dmperm	2
# strongly connected comp.	2
explicit zero entries	0
nonzero pattern symmetry	symmetric
numeric value symmetry	symmetric
type	real
structure	symmetric
Cholesky candidate?	yes
positive definite?	yes

author	A. Baggag, Y. Saad
editor	A. Baggag, Y. Saad
date	1994
kind	computational fluid dynamics problem
2D/3D problem?	yes

Ordering statistics:	result
nnz(chol(P*(A+A'+s*I)*P')) with AMD	49,093
Cholesky flop count	1.2e+06
nnz(L+U), no partial pivoting, with AMD	95,776
nnz(V) for QR, upper bound nnz(L) for LU, with COLAMD	61,363
nnz(R) for QR, upper bound nnz(U) for LU, with COLAMD	163,579

SVD-based statistics:
norm(A)	6.96199e+07
min(svd(A))	7.65118e-05
cond(A)	9.09923e+11
rank(A)	2,410
sprank(A)-rank(A)	0
null space dimension	0
full numerical rank?	yes

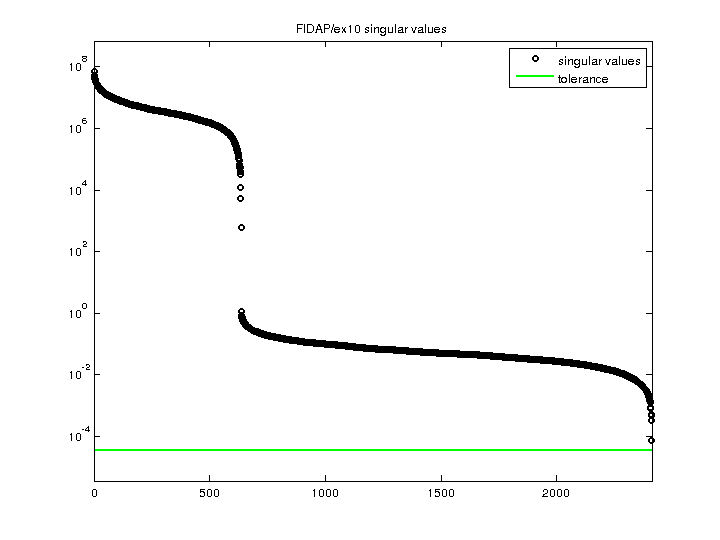

singular values (MAT file):	click here
SVD method used:	s = svd (full (A)) ;
status:	ok

For a description of the statistics displayed above, click here.
