Matrix: Dziekonski/gsm_106857

Description: High-order vector finite element method in EM

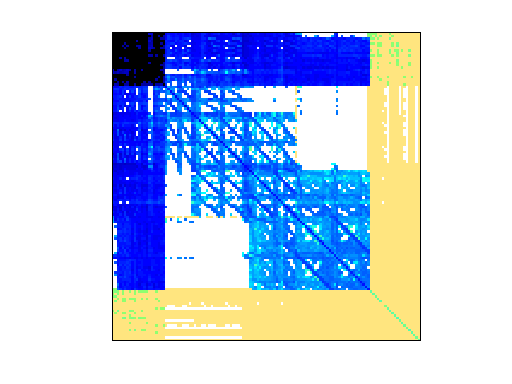

Dziekonski/gsm_106857 graph
(undirected graph drawing)


  • Home page of the UF Sparse Matrix Collection
  • Matrix group: Dziekonski
  • Click here for a description of the Dziekonski group.
  • Click here for a list of all matrices
  • Click here for a list of all matrix groups
  • download as a MATLAB mat-file, file size: 198 MB. Use UFget(2329) or UFget('Dziekonski/gsm_106857') in MATLAB.
  • download in Matrix Market format, file size: 146 MB.
  • download in Rutherford/Boeing format, file size: 136 MB.

    Matrix properties
    number of rows589,446
    number of columns589,446
    structural full rank?yes
    structural rank589,446
    # of blocks from dmperm1
    # strongly connected comp.1
    explicit zero entries0
    nonzero pattern symmetrysymmetric
    numeric value symmetrysymmetric
    Cholesky candidate?no
    positive definite?no

    authorA. Dziekonski, A. Lamecki, M. Mrozowski
    editorT. Davis
    kindelectromagnetics problem
    2D/3D problem?yes

    Additional fieldssize and type
    bfull 589446-by-1


    High order vector finite element method in electromagnetics
    The matrices came from analysis of a 9-th order microwave
    combline filter with second order (LT\QN) vector finite elements
    with different mesh quality. The matrices were used as an
    example in our paper [1].
    gsm_106857 - real symmetric matrix (589446 x 589446) and
        21758924 nonzero elements. First 98577 unknowns corresponds
        to lowest level (CT\LN) base functions.
    All matrices are sparse and come with right-hand-sides.
    [1] GPU Acceleration of Multilevel Solvers for Analysis of
    Microwave Components with Finite Element Method, A. Dziekonski,
    A. Lamecki, A., and M. Mrozowski, M., IEEE Microwave and
    Wireless Components Letters, vol 20, number 12,
    Dec 2010.

    Ordering statistics:result
    nnz(chol(P*(A+A'+s*I)*P')) with AMD184,098,449
    Cholesky flop count1.9e+11
    nnz(L+U), no partial pivoting, with AMD367,607,452
    nnz(V) for QR, upper bound nnz(L) for LU, with COLAMD433,129,917
    nnz(R) for QR, upper bound nnz(U) for LU, with COLAMD1,001,317,649
