Matrix: DRIVCAV/cavity07

Description: Driven Cavity 10 x 10, Reynolds number: 400

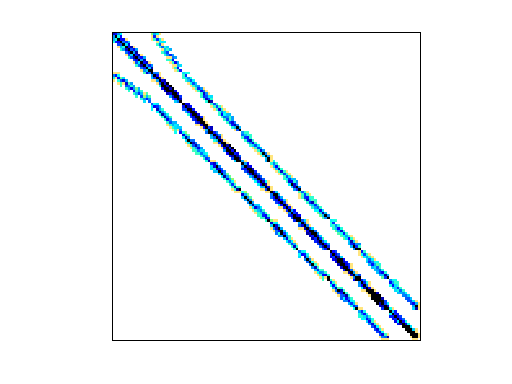

DRIVCAV/cavity07 graph DRIVCAV/cavity07 graph
(bipartite graph drawing) (graph drawing of A+A')

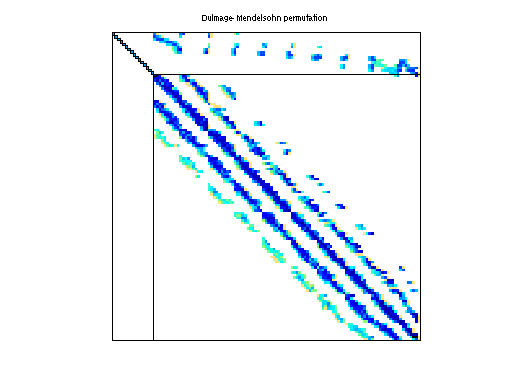

DRIVCAV/cavity07 dmperm of DRIVCAV/cavity07
scc of DRIVCAV/cavity07

  • Home page of the UF Sparse Matrix Collection
  • Matrix group: DRIVCAV
  • Click here for a description of the DRIVCAV group.
  • Click here for a list of all matrices
  • Click here for a list of all matrix groups
  • download as a MATLAB mat-file, file size: 224 KB. Use UFget(386) or UFget('DRIVCAV/cavity07') in MATLAB.
  • download in Matrix Market format, file size: 329 KB.
  • download in Rutherford/Boeing format, file size: 277 KB.

    Matrix properties
    number of rows1,182
    number of columns1,182
    nonzeros32,702
    structural full rank?yes
    structural rank1,182
    # of blocks from dmperm162
    # strongly connected comp.162
    explicit zero entries45
    nonzero pattern symmetry 90%
    numeric value symmetry 0%
    typereal
    structureunsymmetric
    Cholesky candidate?no
    positive definite?no

    authorA. Chapman
    editorA. Baggag, Y. Saad
    date1996
    kindsubsequent computational fluid dynamics problem
    2D/3D problem?yes

    Additional fieldssize and type
    bfull 1182-by-1
    xfull 1182-by-1

    Notes:

    next: DRIVCAV/cavity08 first: DRIVCAV/cavity05
    pattern is the same as DRIVCAV/cavity05


    Ordering statistics:result
    nnz(chol(P*(A+A'+s*I)*P')) with AMD33,060
    Cholesky flop count1.2e+06
    nnz(L+U), no partial pivoting, with AMD64,938
    nnz(V) for QR, upper bound nnz(L) for LU, with COLAMD42,951
    nnz(R) for QR, upper bound nnz(U) for LU, with COLAMD124,143

    Note that all matrix statistics (except nonzero pattern symmetry) exclude the 45 explicit zero entries.

    SVD-based statistics:
    norm(A)25.4596
    min(svd(A))1.98211e-05
    cond(A)1.28447e+06
    rank(A)1,182
    sprank(A)-rank(A)0
    null space dimension0
    full numerical rank?yes

    singular values (MAT file):click here
    SVD method used:s = svd (full (A)) ;
    status:ok

    DRIVCAV/cavity07 svd

    For a description of the statistics displayed above, click here.
