Matrix: DRIVCAV/cavity02

Description: Driven Cavity 5 x 5, Reynolds number: 200

DRIVCAV/cavity02 graph DRIVCAV/cavity02 graph
(bipartite graph drawing) (graph drawing of A+A')

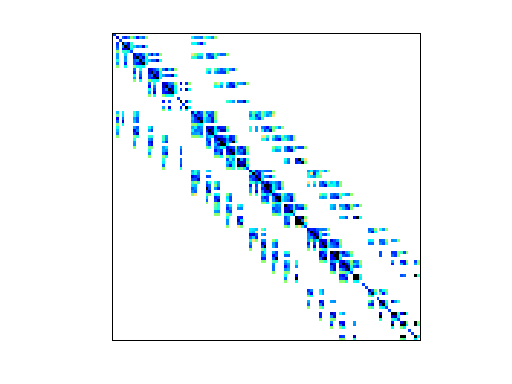

DRIVCAV/cavity02 dmperm of DRIVCAV/cavity02

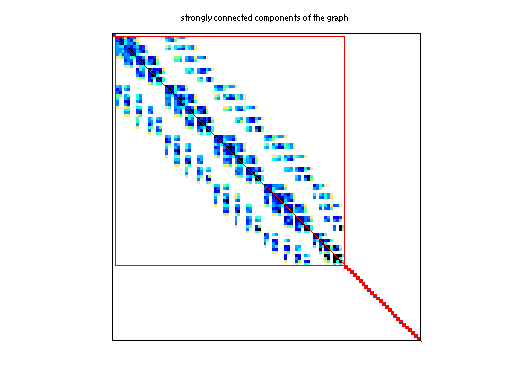

scc of DRIVCAV/cavity02

  • Home page of the UF Sparse Matrix Collection
  • Matrix group: DRIVCAV
  • Click here for a description of the DRIVCAV group.
  • Click here for a list of all matrices
  • Click here for a list of all matrix groups
  • download as a MATLAB mat-file, file size: 41 KB. Use UFget(381) or UFget('DRIVCAV/cavity02') in MATLAB.
  • download in Matrix Market format, file size: 63 KB.
  • download in Rutherford/Boeing format, file size: 53 KB.

    Matrix properties
    number of rows317
    number of columns317
    nonzeros5,923
    structural full rank?yes
    structural rank317
    # of blocks from dmperm82
    # strongly connected comp.82
    explicit zero entries1,404
    nonzero pattern symmetry 80%
    numeric value symmetry 0%
    typereal
    structureunsymmetric
    Cholesky candidate?no
    positive definite?no

    authorA. Chapman
    editorA. Baggag, Y. Saad
    date1996
    kindsubsequent computational fluid dynamics problem
    2D/3D problem?yes

    Additional fieldssize and type
    bfull 317-by-1
    xfull 317-by-1

    Notes:

    next: DRIVCAV/cavity03 first: DRIVCAV/cavity01
    pattern is the same as the transpose of DRIVCAV/cavity01


    Ordering statistics:result
    nnz(chol(P*(A+A'+s*I)*P')) with AMD3,959
    Cholesky flop count7.1e+04
    nnz(L+U), no partial pivoting, with AMD7,601
    nnz(V) for QR, upper bound nnz(L) for LU, with COLAMD5,800
    nnz(R) for QR, upper bound nnz(U) for LU, with COLAMD15,653

    Note that all matrix statistics (except nonzero pattern symmetry) exclude the 1404 explicit zero entries.

    SVD-based statistics:
    norm(A)24.9292
    min(svd(A))0.000306981
    cond(A)81207.5
    rank(A)317
    sprank(A)-rank(A)0
    null space dimension0
    full numerical rank?yes

    singular values (MAT file):click here
    SVD method used:s = svd (full (A)) ;
    status:ok

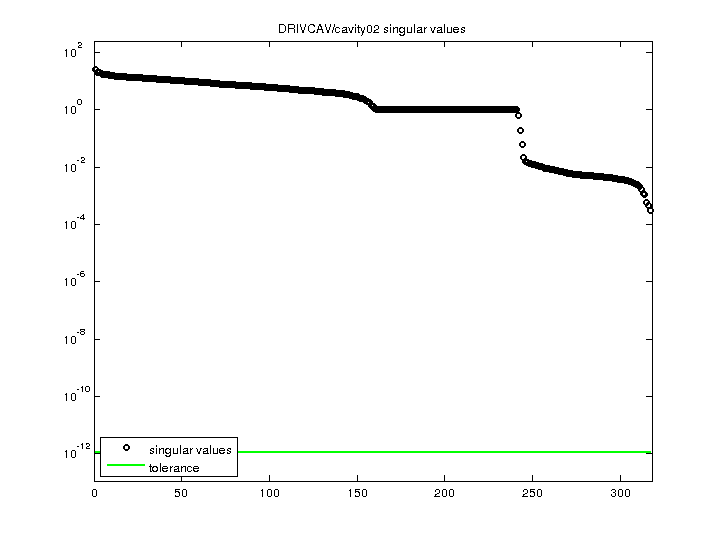

    DRIVCAV/cavity02 svd

    For a description of the statistics displayed above, click here.
