Matrix: DIMACS10/road_usa

Description: DIMACS10 set: clustering/road_usa

DIMACS10/road_usa graph
(undirected graph drawing)


DIMACS10/road_usa

  • Home page of the UF Sparse Matrix Collection
  • Matrix group: DIMACS10
  • Click here for a description of the DIMACS10 group.
  • Click here for a list of all matrices
  • Click here for a list of all matrix groups
  • download as a MATLAB mat-file, file size: 145 MB. Use UFget(2459) or UFget('DIMACS10/road_usa') in MATLAB.
  • download in Matrix Market format, file size: 113 MB.
  • download in Rutherford/Boeing format, file size: 107 MB.

    Matrix properties
    number of rows23,947,347
    number of columns23,947,347
    nonzeros57,708,624
    # strongly connected comp.1
    explicit zero entries0
    nonzero pattern symmetrysymmetric
    numeric value symmetrysymmetric
    typebinary
    structuresymmetric
    Cholesky candidate?no
    positive definite?no

    authorunknown
    editorH. Meyerhenke
    date2011
    kindundirected graph
    2D/3D problem?no

    Notes:

    10th DIMACS Implementation Challenge:

    http://www.cc.gatech.edu/dimacs10/index.shtml

    As stated on their main website (
    http://dimacs.rutgers.edu/Challenges/ ), the "DIMACS Implementation
    Challenges address questions of determining realistic algorithm
    performance where worst case analysis is overly pessimistic and
    probabilistic models are too unrealistic: experimentation can provide
    guides to realistic algorithm performance where analysis fails."

    For the 10th DIMACS Implementation Challenge, the two related
    problems of graph partitioning and graph clustering were chosen.
    Graph partitioning and graph clustering are among the aforementioned
    questions or problem areas where theoretical and practical results
    deviate significantly from each other, so that experimental outcomes
    are of particular interest.

    Problem Motivation

    Graph partitioning and graph clustering are ubiquitous subtasks in
    many application areas. Generally speaking, both techniques aim at
    the identification of vertex subsets with many internal and few
    external edges. To name only a few, problems addressed by graph
    partitioning and graph clustering algorithms are:

        * What are the communities within an (online) social network?
        * How do I speed up a numerical simulation by mapping it
            efficiently onto a parallel computer?
        * How must components be organized on a computer chip such that
            they can communicate efficiently with each other?
        * What are the segments of a digital image?
        * Which functions are certain genes (most likely) responsible
            for?

    Challenge Goals

        * One goal of this Challenge is to create a reproducible picture
            of the state-of-the-art in the area of graph partitioning
            (GP) and graph clustering (GC) algorithms. To this end we
            are identifying a standard set of benchmark instances and
            generators.

        * Moreover, after initiating a discussion with the community, we
            would like to establish the most appropriate problem
            formulations and objective functions for a variety of
            applications.

        * Another goal is to enable current researchers to compare their
            codes with each other, in hopes of identifying the most
            effective algorithmic innovations that have been proposed.

        * The final goal is to publish proceedings containing results
            presented at the Challenge workshop, and a book containing
            the best of the proceedings papers.

    Problems Addressed

    The precise problem formulations need to be established in the course
    of the Challenge. The descriptions below serve as a starting point.

        * Graph partitioning:

          The most common formulation of the graph partitioning problem
          for an undirected graph G = (V,E) asks for a division of V into
          k pairwise disjoint subsets (partitions) such that all
          partitions are of approximately equal size and the edge-cut,
          i.e., the total number of edges having their incident nodes in
          different subdomains, is minimized. The problem is known to be
          NP-hard.

        * Graph clustering:

          Clustering is an important tool for investigating the
          structural properties of data. Generally speaking, clustering
          refers to the grouping of objects such that objects in the same
          cluster are more similar to each other than to objects of
          different clusters. The similarity measure depends on the
          underlying application. Clustering graphs usually refers to the
          identification of vertex subsets (clusters) that have
          significantly more internal edges (to vertices of the same
          cluster) than external ones (to vertices of another cluster).

    There are 10 data sets in the DIMACS10 collection:

    Kronecker:  synthetic graphs from the Graph500 benchmark
    dyn-frames: frames from a 2D dynamic simulation
    Delaunay:   Delaunay triangulations of random points in the plane
    coauthor:   citation and co-author networks
    streets:    real-world street networks
    Walshaw:    Chris Walshaw's graph partitioning archive
    matrix:     graphs from the UF collection (not added here)
    random:     random geometric graphs (random points in the unit square)
    clustering: real-world graphs commonly used as benchmarks
    numerical:  graphs from numerical simulation

    Some of the graphs already exist in the UF Collection.  In some cases,
    the original graph is unsymmetric, with values, whereas the DIMACS
    graph is the symmetrized pattern of A+A'.  Rather than add duplicate
    patterns to the UF Collection, a MATLAB script is provided at
    http://www.cise.ufl.edu/research/sparse/dimacs10 which downloads
    each matrix from the UF Collection via UFget, and then performs whatever
    operation is required to convert the matrix to the DIMACS graph problem.
    Also posted at that page is a MATLAB code (metis_graph) for reading the
    DIMACS *.graph files into MATLAB.


    clustering:  Clustering Benchmarks

    These real-world graphs are often used as benchmarks in the graph
    clustering and community detection communities.  All but 4 of the 27
    graphs already appear in the UF collection in other groups.  The
    DIMACS10 version is always symmetric, binary, and with zero-free
    diagonal.  The version in the UF collection may not have those
    properties, but in those cases, if the pattern of the UF matrix
    is symmetrized and the diagonal removed, the result is the DIMACS10
    graph.

    DIMACS10 graph:                 new?   UF matrix:
    ---------------                 ----   -------------
    clustering/adjnoun                     Newman/adjoun
    clustering/as-22july06                 Newman/as-22july06
    clustering/astro-ph                    Newman/astro-ph
    clustering/caidaRouterLevel      *     DIMACS10/caidaRouterLevel
    clustering/celegans_metabolic          Arenas/celegans_metabolic
    clustering/celegansneural              Newman/celegansneural
    clustering/chesapeake            *     DIMACS10/chesapeake
    clustering/cnr-2000                    LAW/cnr-2000
    clustering/cond-mat-2003               Newman/cond-mat-2003
    clustering/cond-mat-2005               Newman/cond-mat-2005
    clustering/cond-mat                    Newman/cond-mat
    clustering/dolphins                    Newman/dolphins
    clustering/email                       Arenas/email
    clustering/eu-2005                     LAW/eu-2005
    clustering/football                    Newman/football
    clustering/hep-th                      Newman/hep-th
    clustering/in-2004                     LAW/in-2004
    clustering/jazz                        Arenas/jazz
    clustering/karate                      Arenas/karate
    clustering/lesmis                      Newman/lesmis
    clustering/netscience                  Newman/netscience
    clustering/PGPgiantcompo               Arenas/PGPgiantcompo
    clustering/polblogs                    Newman/polblogs
    clustering/polbooks                    Newman/polbooks
    clustering/power                       Newman/power
    clustering/road_central          *     DIMACS10/road_central
    clustering/road_usa              *     DIMACS10/road_usa


    For a description of the statistics displayed above, click here.

    Maintained by Tim Davis, last updated 12-Mar-2014.

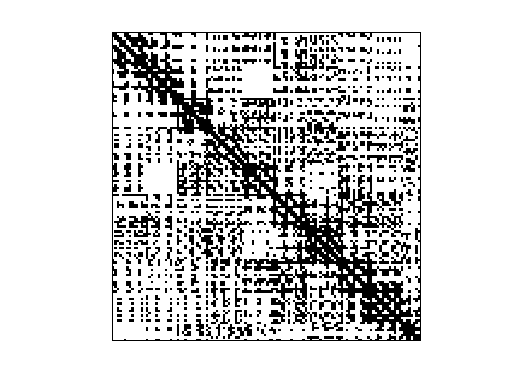

    Matrix pictures by cspy, a MATLAB function in the CSparse package.
    Matrix graphs by Yifan Hu, AT&T Labs Visualization Group.
