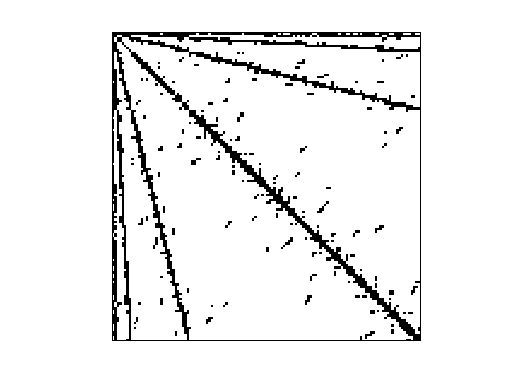

Matrix: DIMACS10/delaunay_n14

Description: DIMACS10 set: delaunay/delaunay_n14

 (undirected graph drawing)

• Matrix group: DIMACS10
• download as a MATLAB mat-file, file size: 173 KB. Use UFget(2469) or UFget('DIMACS10/delaunay_n14') in MATLAB.

 Matrix properties number of rows 16,384 number of columns 16,384 nonzeros 98,244 # strongly connected comp. 1 explicit zero entries 0 nonzero pattern symmetry symmetric numeric value symmetry symmetric type binary structure symmetric Cholesky candidate? no positive definite? no

 author M. Holtgrewe, P. Sanders, C. Schulz editor C. Schulz date 2011 kind undirected graph 2D/3D problem? no

Notes:

```10th DIMACS Implementation Challenge:

http://www.cc.gatech.edu/dimacs10/index.shtml

As stated on their main website (
http://dimacs.rutgers.edu/Challenges/ ), the "DIMACS Implementation
Challenges address questions of determining realistic algorithm
performance where worst case analysis is overly pessimistic and
probabilistic models are too unrealistic: experimentation can provide
guides to realistic algorithm performance where analysis fails."

For the 10th DIMACS Implementation Challenge, the two related
problems of graph partitioning and graph clustering were chosen.
Graph partitioning and graph clustering are among the aforementioned
questions or problem areas where theoretical and practical results
deviate significantly from each other, so that experimental outcomes
are of particular interest.

Problem Motivation

Graph partitioning and graph clustering are ubiquitous subtasks in
many application areas. Generally speaking, both techniques aim at
the identification of vertex subsets with many internal and few
external edges. To name only a few, problems addressed by graph
partitioning and graph clustering algorithms are:

* What are the communities within an (online) social network?
* How do I speed up a numerical simulation by mapping it
efficiently onto a parallel computer?
* How must components be organized on a computer chip such that
they can communicate efficiently with each other?
* What are the segments of a digital image?
* Which functions are certain genes (most likely) responsible
for?

Challenge Goals

* One goal of this Challenge is to create a reproducible picture
of the state-of-the-art in the area of graph partitioning
(GP) and graph clustering (GC) algorithms. To this end we
are identifying a standard set of benchmark instances and
generators.

* Moreover, after initiating a discussion with the community, we
would like to establish the most appropriate problem
formulations and objective functions for a variety of
applications.

* Another goal is to enable current researchers to compare their
codes with each other, in hopes of identifying the most
effective algorithmic innovations that have been proposed.

* The final goal is to publish proceedings containing results
presented at the Challenge workshop, and a book containing
the best of the proceedings papers.

The precise problem formulations need to be established in the course
of the Challenge. The descriptions below serve as a starting point.

* Graph partitioning:

The most common formulation of the graph partitioning problem
for an undirected graph G = (V,E) asks for a division of V into
k pairwise disjoint subsets (partitions) such that all
partitions are of approximately equal size and the edge-cut,
i.e., the total number of edges having their incident nodes in
different subdomains, is minimized. The problem is known to be
NP-hard.

* Graph clustering:

Clustering is an important tool for investigating the
structural properties of data. Generally speaking, clustering
refers to the grouping of objects such that objects in the same
cluster are more similar to each other than to objects of
different clusters. The similarity measure depends on the
underlying application. Clustering graphs usually refers to the
identification of vertex subsets (clusters) that have
significantly more internal edges (to vertices of the same
cluster) than external ones (to vertices of another cluster).

There are 10 data sets in the DIMACS10 collection:

Kronecker:  synthetic graphs from the Graph500 benchmark
dyn-frames: frames from a 2D dynamic simulation
Delaunay:   Delaunay triangulations of random points in the plane
coauthor:   citation and co-author networks
streets:    real-world street networks
Walshaw:    Chris Walshaw's graph partitioning archive
matrix:     graphs from the UF collection (not added here)
random:     random geometric graphs (random points in the unit square)
clustering: real-world graphs commonly used as benchmarks
numerical:  graphs from numerical simulation

Some of the graphs already exist in the UF Collection.  In some cases,
the original graph is unsymmetric, with values, whereas the DIMACS
graph is the symmetrized pattern of A+A'.  Rather than add duplicate
patterns to the UF Collection, a MATLAB script is provided at
each matrix from the UF Collection via UFget, and then performs whatever
operation is required to convert the matrix to the DIMACS graph problem.
Also posted at that page is a MATLAB code (metis_graph) for reading the
DIMACS *.graph files into MATLAB.

Delaunay:  Delaunay Graphs

These files have been generated as Delaunay triangulations of random
points in the unit square.

Engineering a scalable high quality graph partitioner,
M. Holtgrewe, P. Sanders, C. Schulz, IPDPS 2010
http://dx.doi.org/10.1109/IPDPS.2010.5470485
```

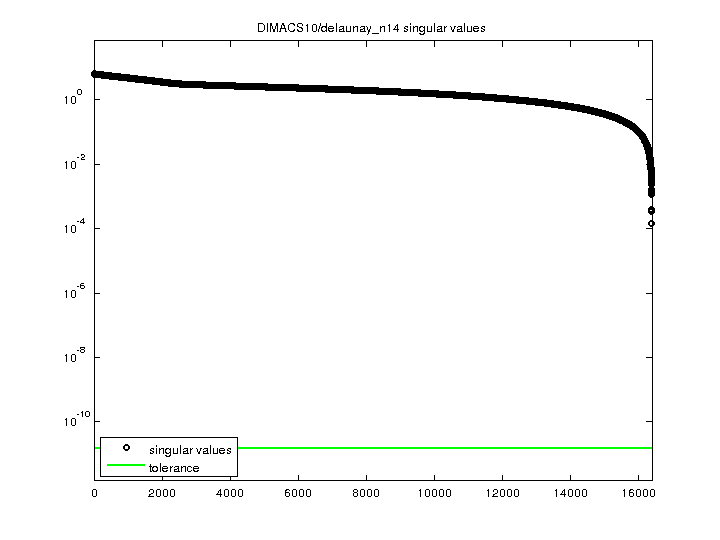

 SVD-based statistics: norm(A) 6.67947 min(svd(A)) 0.00014632 cond(A) 45649.9 rank(A) 16,384 null space dimension 0 full numerical rank? yes

 singular values (MAT file): click here SVD method used: s = svd (full (A)) ; status: ok
