Matrix: DIMACS10/belgium_osm

Description: DIMACS10 set: streets/belgium_osm

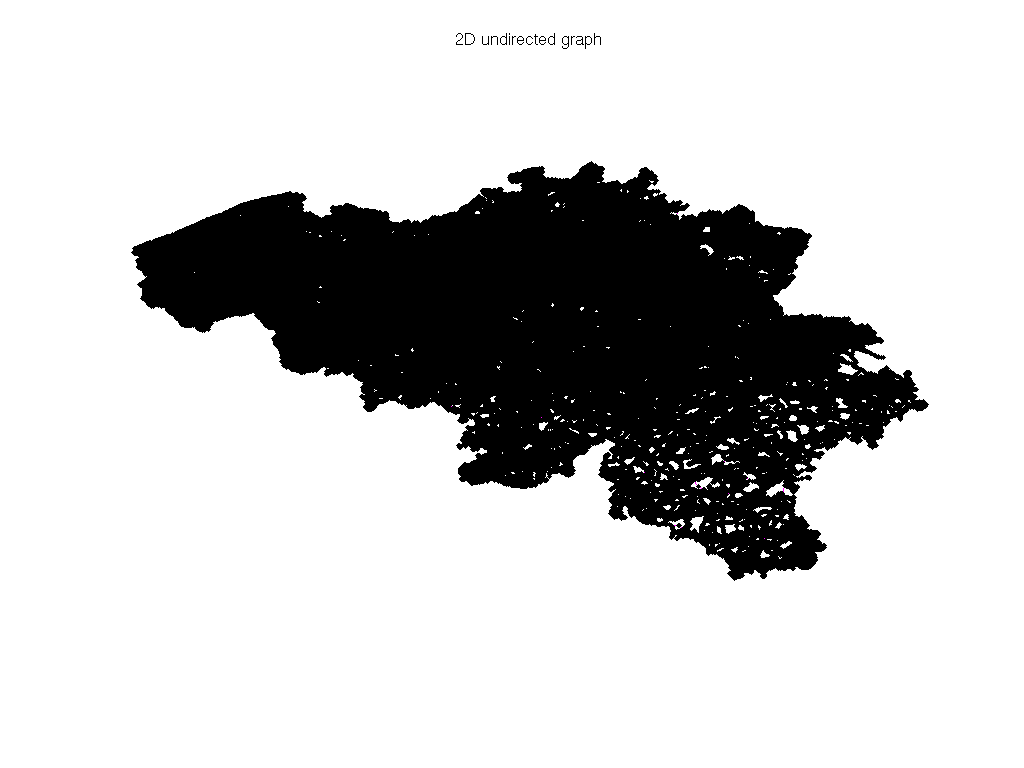

DIMACS10/belgium_osm graph
(undirected graph drawing)

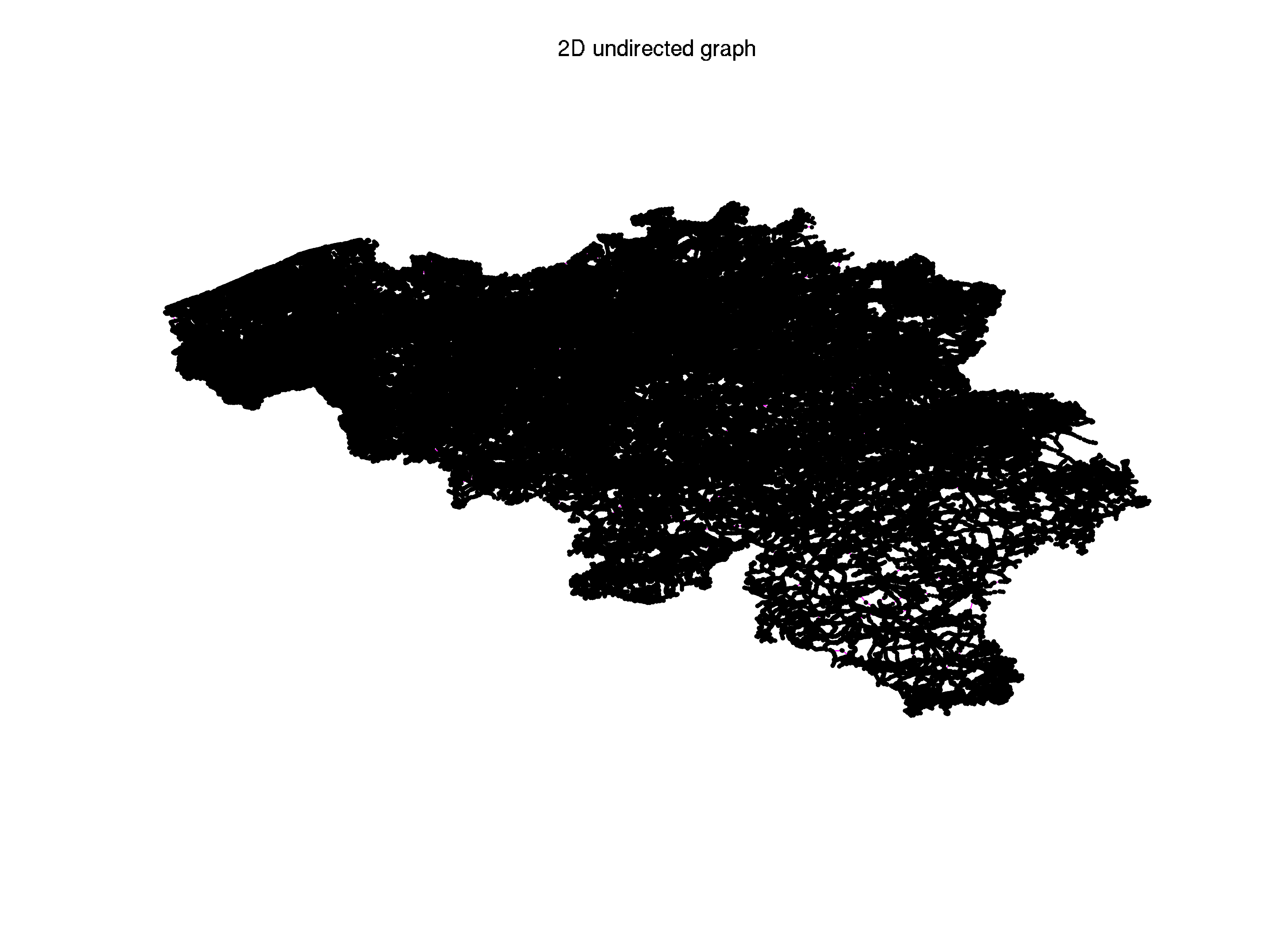

DIMACS10/belgium_osm graph

  • Home page of the UF Sparse Matrix Collection
  • Matrix group: DIMACS10
  • Click here for a description of the DIMACS10 group.
  • Click here for a list of all matrices
  • Click here for a list of all matrix groups
  • download as a MATLAB mat-file, file size: 12 MB. Use UFget(2510) or UFget('DIMACS10/belgium_osm') in MATLAB.
  • download in Matrix Market format, file size: 14 MB.
  • download in Rutherford/Boeing format, file size: 14 MB.

    Matrix properties
    number of rows1,441,295
    number of columns1,441,295
    # strongly connected comp.1
    explicit zero entries0
    nonzero pattern symmetrysymmetric
    numeric value symmetrysymmetric
    Cholesky candidate?no
    positive definite?no

    authorGeofabrik GmbH
    editorM. Kobitzsh
    kindundirected graph
    2D/3D problem?no

    Additional fieldssize and type
    coordfull 1441295-by-2


    10th DIMACS Implementation Challenge:
    As stated on their main website (                                   ), the "DIMACS Implementation
    Challenges address questions of determining realistic algorithm
    performance where worst case analysis is overly pessimistic and
    probabilistic models are too unrealistic: experimentation can provide
    guides to realistic algorithm performance where analysis fails."
    For the 10th DIMACS Implementation Challenge, the two related
    problems of graph partitioning and graph clustering were chosen.
    Graph partitioning and graph clustering are among the aforementioned
    questions or problem areas where theoretical and practical results
    deviate significantly from each other, so that experimental outcomes
    are of particular interest.
    Problem Motivation
    Graph partitioning and graph clustering are ubiquitous subtasks in
    many application areas. Generally speaking, both techniques aim at
    the identification of vertex subsets with many internal and few
    external edges. To name only a few, problems addressed by graph
    partitioning and graph clustering algorithms are:
        * What are the communities within an (online) social network?
        * How do I speed up a numerical simulation by mapping it
            efficiently onto a parallel computer?
        * How must components be organized on a computer chip such that
            they can communicate efficiently with each other?
        * What are the segments of a digital image?
        * Which functions are certain genes (most likely) responsible
    Challenge Goals
        * One goal of this Challenge is to create a reproducible picture
            of the state-of-the-art in the area of graph partitioning
            (GP) and graph clustering (GC) algorithms. To this end we
            are identifying a standard set of benchmark instances and
        * Moreover, after initiating a discussion with the community, we
            would like to establish the most appropriate problem
            formulations and objective functions for a variety of
        * Another goal is to enable current researchers to compare their
            codes with each other, in hopes of identifying the most
            effective algorithmic innovations that have been proposed.
        * The final goal is to publish proceedings containing results
            presented at the Challenge workshop, and a book containing
            the best of the proceedings papers.
    Problems Addressed
    The precise problem formulations need to be established in the course
    of the Challenge. The descriptions below serve as a starting point.
        * Graph partitioning:
          The most common formulation of the graph partitioning problem
          for an undirected graph G = (V,E) asks for a division of V into
          k pairwise disjoint subsets (partitions) such that all
          partitions are of approximately equal size and the edge-cut,
          i.e., the total number of edges having their incident nodes in
          different subdomains, is minimized. The problem is known to be
        * Graph clustering:
          Clustering is an important tool for investigating the
          structural properties of data. Generally speaking, clustering
          refers to the grouping of objects such that objects in the same
          cluster are more similar to each other than to objects of
          different clusters. The similarity measure depends on the
          underlying application. Clustering graphs usually refers to the
          identification of vertex subsets (clusters) that have
          significantly more internal edges (to vertices of the same
          cluster) than external ones (to vertices of another cluster).
    There are 10 data sets in the DIMACS10 collection:
    Kronecker:  synthetic graphs from the Graph500 benchmark
    dyn-frames: frames from a 2D dynamic simulation
    Delaunay:   Delaunay triangulations of random points in the plane
    coauthor:   citation and co-author networks
    streets:    real-world street networks
    Walshaw:    Chris Walshaw's graph partitioning archive
    matrix:     graphs from the UF collection (not added here)
    random:     random geometric graphs (random points in the unit square)
    clustering: real-world graphs commonly used as benchmarks
    numerical:  graphs from numerical simulation
    Some of the graphs already exist in the UF Collection.  In some cases,
    the original graph is unsymmetric, with values, whereas the DIMACS
    graph is the symmetrized pattern of A+A'.  Rather than add duplicate
    patterns to the UF Collection, a MATLAB script is provided at       which downloads
    each matrix from the UF Collection via UFget, and then performs whatever
    operation is required to convert the matrix to the DIMACS graph problem.
    Also posted at that page is a MATLAB code (metis_graph) for reading the
    DIMACS *.graph files into MATLAB.
    Street Networks
    The graphs Asia, Belgium, Europe, Germany, Great-Britain, Italy,
    Luxemburg and Netherlands are (roughly speaking) undirected and
    unweighted versions of the largest strongly connected component
    of the corresponding Open Street Map road networks. The Open
    Street Map road networks have been taken from                       and have been converted for DIMACS10
    by Moritz Kobitzsch (kobitzsch at as follows:
    First, we took the corresponding graph and extracted all routeable
    streets. Routable streets are objects in this file that are tagged
    using one of the following tags: motorway, motorway_link, trunk
    trunk_link, primary, primary_link, secondary, secondary_link,
    tertiary, tertiary_link, residential, unclassified, road,
    living_street, and service.  Next, we now compute the largest
    strongly connected component of this extracted open street map graph.
    Self-edges and parallel edges are removed afterwards.
    The DIMACS 10 graph is now the undirected and unweighted version
    of the constructed graph, i.e.  if there is an edge (u,v) but the
    reverse edge (v,u) is missing, we insert the reverse edge into the
    graph.  The XY coordinates of each node in the graph are preserved.

    For a description of the statistics displayed above, click here.

    Maintained by Tim Davis, last updated 12-Mar-2014.
    Matrix pictures by cspy, a MATLAB function in the CSparse package.
