Matrix: Brunetiere/thermal

Description: Noel.Brunetiere@lms.univ-poitiers.fr FEM, thermal problem

Brunetiere/thermal graph
(undirected graph drawing)

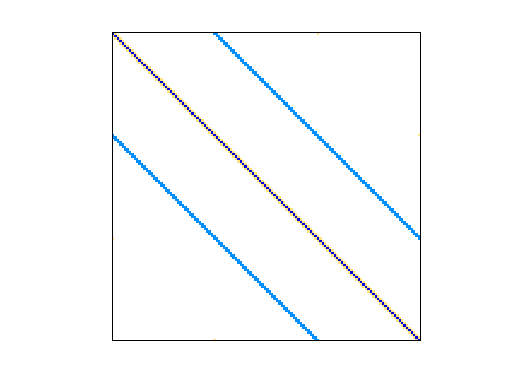

Brunetiere/thermal

  • Home page of the UF Sparse Matrix Collection
  • Matrix group: Brunetiere
  • Click here for a description of the Brunetiere group.
  • Click here for a list of all matrices
  • Click here for a list of all matrix groups
  • download as a MATLAB mat-file, file size: 540 KB. Use UFget(377) or UFget('Brunetiere/thermal') in MATLAB.
  • download in Matrix Market format, file size: 776 KB.
  • download in Rutherford/Boeing format, file size: 693 KB.

    Matrix properties
    number of rows3,456
    number of columns3,456
    nonzeros66,528
    structural full rank?yes
    structural rank3,456
    # of blocks from dmperm1
    # strongly connected comp.1
    explicit zero entries0
    nonzero pattern symmetrysymmetric
    numeric value symmetry 7%
    typereal
    structureunsymmetric
    Cholesky candidate?no
    positive definite?no

    authorN. Brunetiere
    editorT. Davis
    date2000
    kindthermal problem
    2D/3D problem?yes

    Ordering statistics:result
    nnz(chol(P*(A+A'+s*I)*P')) with AMD148,707
    Cholesky flop count8.7e+06
    nnz(L+U), no partial pivoting, with AMD293,958
    nnz(V) for QR, upper bound nnz(L) for LU, with COLAMD336,881
    nnz(R) for QR, upper bound nnz(U) for LU, with COLAMD621,837

    SVD-based statistics:
    norm(A)1.3235
    min(svd(A))0.122
    cond(A)10.8484
    rank(A)3,456
    sprank(A)-rank(A)0
    null space dimension0
    full numerical rank?yes

    singular values (MAT file):click here
    SVD method used:s = svd (full (A)) ;
    status:ok

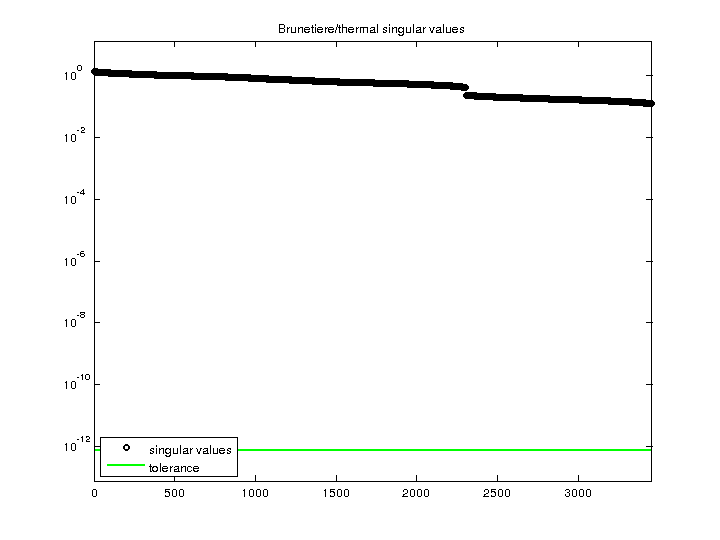

    Brunetiere/thermal svd

    For a description of the statistics displayed above, click here.
