Matrix: Bomhof/circuit_3

Description: Circuit DAE with BDF method & Newton. W. Bomhof, Univ. Utrecht

Bomhof/circuit_3 graph Bomhof/circuit_3 graph
(bipartite graph drawing) (graph drawing of A+A')

Bomhof/circuit_3 dmperm of Bomhof/circuit_3
scc of Bomhof/circuit_3

  • Home page of the UF Sparse Matrix Collection
  • Matrix group: Bomhof
  • Click here for a description of the Bomhof group.
  • Click here for a list of all matrices
  • Click here for a list of all matrix groups
  • download as a MATLAB mat-file, file size: 402 KB. Use UFget(372) or UFget('Bomhof/circuit_3') in MATLAB.
  • download in Matrix Market format, file size: 525 KB.
  • download in Rutherford/Boeing format, file size: 506 KB.

    Matrix properties
    number of rows12,127
    number of columns12,127
    structural full rank?yes
    structural rank12,127
    # of blocks from dmperm4,521
    # strongly connected comp.4,399
    explicit zero entries0
    nonzero pattern symmetry 77%
    numeric value symmetry 30%
    Cholesky candidate?no
    positive definite?no

    authorW. Bomhof
    editorT. Davis
    kindcircuit simulation problem
    2D/3D problem?no

    Additional fieldssize and type
    bfull 12127-by-1
    xfull 12127-by-1

    Ordering statistics:result
    nnz(chol(P*(A+A'+s*I)*P')) with AMD43,501
    Cholesky flop count2.0e+05
    nnz(L+U), no partial pivoting, with AMD74,875
    nnz(V) for QR, upper bound nnz(L) for LU, with COLAMD4,549,313
    nnz(R) for QR, upper bound nnz(U) for LU, with COLAMD12,277,850

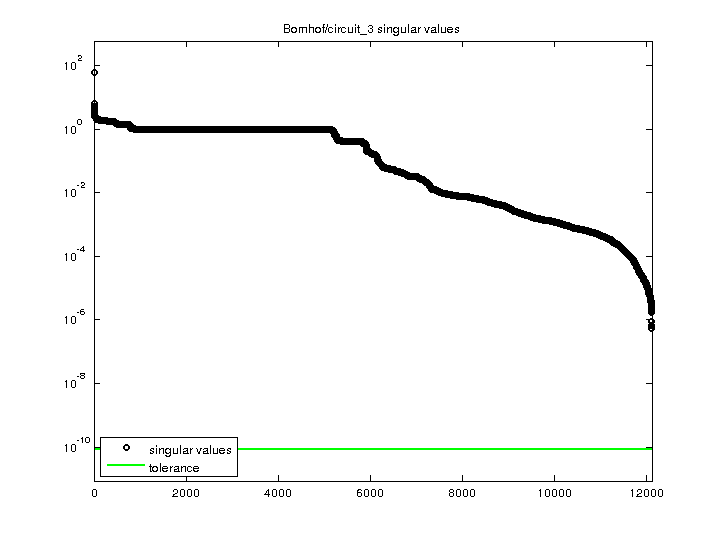

    SVD-based statistics:
    null space dimension0
    full numerical rank?yes

    singular values (MAT file):click here
    SVD method used:s = svd (full (A)) ;

    Bomhof/circuit_3 svd

    For a description of the statistics displayed above, click here.
