Matrix: Bindel/ted_AB

Description: FEM, coupled linear thermoeslasticity eqns on a bar. D Bindel, UC Berkeley

Bindel/ted_AB graph Bindel/ted_AB graph
(bipartite graph drawing) (graph drawing of A+A')


Bindel/ted_AB

  • Home page of the UF Sparse Matrix Collection
  • Matrix group: Bindel
  • Click here for a description of the Bindel group.
  • Click here for a list of all matrices
  • Click here for a list of all matrix groups
  • download as a MATLAB mat-file, file size: 2 MB. Use UFget(1407) or UFget('Bindel/ted_AB') in MATLAB.
  • download in Matrix Market format, file size: 4 MB.
  • download in Rutherford/Boeing format, file size: 3 MB.

    Matrix properties
    number of rows10,605
    number of columns10,605
    nonzeros522,387
    structural full rank?yes
    structural rank10,605
    # of blocks from dmperm1
    # strongly connected comp.1
    explicit zero entries0
    nonzero pattern symmetry 64%
    numeric value symmetry 0%
    typecomplex
    structureunsymmetric
    Cholesky candidate?no
    positive definite?no

    authorD. Bindel
    editorT. Davis
    date2006
    kindthermal problem
    2D/3D problem?yes

    Additional fieldssize and type
    w0full 1-by-1

    Ordering statistics:result
    nnz(chol(P*(A+A'+s*I)*P')) with AMD510,205
    Cholesky flop count2.6e+07
    nnz(L+U), no partial pivoting, with AMD1,009,805
    nnz(V) for QR, upper bound nnz(L) for LU, with COLAMD588,841
    nnz(R) for QR, upper bound nnz(U) for LU, with COLAMD2,028,390

    SVD-based statistics:
    norm(A)13.4857
    min(svd(A))2.82018e-14
    cond(A)4.78187e+14
    rank(A)10,604
    sprank(A)-rank(A)1
    null space dimension1
    full numerical rank?no
    singular value gap72918.5

    singular values (MAT file):click here
    SVD method used:s = svd (full (A)) ;
    status:ok

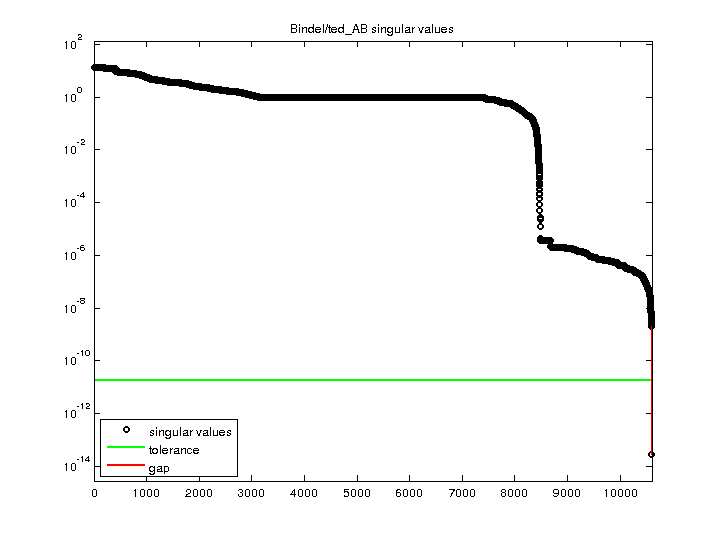

    Bindel/ted_AB svd

    For a description of the statistics displayed above, click here.
