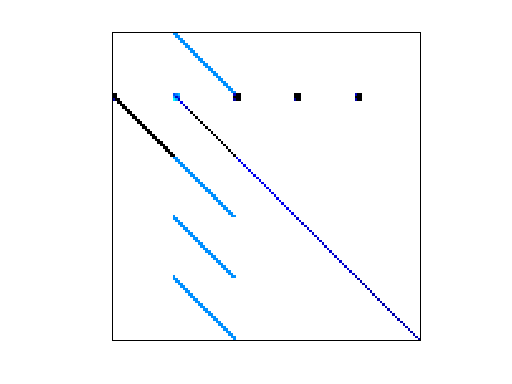

Matrix: Bai/tols1090

Description: TOLOSA MATRIX

Bai/tols1090 graph Bai/tols1090 graph
(bipartite graph drawing) (graph drawing of A+A')

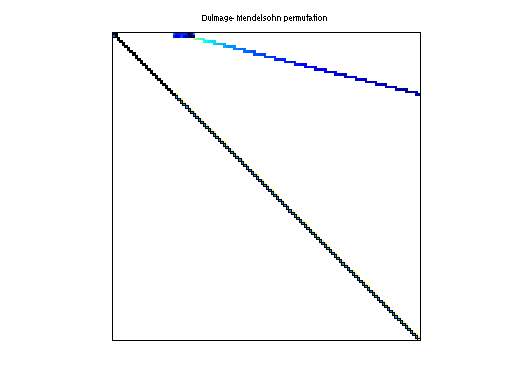

Bai/tols1090 dmperm of Bai/tols1090

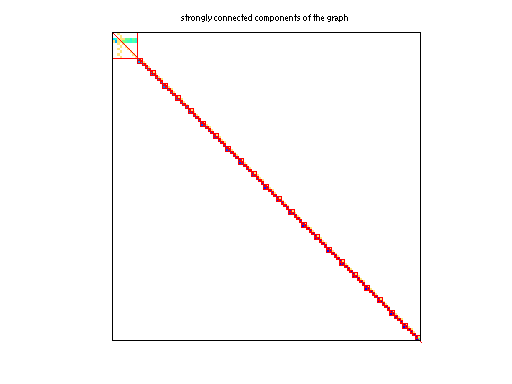

scc of Bai/tols1090

  • Home page of the UF Sparse Matrix Collection
  • Matrix group: Bai
  • Click here for a description of the Bai group.
  • Click here for a list of all matrices
  • Click here for a list of all matrix groups
  • download as a MATLAB mat-file, file size: 21 KB. Use UFget(1637) or UFget('Bai/tols1090') in MATLAB.
  • download in Matrix Market format, file size: 23 KB.
  • download in Rutherford/Boeing format, file size: 20 KB.

    Matrix properties
    number of rows1,090
    number of columns1,090
    nonzeros3,546
    structural full rank?yes
    structural rank1,090
    # of blocks from dmperm1,073
    # strongly connected comp.801
    explicit zero entries0
    nonzero pattern symmetry 32%
    numeric value symmetry 0%
    typereal
    structureunsymmetric
    Cholesky candidate?no
    positive definite?no

    authorS. Godet-Thobie
    editorZ. Bai, D. Day, J. Demmel, J. Dongarra
    date1991
    kindcomputational fluid dynamics problem
    2D/3D problem?yes

    Ordering statistics:result
    nnz(chol(P*(A+A'+s*I)*P')) with AMD3,339
    Cholesky flop count3.2e+04
    nnz(L+U), no partial pivoting, with AMD5,588
    nnz(V) for QR, upper bound nnz(L) for LU, with COLAMD3,387
    nnz(R) for QR, upper bound nnz(U) for LU, with COLAMD5,895

    SVD-based statistics:
    norm(A)1.8225e+06
    min(svd(A))0.995312
    cond(A)1.83108e+06
    rank(A)1,090
    sprank(A)-rank(A)0
    null space dimension0
    full numerical rank?yes

    singular values (MAT file):click here
    SVD method used:s = svd (full (A)) ;
    status:ok

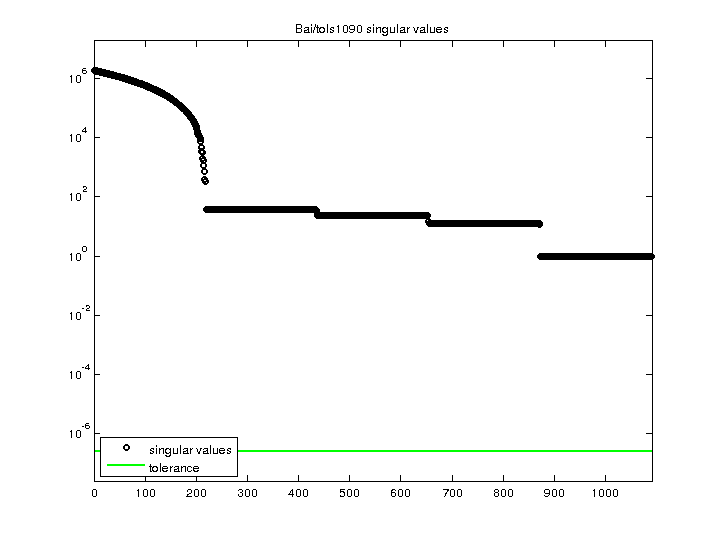

    Bai/tols1090 svd

    For a description of the statistics displayed above, click here.

    Maintained by Tim Davis, last updated 12-Mar-2014.
    Matrix pictures by cspy, a MATLAB function in the CSparse package.
    Matrix graphs by Yifan Hu, AT&T Labs Visualization Group.
