Matrix: Bai/rdb800l

Description: REACTION-DIFFUSION BRUSSELATOR MODEL

Bai/rdb800l graph
(undirected graph drawing)


Bai/rdb800l

  • Home page of the UF Sparse Matrix Collection
  • Matrix group: Bai
  • Click here for a description of the Bai group.
  • Click here for a list of all matrices
  • Click here for a list of all matrix groups
  • download as a MATLAB mat-file, file size: 8 KB. Use UFget(1636) or UFget('Bai/rdb800l') in MATLAB.
  • download in Matrix Market format, file size: 15 KB.
  • download in Rutherford/Boeing format, file size: 9 KB.

    Matrix properties
    number of rows800
    number of columns800
    nonzeros4,640
    structural full rank?yes
    structural rank800
    # of blocks from dmperm1
    # strongly connected comp.1
    explicit zero entries0
    nonzero pattern symmetrysymmetric
    numeric value symmetry 79%
    typereal
    structureunsymmetric
    Cholesky candidate?no
    positive definite?no

    authorK. Meerbergen
    editorZ. Bai, D. Day, J. Demmel, J. Dongarra
    date1994
    kindcomputational fluid dynamics problem
    2D/3D problem?yes

    Ordering statistics:result
    nnz(chol(P*(A+A'+s*I)*P')) with AMD12,217
    Cholesky flop count3.2e+05
    nnz(L+U), no partial pivoting, with AMD23,634
    nnz(V) for QR, upper bound nnz(L) for LU, with COLAMD21,245
    nnz(R) for QR, upper bound nnz(U) for LU, with COLAMD38,238

    SVD-based statistics:
    norm(A)32.619
    min(svd(A))0.101036
    cond(A)322.847
    rank(A)800
    sprank(A)-rank(A)0
    null space dimension0
    full numerical rank?yes

    singular values (MAT file):click here
    SVD method used:s = svd (full (A)) ;
    status:ok

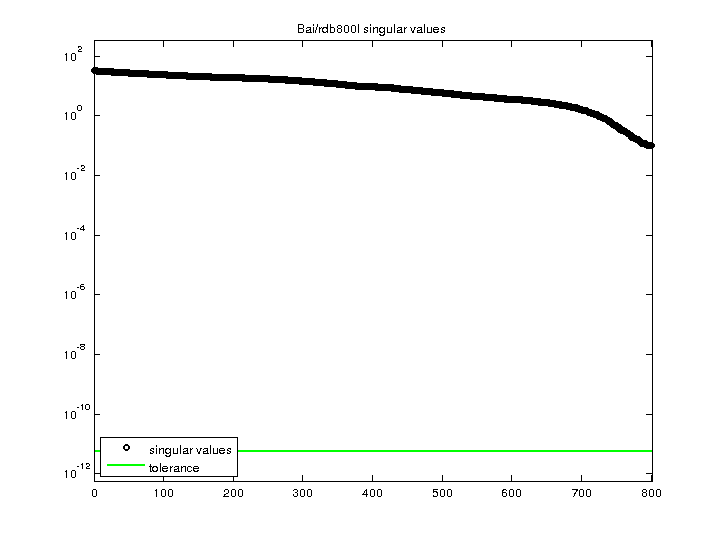

    Bai/rdb800l svd

    For a description of the statistics displayed above, click here.

    Maintained by Tim Davis, last updated 12-Mar-2014.
    Matrix pictures by cspy, a MATLAB function in the CSparse package.
    Matrix graphs by Yifan Hu, AT&T Labs Visualization Group.
