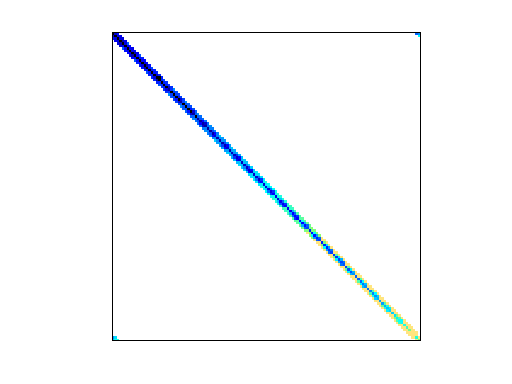

Matrix: Bai/cryg10000

Description: CRYSTAL GROWTH EIGENMODES C. YANG

Bai/cryg10000 graph Bai/cryg10000 graph
(bipartite graph drawing) (graph drawing of A+A')


Bai/cryg10000

  • Home page of the UF Sparse Matrix Collection
  • Matrix group: Bai
  • Click here for a description of the Bai group.
  • Click here for a list of all matrices
  • Click here for a list of all matrix groups
  • download as a MATLAB mat-file, file size: 445 KB. Use UFget(1612) or UFget('Bai/cryg10000') in MATLAB.
  • download in Matrix Market format, file size: 595 KB.
  • download in Rutherford/Boeing format, file size: 554 KB.

    Matrix properties
    number of rows10,000
    number of columns10,000
    nonzeros49,699
    structural full rank?yes
    structural rank10,000
    # of blocks from dmperm1
    # strongly connected comp.1
    explicit zero entries0
    nonzero pattern symmetry 100%
    numeric value symmetry 0%
    typereal
    structureunsymmetric
    Cholesky candidate?no
    positive definite?no

    authorC. Yang
    editorZ. Bai, D. Day, J. Demmel, J. Dongarra
    date1996
    kindmaterials problem
    2D/3D problem?yes

    Ordering statistics:result
    nnz(chol(P*(A+A'+s*I)*P')) with AMD204,647
    Cholesky flop count1.2e+07
    nnz(L+U), no partial pivoting, with AMD399,294
    nnz(V) for QR, upper bound nnz(L) for LU, with COLAMD343,315
    nnz(R) for QR, upper bound nnz(U) for LU, with COLAMD627,565

    SVD-based statistics:
    norm(A)43079
    min(svd(A))1.90366e-15
    cond(A)2.26296e+19
    rank(A)9,999
    sprank(A)-rank(A)1
    null space dimension1
    full numerical rank?no
    singular value gap7.61255e+07

    singular values (MAT file):click here
    SVD method used:s = svd (full (A)) ;
    status:ok

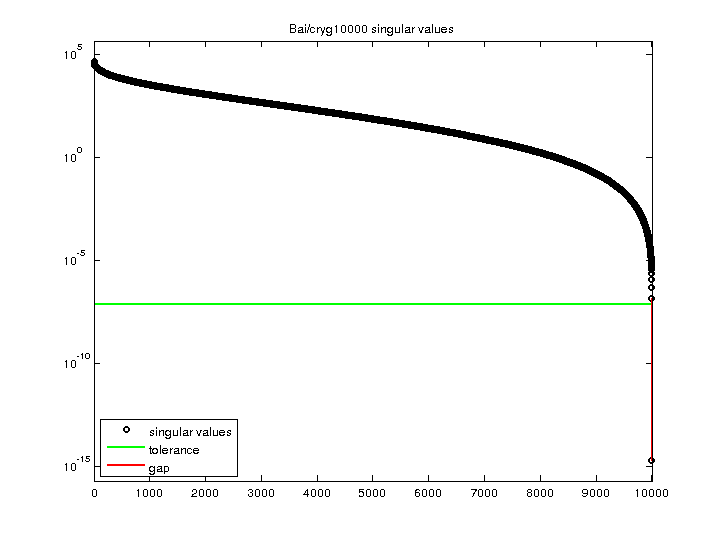

    Bai/cryg10000 svd

    For a description of the statistics displayed above, click here.

    Maintained by Tim Davis, last updated 12-Mar-2014.
    Matrix pictures by cspy, a MATLAB function in the CSparse package.
    Matrix graphs by Yifan Hu, AT&T Labs Visualization Group.
