Matrix: Averous/epb0

Description: Plate-fin heat exchanger w/ simple model (DAE) David.Averous@ensigct.fr

Averous/epb0 graph Averous/epb0 graph
(bipartite graph drawing) (graph drawing of A+A')

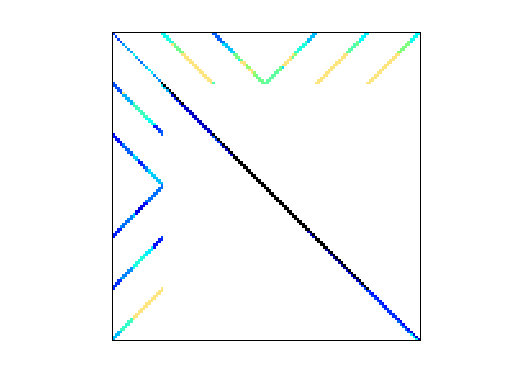

Averous/epb0

  • Home page of the UF Sparse Matrix Collection
  • Matrix group: Averous
  • Click here for a description of the Averous group.
  • Click here for a list of all matrices
  • Click here for a list of all matrix groups
  • download as a MATLAB mat-file, file size: 61 KB. Use UFget(287) or UFget('Averous/epb0') in MATLAB.
  • download in Matrix Market format, file size: 81 KB.
  • download in Rutherford/Boeing format, file size: 83 KB.

    Matrix properties
    number of rows1,794
    number of columns1,794
    nonzeros7,764
    structural full rank?yes
    structural rank1,794
    # of blocks from dmperm1
    # strongly connected comp.1
    explicit zero entries0
    nonzero pattern symmetry 50%
    numeric value symmetry 0%
    typereal
    structureunsymmetric
    Cholesky candidate?no
    positive definite?no

    authorD. Averous
    editorT. Davis
    date1998
    kindthermal problem
    2D/3D problem?yes

    Ordering statistics:result
    nnz(chol(P*(A+A'+s*I)*P')) with AMD12,532
    Cholesky flop count9.5e+04
    nnz(L+U), no partial pivoting, with AMD23,270
    nnz(V) for QR, upper bound nnz(L) for LU, with COLAMD8,662
    nnz(R) for QR, upper bound nnz(U) for LU, with COLAMD15,213

    SVD-based statistics:
    norm(A)0.574185
    min(svd(A))8.94855e-06
    cond(A)64165.1
    rank(A)1,794
    sprank(A)-rank(A)0
    null space dimension0
    full numerical rank?yes

    singular values (MAT file):click here
    SVD method used:s = svd (full (A)) ;
    status:ok

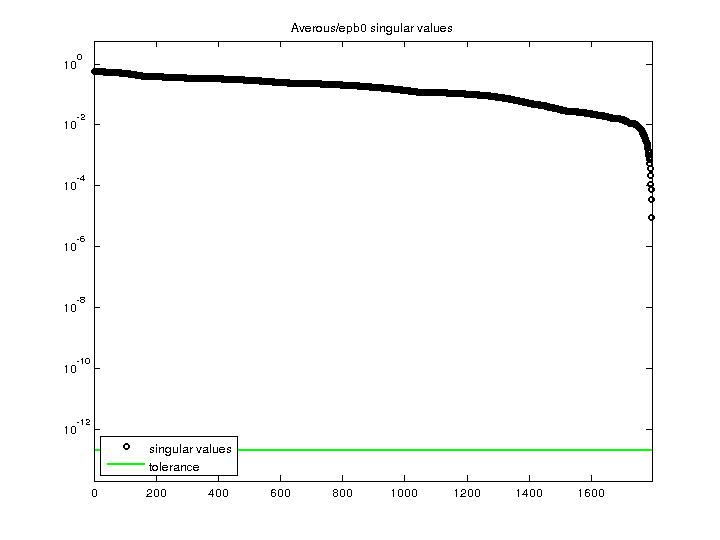

    Averous/epb0 svd

    For a description of the statistics displayed above, click here.
