Matrix: Arenas/PGPgiantcompo

Description: largest connected component in graph of PGP users

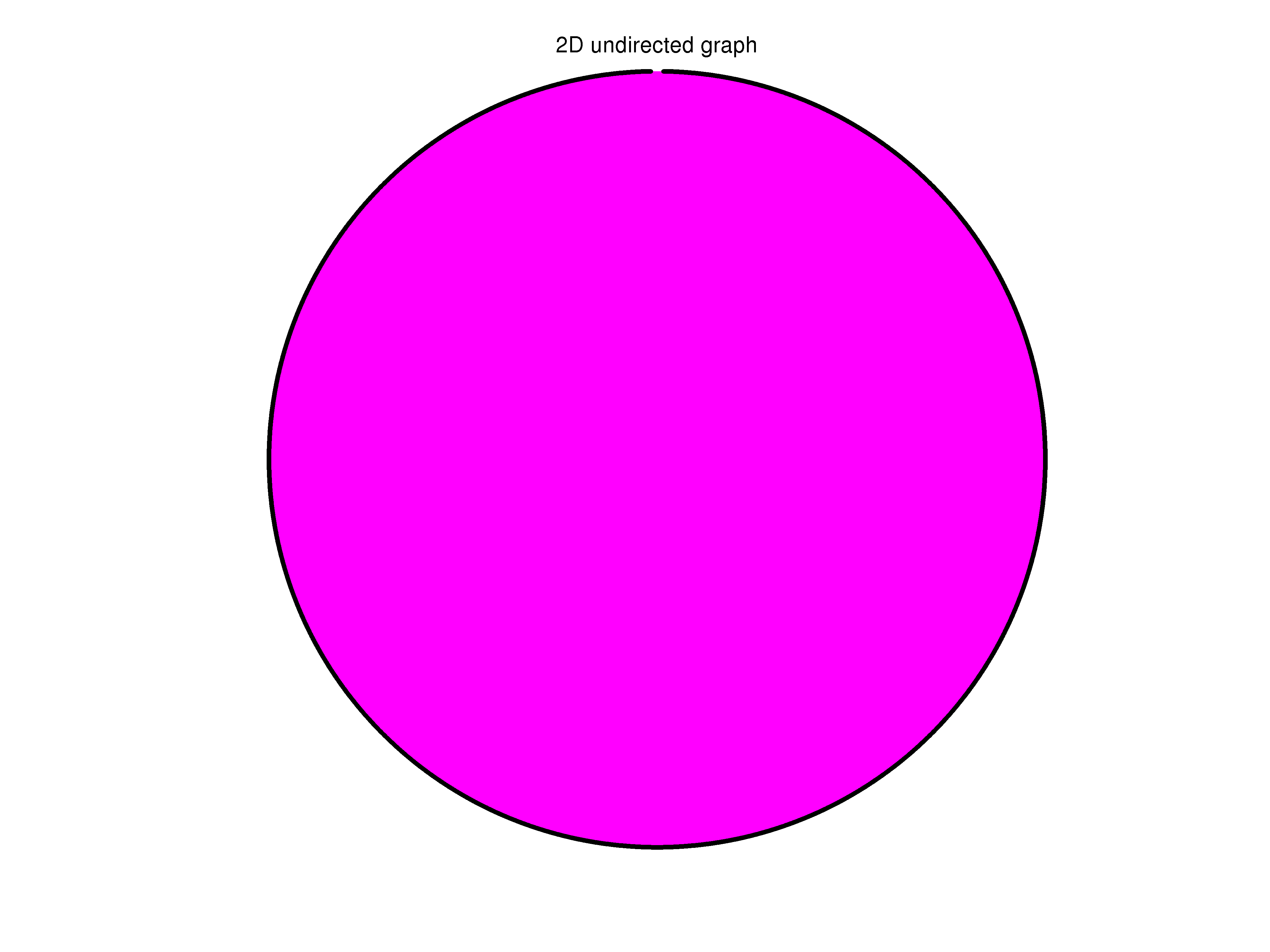

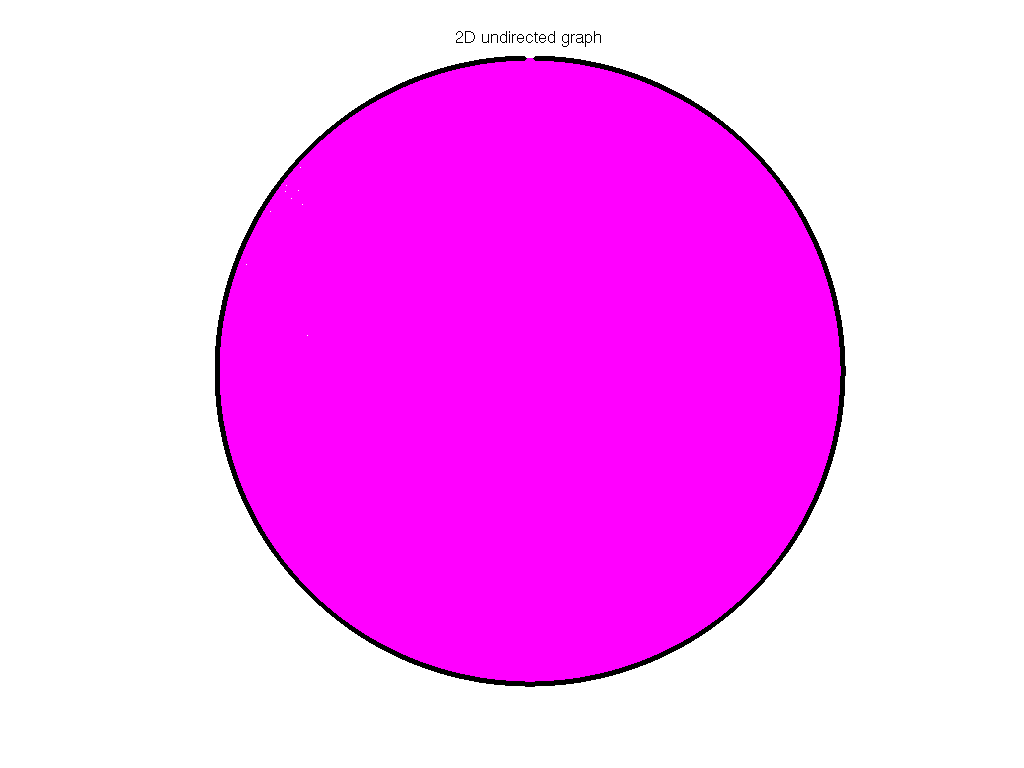

Arenas/PGPgiantcompo graph
(undirected graph drawing)

Arenas/PGPgiantcompo graph

  • Home page of the UF Sparse Matrix Collection
  • Matrix group: Arenas
  • Click here for a description of the Arenas group.
  • Click here for a list of all matrices
  • Click here for a list of all matrix groups
  • download as a MATLAB mat-file, file size: 200 KB. Use UFget(2405) or UFget('Arenas/PGPgiantcompo') in MATLAB.
  • download in Matrix Market format, file size: 124 KB.
  • download in Rutherford/Boeing format, file size: 103 KB.

    Matrix properties
    number of rows10,680
    number of columns10,680
    # strongly connected comp.1
    explicit zero entries0
    nonzero pattern symmetrysymmetric
    numeric value symmetrysymmetric
    Cholesky candidate?no
    positive definite?no

    authorM. Boguna, R. Pastor-Satorras, A. Diaz-Guillera, A. Arenas
    editorA. Arenas
    kindundirected multigraph
    2D/3D problem?no

    Additional fieldssize and type
    coordfull 10680-by-2


    Arenas set: PGP network
    Graph of the largest component of the network of users of the
    Pretty-Good-Privacy algorithm for secure information interchange.
    Data compiled by members of Alex Arenas' group.
    Reference: M. Boguna, R. Pastor-Satorras, A.  Diaz-Guilera and
    A. Arenas, Physical Review E, vol. 70, 056122 (2004).

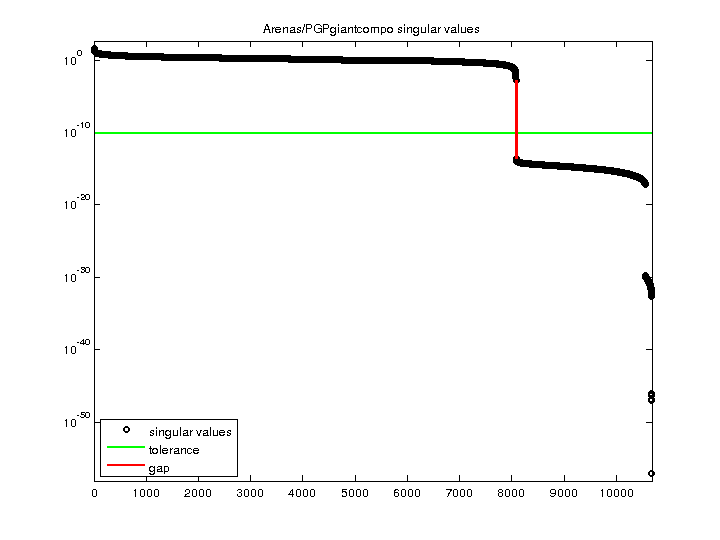

    SVD-based statistics:
    null space dimension2,602
    full numerical rank?no
    singular value gap6.03273e+10

    singular values (MAT file):click here
    SVD method used:s = svd (full (A)) ;

    Arenas/PGPgiantcompo svd

    For a description of the statistics displayed above, click here.
