Matrix: AG-Monien/se

Description: shuffle-exchange graph sequence

AG-Monien/se graph
(undirected graph drawing)


  • Home page of the UF Sparse Matrix Collection
  • Matrix group: AG-Monien
  • Click here for a description of the AG-Monien group.
  • Click here for a list of all matrices
  • Click here for a list of all matrix groups
  • download as a MATLAB mat-file, file size: 699 KB. Use UFget(2440) or UFget('AG-Monien/se') in MATLAB.
  • download in Matrix Market format, file size: 575 KB.
  • download in Rutherford/Boeing format, file size: 544 KB.

    Matrix properties
    number of rows32,768
    number of columns32,768
    # strongly connected comp.1
    explicit zero entries0
    nonzero pattern symmetrysymmetric
    numeric value symmetrysymmetric
    Cholesky candidate?no
    positive definite?no

    authorR. Diekmann, R. Preis
    editorR. Diekmann, R. Preis
    kindundirected graph sequence
    2D/3D problem?no

    Additional fieldssize and type
    Gcell 13-by-1
    Gnamecell 13-by-1


    AG-Monien Graph Collection, Ralf Diekmann and Robert Preis
    A collection of test graphs from various sources.  Many of the graphs
    include XY or XYZ coordinates.  This set also includes some graphs from
    the Harwell-Boeing collection, the NASA matrices, and some random matrices
    which are not included here in the AG-Monien/ group of the UF Collection.
    In addition, two graphs already appear in other groups:
       AG-Monien/big : same as Nasa/barth5, Pothen/barth5 (not included here)
       AG-Monien/cage_3_11 : same as Pajek/GD98_c (included here)
    The AG-Monien/GRID subset is not included.  It contains square grids that
    are already well-represented in the UF Collection.
    Six of the problem sets are included as sequences, each sequence being
    a single problem instance in the UF Collection:
       bfly:  10 butterfly graphs 3..12
       cage:  45 cage graphs 3..12
       cca:   10 cube-connected cycle graphs, no wrap
       ccc:   10 cube-connected cycle graphs, with wrap
       debr:  18 De Bruijn graphs
       se:    13 shuffle-exchange graphs
    Problem.aux.G{:} are the graphs in these 6 sequences.  Problem.aux.Gname{:}
    are the original names of each graph, and Problemm.aux.Gcoord{:} are the
    xy or xyz coordinates of each node, if present.
    Graphs in the se sequence:
         1 : SE3          :       8 nodes      10 edges      20 nonzeros
         2 : SE4          :      16 nodes      21 edges      42 nonzeros
         3 : SE5          :      32 nodes      46 edges      92 nonzeros
         4 : SE6          :      64 nodes      93 edges     186 nonzeros
         5 : SE7          :     128 nodes     190 edges     380 nonzeros
         6 : SE8          :     256 nodes     381 edges     762 nonzeros
         7 : SE9          :     512 nodes     766 edges    1532 nonzeros
         8 : SE10         :    1024 nodes    1533 edges    3066 nonzeros
         9 : SE11         :    2048 nodes    3070 edges    6140 nonzeros
        10 : SE12         :    4096 nodes    6141 edges   12282 nonzeros
        11 : SE13         :    8192 nodes   12286 edges   24572 nonzeros
        12 : SE14         :   16384 nodes   24573 edges   49146 nonzeros
        13 : SE15         :   32768 nodes   49150 edges   98300 nonzeros
    The primary graph (Problem.A) in this sequence is the last graph
    in the sequence.

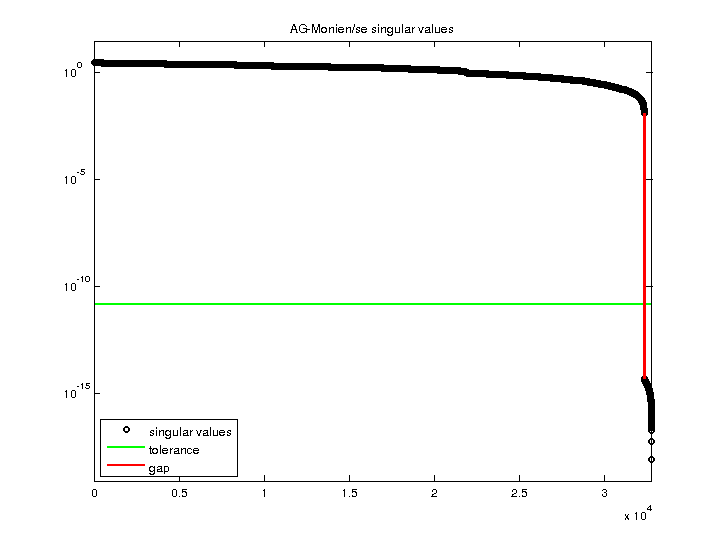

    SVD-based statistics:
    null space dimension457
    full numerical rank?no
    singular value gap2.42338e+12

    singular values (MAT file):click here
    SVD method used:s = svd (full (A))

    AG-Monien/se svd

    For a description of the statistics displayed above, click here.
