| Matrix properties | |
| number of rows | 9,506 |
| number of columns | 9,506 |
| nonzeros | 1,173,746 |
| structural full rank? | yes |
| structural rank | 9,506 |
| # of blocks from dmperm | 1 |
| # strongly connected comp. | 1 |
| entries not in dmperm blocks | 0 |
| explicit zero entries | 0 |
| nonzero pattern symmetry | symmetric |
| numeric value symmetry | symmetric |
| type | real |
| structure | symmetric |
| Cholesky candidate? | no |
| positive definite? | no |
| author | K. Nemeth |
| editor | T. Davis |
| date | 1999 |
| kind | subsequent theoretical/quantum chemistry problem |
| 2D/3D problem? | no |
Notes:
next: Nemeth/nemeth22 first: Nemeth/nemeth01
| Ordering statistics: | AMD | METIS |
| nnz(chol(P*(A+A'+s*I)*P')) | 621,655 | 1,430,732 |
| Cholesky flop count | 4.1e+07 | 2.2e+08 |
| nnz(L+U), no partial pivoting | 1,233,804 | 2,851,958 |
| nnz(V) for QR, upper bound nnz(L) for LU | 640,471 | 1,790,547 |
| nnz(R) for QR, upper bound nnz(U) for LU | 1,297,263 | 2,992,047 |
Maintained by Tim Davis, last updated 04-May-2008.

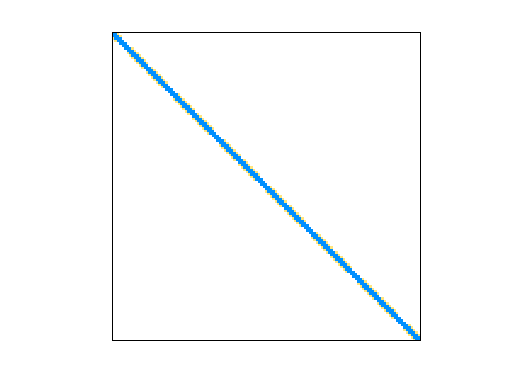

Matrix pictures by cspy, a MATLAB function in the CSparse package.
