Nemeth/nemeth16 graph

Matrix: Nemeth/nemeth16

Description: Newton-Schultz iteration, Z_k+1=Z_k+(1/2)*(I-(Z_k)^2)*Z_k. This is Z_16

  • UF Sparse Matrix Collection
  • Matrix group: Nemeth
  • Click here for a description of the Nemeth group.
  • Click here for a list of all matrices
  • Click here for a list of all matrix groups
  • download as a MATLAB mat-file, file size: 4 MB. Use UFget(780) or UFget('Nemeth/nemeth16') in MATLAB.
  • download in Matrix Market format
  • download in Rutherford/Boeing format

    Nemeth/nemeth16

    Matrix properties
    number of rows9,506
    number of columns9,506
    nonzeros587,012
    structural full rank?yes
    structural rank9,506
    # of blocks from dmperm1
    # strongly connected comp.1
    entries not in dmperm blocks0
    explicit zero entries0
    nonzero pattern symmetrysymmetric
    numeric value symmetrysymmetric
    typereal
    structuresymmetric
    Cholesky candidate?no
    positive definite?no

    authorK. Nemeth
    editorT. Davis
    date1999
    kindsubsequent theoretical/quantum chemistry problem
    2D/3D problem?no

    Notes:

    next: Nemeth/nemeth17 first: Nemeth/nemeth01

    Ordering statistics:AMD METIS
    nnz(chol(P*(A+A'+s*I)*P'))327,991 714,924
    Cholesky flop count1.1e+07 5.6e+07
    nnz(L+U), no partial pivoting646,476 1,420,342
    nnz(V) for QR, upper bound nnz(L) for LU331,793 915,401
    nnz(R) for QR, upper bound nnz(U) for LU658,515 1,530,555

    Maintained by Tim Davis, last updated 30-Sep-2008.

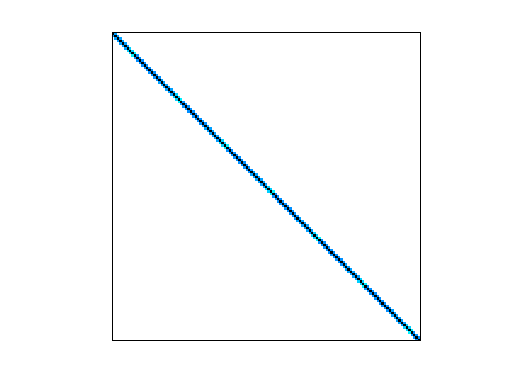

    Matrix pictures by cspy, a MATLAB function in the CSparse package.
    Matrix graphs by Yifan Hu, AT&T Labs Visualization Group.
