Matrix: Nemeth/nemeth11

Description: Newton-Schultz iteration, Z_k+1=Z_k+(1/2)*(I-(Z_k)^2)*Z_k. This is Z_11

Nemeth/nemeth11 graph
(undirected graph drawing)

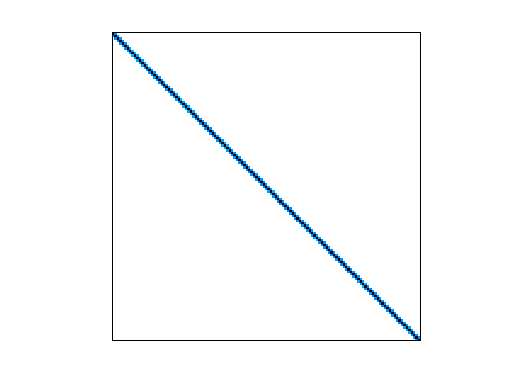

Nemeth/nemeth11

  • Home page of the UF Sparse Matrix Collection
  • Matrix group: Nemeth
  • Click here for a description of the Nemeth group.
  • Click here for a list of all matrices
  • Click here for a list of all matrix groups
  • download as a MATLAB mat-file, file size: 3 MB. Use UFget(775) or UFget('Nemeth/nemeth11') in MATLAB.
  • download in Matrix Market format, file size: 2 MB.
  • download in Rutherford/Boeing format, file size: 2 MB.

    Matrix properties
    number of rows9,506
    number of columns9,506
    nonzeros408,264
    structural full rank?yes
    structural rank9,506
    # of blocks from dmperm1
    # strongly connected comp.1
    explicit zero entries0
    nonzero pattern symmetrysymmetric
    numeric value symmetrysymmetric
    typereal
    structuresymmetric
    Cholesky candidate?no
    positive definite?no

    authorK. Nemeth
    editorT. Davis
    date1999
    kindsubsequent theoretical/quantum chemistry problem
    2D/3D problem?no

    Notes:

    next: Nemeth/nemeth12 first: Nemeth/nemeth01


    Ordering statistics:result
    nnz(chol(P*(A+A'+s*I)*P')) with AMD231,383
    Cholesky flop count5.7e+06
    nnz(L+U), no partial pivoting, with AMD453,260
    nnz(V) for QR, upper bound nnz(L) for LU, with COLAMD236,657
    nnz(R) for QR, upper bound nnz(U) for LU, with COLAMD470,331

    SVD-based statistics:
    norm(A)0.267536
    min(svd(A))0.0986707
    cond(A)2.71141
    rank(A)9,506
    sprank(A)-rank(A)0
    null space dimension0
    full numerical rank?yes

    singular values (MAT file):click here
    SVD method used:s = svd (full (A)) ;
    status:ok

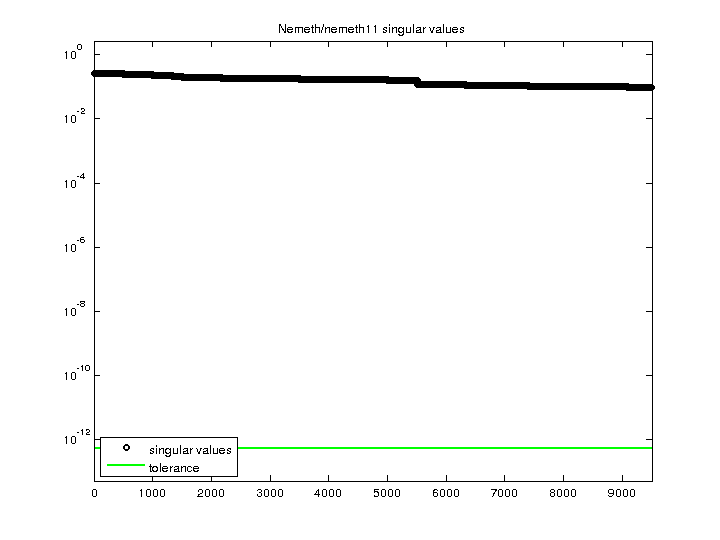

    Nemeth/nemeth11 svd

    For a description of the statistics displayed above, click here.
