Matrix: HB/lshp_778

Description: SYMMETRIC MATRIX FROM ALAN GEORGE'S L-SHAPE PROBLEMS, 1978.

HB/lshp_778 graph
(undirected graph drawing)

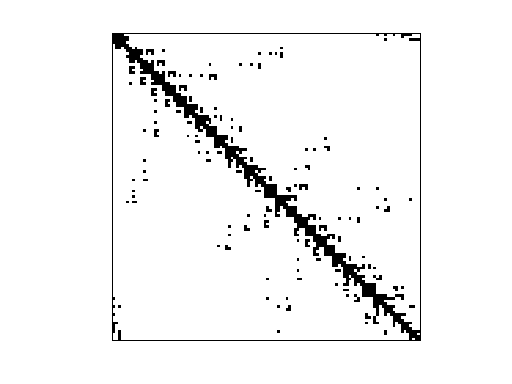

HB/lshp_778

  • Home page of the UF Sparse Matrix Collection
  • Matrix group: HB
  • Click here for a description of the HB group.
  • Click here for a list of all matrices
  • Click here for a list of all matrix groups
  • download as a MATLAB mat-file, file size: 7 KB. Use UFget(205) or UFget('HB/lshp_778') in MATLAB.
  • download in Matrix Market format, file size: 7 KB.
  • download in Rutherford/Boeing format, file size: 6 KB.

    Matrix properties
    number of rows778
    number of columns778
    nonzeros5,272
    structural full rank?yes
    structural rank778
    # of blocks from dmperm1
    # strongly connected comp.1
    explicit zero entries0
    nonzero pattern symmetrysymmetric
    numeric value symmetrysymmetric
    typebinary
    structuresymmetric
    Cholesky candidate?yes
    positive definite?no

    authorA. George
    editorI. Duff, R. Grimes, J. Lewis
    date1978
    kindthermal problem
    2D/3D problem?yes

    Ordering statistics:result
    nnz(chol(P*(A+A'+s*I)*P')) with AMD13,106
    Cholesky flop count3.2e+05
    nnz(L+U), no partial pivoting, with AMD25,434
    nnz(V) for QR, upper bound nnz(L) for LU, with COLAMD16,099
    nnz(R) for QR, upper bound nnz(U) for LU, with COLAMD29,848

    SVD-based statistics:
    norm(A)6.96083
    min(svd(A))0.00106625
    cond(A)6528.36
    rank(A)778
    sprank(A)-rank(A)0
    null space dimension0
    full numerical rank?yes

    singular values (MAT file):click here
    SVD method used:s = svd (full (A)) ;
    status:ok

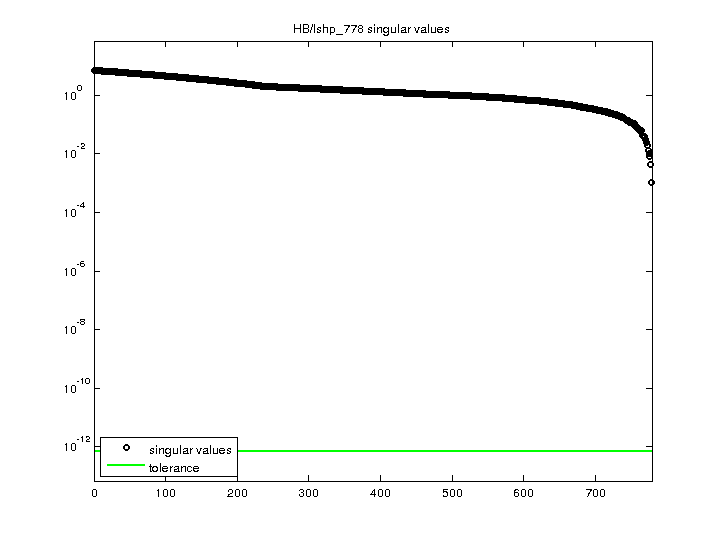

    HB/lshp_778 svd

    For a description of the statistics displayed above, click here.
